Mô tả sản phẩm

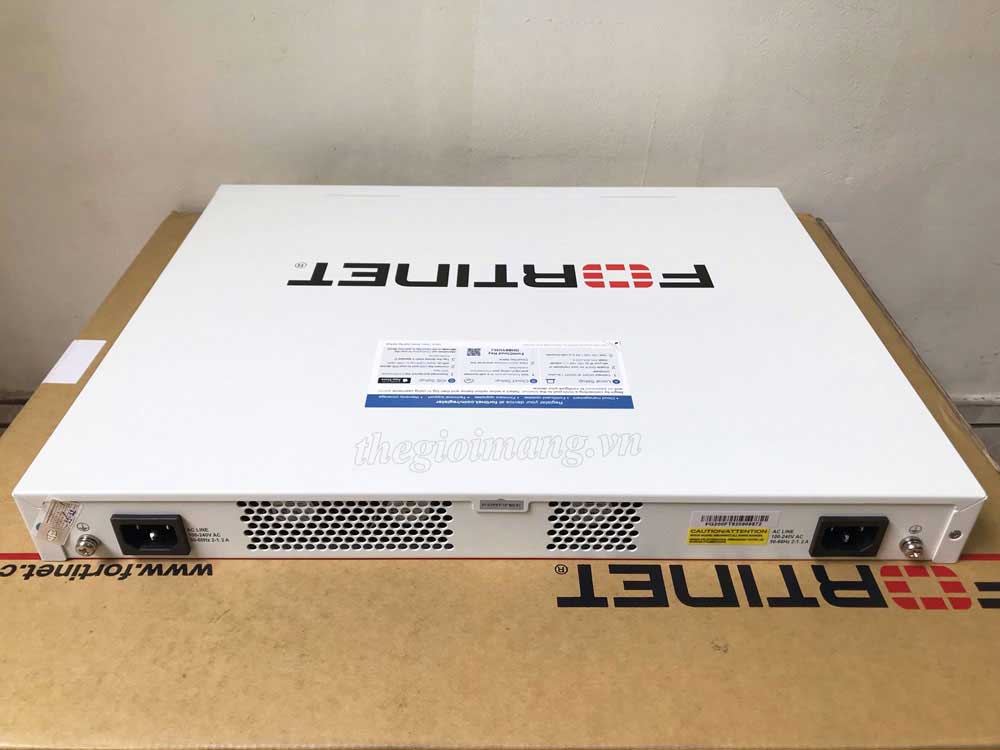

Thiết bị tường lửa Firewall FortiGate-201F (FG-201F)

● Recommended: for 201-300 User Network

● Internal Storage: 1x 480 GB SSD

● Threat Protection Throughput: 3 Gbps

● Site-to-Site VPN Tunnels: 2,500

● Concurrent Sessions: 3 million

Hardware plus 1 Year 24x7 FortiCare Contract (FG-201F)

- Hardware: 18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SoC4 and CP9 hardware accelerated, 480GB onboard SSD storage.
- 1 Year Hardware plus 24x7 FortiCare Contract (24x7 Enhanced Support, Hardware replacement, Firmware and General Upgrades, VPN, Traffic Management).

Tùy chọn Module quang SFP cho Firewall FortiGate 201F

1 GE SFP LX transceiver module	FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 transceiver module	FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX transceiver module	FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ RJ45 transceiver module	FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
10 GE SFP+ transceiver module, short range	FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ transceiver module, long range	FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ transceivers, extended range	FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.

Xem thêm

Thông số kỹ thuật

Mã sản phẩm	FortiGate 201F
Hardware Specifications
GE RJ45 Ports	16
GE RJ45 Management/HA	1 / 1
GE SFP Slots	8
10GE SFP+ FortiLink Slots (default)	2
10GE SFP+ Slots	2
USB Port	1
Console Port	1
Internal Storage	1 x 480 GB SSD
Trusted Platform Module (TPM)	Yes
Bluetooth Low Energy (BLE)	Yes
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel Mode)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (mm)	44 x 432 x 342
Form Factor (supports EIA / non-EIA standards)	Ear Mount, 1 RU
Weight	10.14 lbs (4.6 kg)
Environment
Power Required	100–240V AC, 50-60 Hz
Maximum Current	100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum)	104.52 W / 121.94 W
Heat Dissipation	436.98 BTU/h
Redundant Power Supplies	Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
Operating Temperature	32–104°F (0–40°C)
Operating Altitude	Up to 10 000 ft (3048 m)
Humidity	20–90% non-condensing
Noise Level	49.9 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6
