Name: Fortinet FG-40F-BDL-950-36
Brand: Fortinet
SKU: FG-40F-BDL-950-36
Rating: 5 (36 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

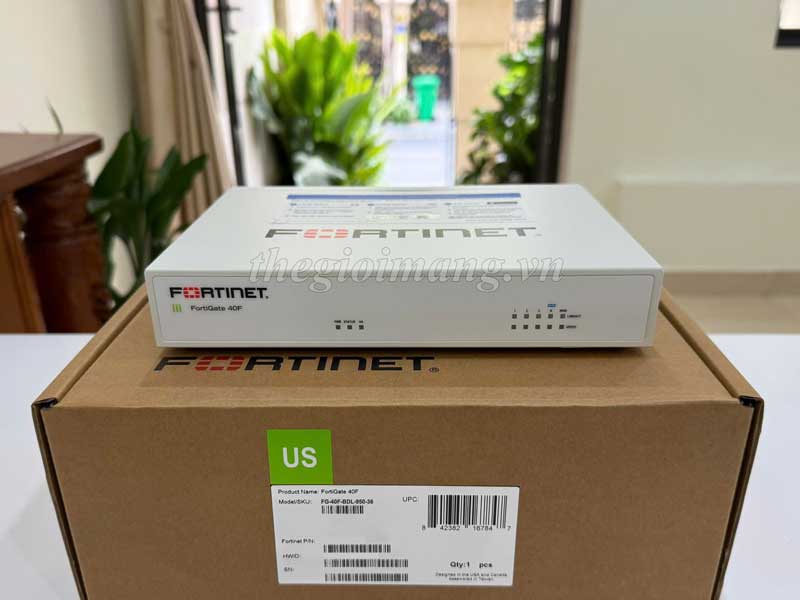

Thiết bị tường lửa Firewall FortiGate-40F (FG-40F-BDL-950-36)

Recommended: for 1-30 User Network
IPS Throughput: 1 Gbps
NGFW Throughput: 800 Mbps
Threat Protection Throughput: 600 Mbps
IPsec VPN Throughput: 4.4 Gbps
Concurrent Sessions: 700,000

Hardware plus 3 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-40F-BDL-950-36)

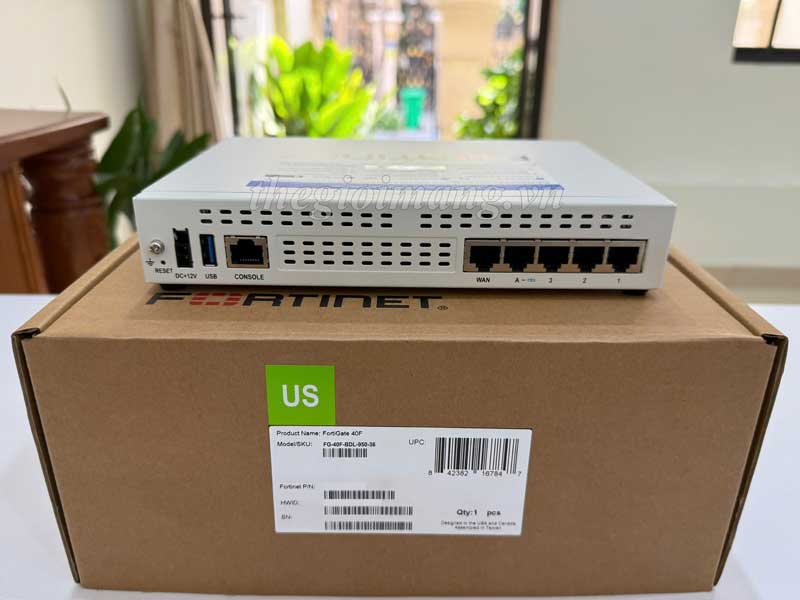

- Hardware: 5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports), Max managed FortiAPs (Total / Tunnel) 10 / 5.
- 3 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Tùy chọn phụ kiện Fortigate 40F

Rack Mount Tray	SP‑RACKTRAY‑02	Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP‑RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com
AC Power Adaptor	SP‑FG‑40F‑PA‑10(‑XX)	Pack of 10 AC power adaptors for FG/FWF‑40F, come with interchangeable power plugs. (XX=various countries code).
Wall Mount Kits	SP‑FG60F‑MOUNT‑20	Pack of 20 wall mount kits for FG/FWF‑40F series, FG/FWF‑60F series, FG‑80F, FG‑81F and FG‑80F‑Bypass.

Xem thêm

Thông số kỹ thuật

Mã Sản Phẩm	FG-40F-BDL-950-36
Interfaces and Modules
Hardware Accelerated GE RJ45 WAN / DMZ Ports	1
Hardware Accelerated GE RJ45 Internal Ports	3
Hardware Accelerated GE RJ45 FortiLink Ports (Default)	1
Hardware Accelerated GE RJ45 PoE/+ Ports	0
USB Ports	1
Console Port (RJ45)	1
System Performance — Enterprise Traffic Mix
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	5 / 5 / 5 Gbps
Firewall Latency (64 byte, UDP)	2.97 µs
Firewall Throughput (Packet per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700 000
New Sessions/Second (TCP)	35 000
Firewall Policies	2000
IPsec VPN Throughput (512 byte) ¹	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput ⁶	490 Mbps
Concurrent SSL-VPN Users ⁶ (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS) ²	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) ²	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS) ²	55 000
Application Control Throughput (HTTP 64K) ²	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10-Oct
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel)	16 / 8
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor (supports EIA/non-EIA standards)	Desktop
Input Rating	12Vdc, 3A
Power Required	Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Current (Maximum)	100V AC / 0.2A, 240V AC / 0.1A
Power Consumption (Average / Maximum)	7.74 W / 9.46 W
Heat Dissipation	52.55 BTU/h
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7400 ft (2250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6
