Recommended: for 600-800 User Network
Threat Protection Throughput: 10.5 Gbps
Site-to-Site VPN Tunnels: 2,000
Concurrent Sessions: 7.8 million
Onboard Storage: 2x 240 GB SSD
1 Year Services: 24x7 FortiCare Contract & FortiGuard Unified Threat Protection (UTP)

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

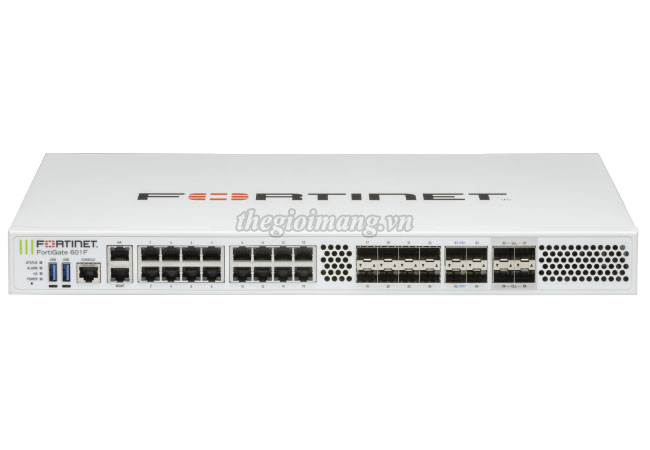

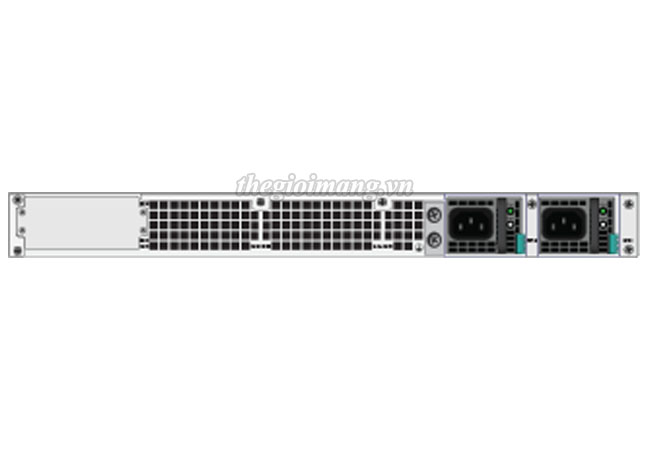

Thiết bị tường lửa Firewall Fortinet FortiGate-601F (FG-601F-BDL-950-12)

Mã sản phẩm	FG-601F-BDL-950-12
Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces	16
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 25GE SFP28/ 10GE SFP+/ GE SFP Ultra Low Latency Slots	4
GE RJ45 MGMT/HA Ports	2
USB Port	2
RJ45 Console Port	1
Onboard Storage	2 x 240 GB SSD
Included Transceivers	2 x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput	14 Gbps
NGFW Throughput	11.5 Gbps
Threat Protection Throughput	10.5 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	139 / 137.5 / 70 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)	139 / 137.5 / 70 Gbps
Firewall Latency (64 byte, UDP)	4.12 μs
Firewall Throughput (Packets Per Second)	105 Mpps
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	550,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	4.3 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	2500
SSL Inspection Throughput (IPS, avg. HTTPS)	9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	7500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	840 000
Application Control Throughput (HTTP 64K)	32 Gbps
CAPWAP Throughput (HTTP 64K)	TBA
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	96
Maximum Number of FortiAPs (Total / Tunnel Mode)	1024 / 512
Maximum Number of FortiTokens	5000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	16.2 lbs (7.35 kg)
Form Factor	Rack Mount, 1 RU
AC Power Consumption (Average / Maximum)	174 W / 260 W
AC Power Input	100–240V AC, 50/60Hz
AC Current (Maximum)	6A@100V
Heat Dissipation	888 BTU/h
Redundant Power Supplies (Hot Swappable)	Yes
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	5–90% non-condensing
Noise Level	55 dBA
Airflow	Side and Front to Back
Operating Altitude	Up to 7400 ft (2250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Tùy chọn Module quang SFP cho Firewall FortiGate 601F

1 GE SFP LX Transceiver Module	FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 Transceiver Module	FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX Transceiver Module	FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ RJ45 Transceiver Module	FN-TRAN-SFP+GC	10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
10 GE SFP+ Transceiver Module, Short Range	FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Long Range	FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Extended Range	FN-TRAN-SFP+ER	10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.
AC Power Supply	SP-FG400F-PS	AC power supply for FG-400/401F, FG-600/601F, power cable SP-FGPCOR-XX sold separately

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-601F-BDL-950-12)

- Hardware: 4x 25G SFP28 slots, 4 x 10GE SFP+ slots, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, SPU NP7 and CP9 hardware accelerated, 480GB onboard SSD storage, dual AC power supplies.

- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Data sheet Fortinet FortiGate 600F Series
