Mô tả sản phẩm

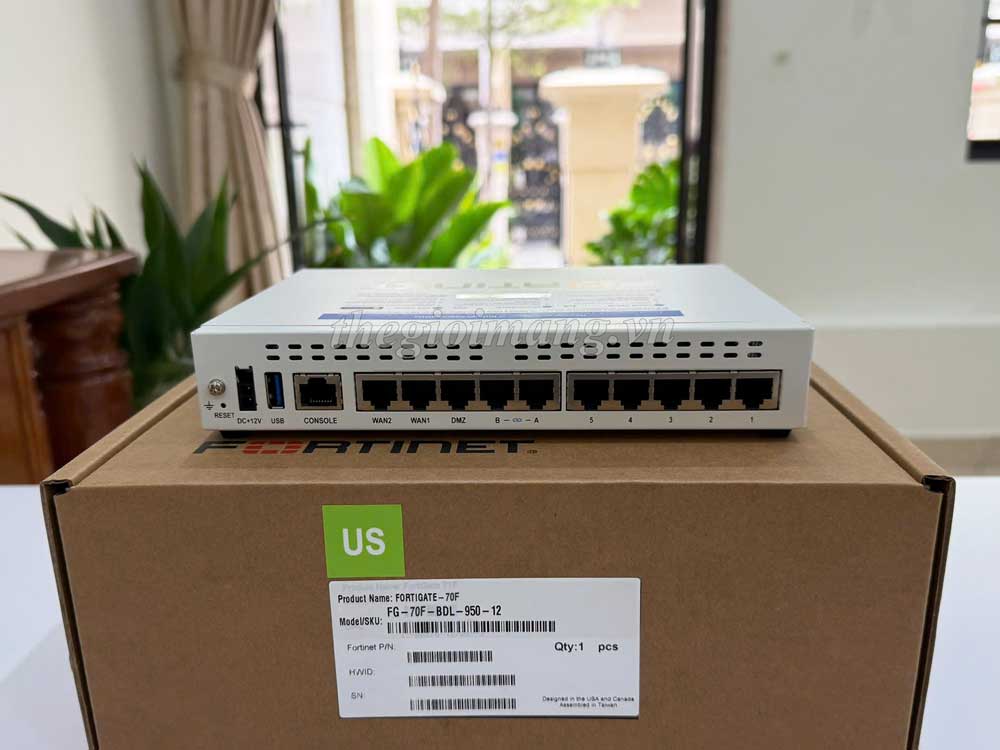

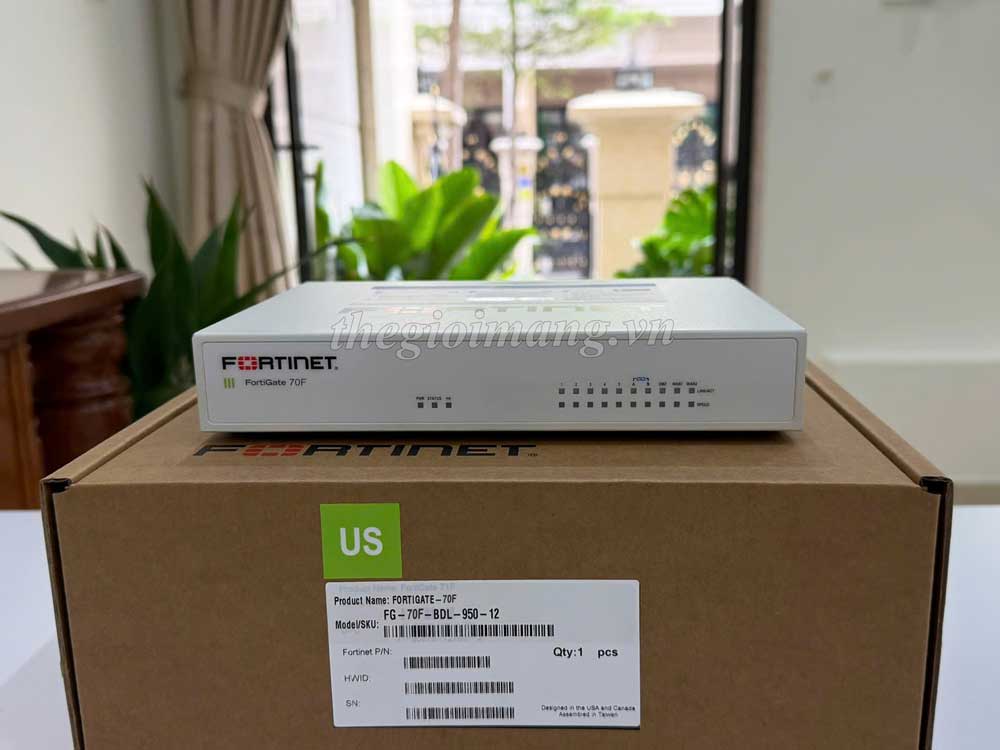

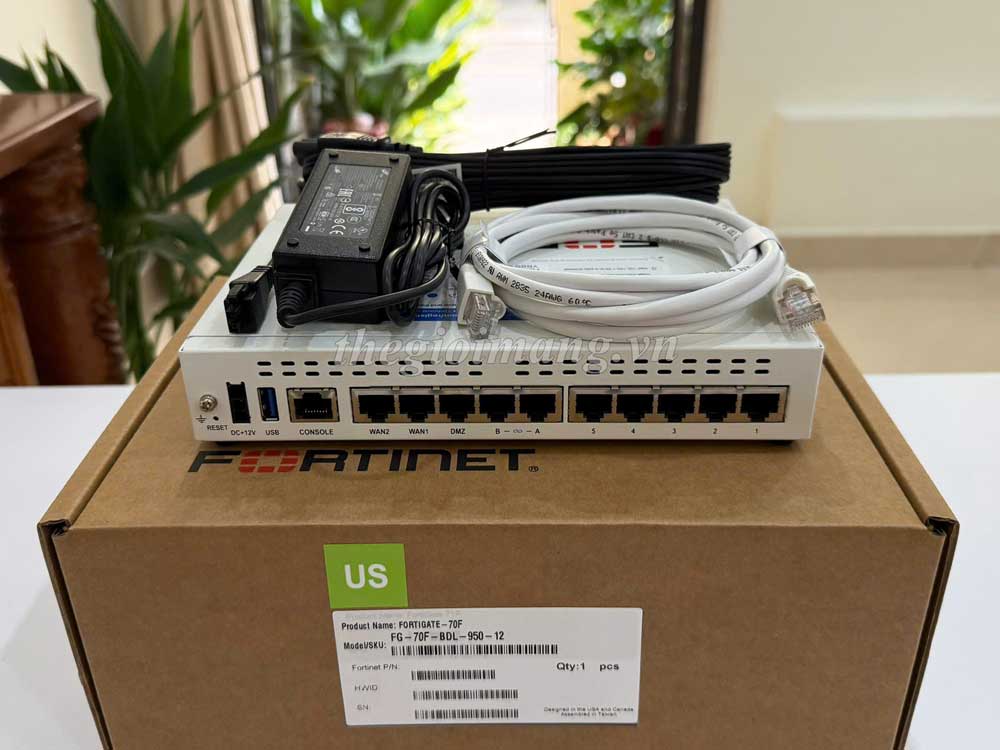

Thiết bị tường lửa Firewall Fortinet FortiGate-70F (FG-70F-BDL-950-12)

Mã sản phẩm	FG-70F-BDL-950-12
Hardware Specifications
GE RJ45 WAN / DMZ Ports	2 / 1
GE RJ45 Internal Ports	5
GE RJ45 FortiLink Ports (Default)	2
USB Ports	1
Console (RJ45)	1
Internal Storage	-
Trusted Platform Module (TPM)	No
Bluetooth Low Energy (BLE)	No
System Performance — Enterprise Traffic Mix
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	800 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	10/10/6 Gbps
Firewall Latency (64 byte UDP packets)	2.54 μs
Firewall Throughput (Packets Per Second)	9 Mpps
Concurrent Sessions (TCP)	1.5 M
New Sessions/Second (TCP)	35 000
Firewall Policies	5 000
IPsec VPN Throughput (512 byte)	6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	405 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTP)	700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	100,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
CAPWAP Throughput (HTTP 64K)	8.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	500
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160 mm
Weight	2.23 lbs (1.01 kg)
Form Factor	Desktop
Operating Environment and Certifications
Power Rating	12VDC, 3A
Power Required	Powered by External DC Power Adapters, 100–240V AC, 50/60 Hz
Maximum Current	100VAC/1.0A, 240VAC/0.6A
Power Consumption (Average / Maximum)	10.17 W / 12.43 W
Heat Dissipation	63.1 BTU/hr
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Các phụ kiện và Module dùng với FortiGate 70F

Accessories	SKU	Description
Rack Mount Tray	SP-RACKTRAY-02	Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01
AC power adaptor	SP-FG60E-PDC-5	Pack of 5 AC power adaptors for G/FWF 60E/61E, FG/FWF 60F/61F, FG-70F/71F, and FG-80E/81E
Wall Mount Kit	SP-FG60F-MOUNT-20	Pack of 20 wall mount kits for G/FWF-60F, FG-70F/71F and FG/FWF-80F series

Xem thêm

Thông số kỹ thuật

Hardware Plus Forticare Premium and Fortiguard UTP - 1 Year Subscription (FG-70F-BDL-950-12)
- Hardware: 10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port)
- 1 Year Hardware plus 24x7 FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)

Data sheet Firewall Fortinet FortiGate 70F Series

Xem thêm thông số kỹ thuật
