Mô tả sản phẩm

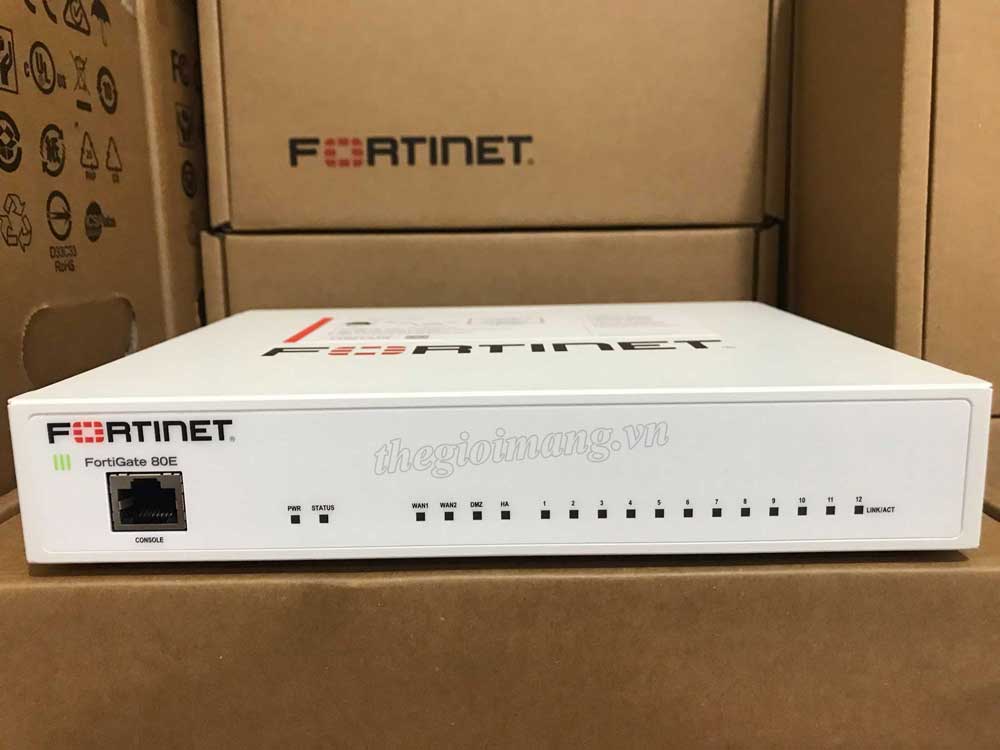

Thiết bị tường lửa Firewall Fortinet FortiGate-80E (FG-80E-BDL-950-12)

Mã sản phẩm	FG-80E-BDL-950-12
Hardware Specifications
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Ports	12
GE RJ45 PoE/+ Ports	-
GE RJ45 DMZ/HA Ports	2
USB Ports	1
Console (RJ45)	1
Internal Storage	-
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	6Mpps
Concurrent Sessions (TCP)	1.3 Milion
New Sessions/Second (TCP)	30,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte) ¹	2.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	200 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, HTTP) ³	180 Mbps
Application Control Throughput (HTTP 64K) ²	900 Mbps
CAPWAP Throughput (HTTP 64K)	920 Mbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	32 / 16
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput ²	1.5 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput ²	450 Mbps
NGFW Throughput ^{2, 4}	360 Mbps
Threat Protection Throughput ^{2, 5}	250 Mbps
Dimensions
Height x Width x Length (inches)	1.65 x 8.5 x 7
Height x Width x Length (mm)	42 x 216 x 178
Weight	2.65 lbs (1.2 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 50–60 Hz
Maximum Current	100V AC / 0.65A, 240V AC / 0.29A
Total Available PoE Power Budget*	N/A
Power Consumption (Average / Maximum)	20 W / 70 W
Heat Dissipation	238.85 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 16,404 ft (5,000 m)
Compliance	FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Xem thêm

Thông số kỹ thuật

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-80E-BDL-950-12)

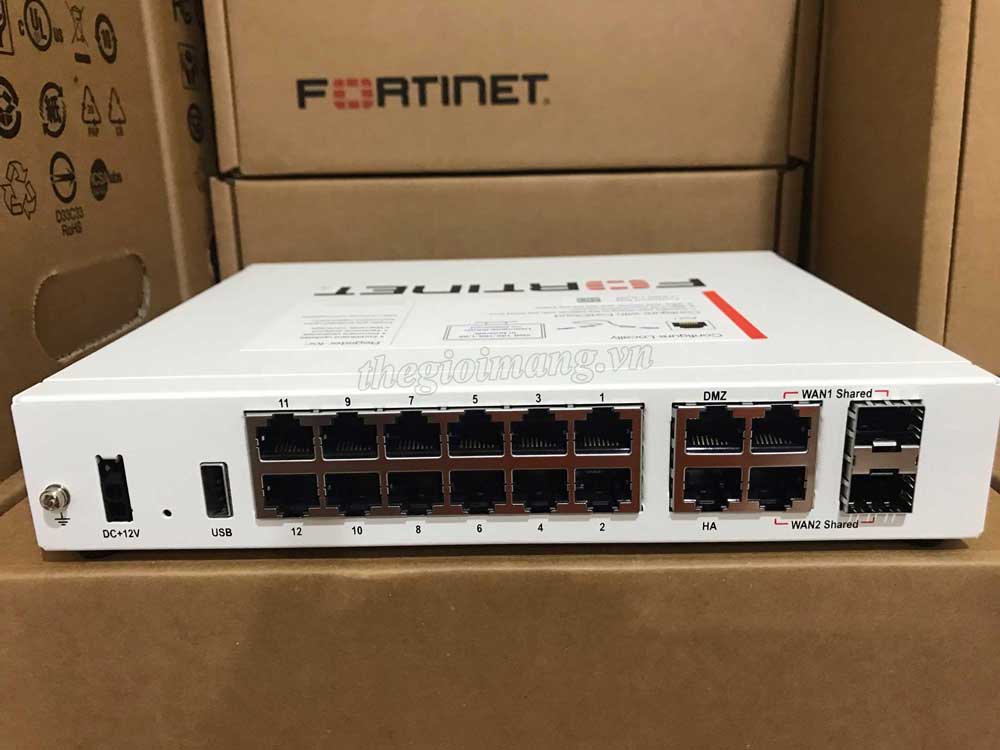

- Hardware: 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots).
- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Data sheet Fortinet FortiGate 80E

Xem thêm thông số kỹ thuật

Bạn đang cần tư vấn về sản phẩm FortiGate 80E UTP 1 Year (FG-80E-BDL-950-12)
