Trang chủ > Sản phẩm > Thiết bị mạng Fortinet > Firewall FortiGate > FortiGate 80F UTP 1 Year (FG-80F-BDL-950-12)

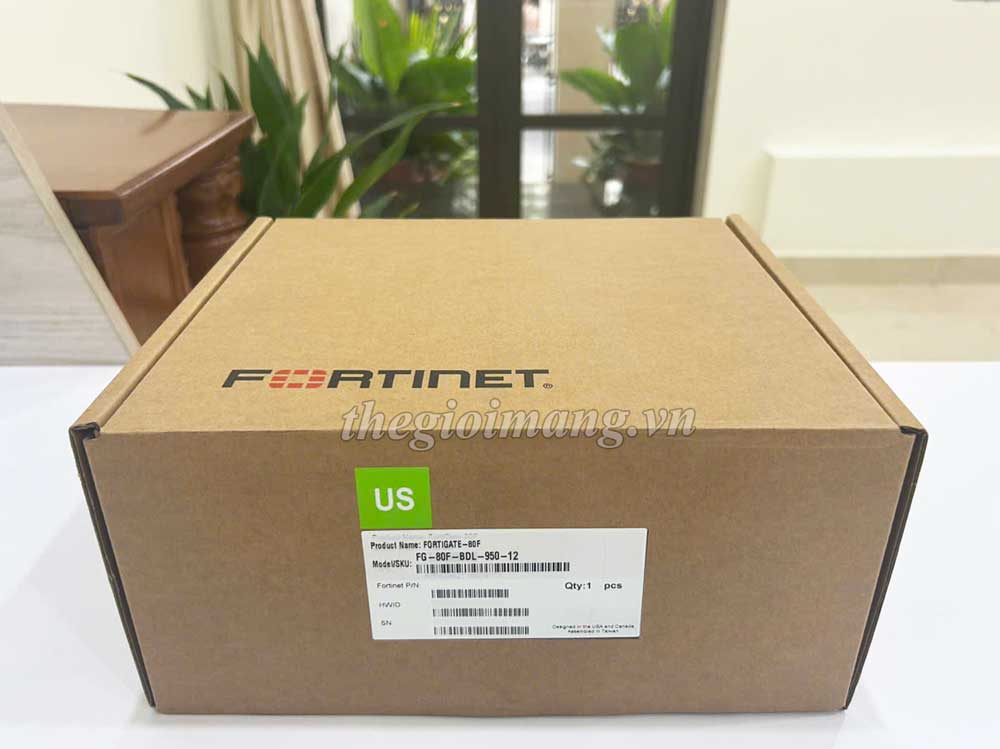

FortiGate 80F UTP 1 Year (FG-80F-BDL-950-12)

FG-80F-BDL-950-12 thiết bị tường lửa Fortinet FortiGate 80F Plus 1 Year 24x7 Forticare and Fortiguard UTP

  • Recommended: for 51-100 User Network
  • Threat Protection Throughput: 900 Mbps
  • Site-to-Site VPN Tunnels: 200
  • Concurrent Sessions: 1,500,000
  • 1 Year Services: 24x7 FortiCare Contract & FortiGuard Unified Threat Protection (UTP)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall Fortinet FortiGate-80F (FG-80F-BDL-950-12)

Mã sản phẩm FG-80F-BDL-950-12
Hardware Specifications
GE RJ45/SFP Shared Media Pairs  2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) -
USB Ports 3.0 1
Console (RJ45)  1
Internal Storage  -
System Performance — Enterprise Traffic Mix
IPS Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 900 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)  10/10/7 Gbps
Firewall Latency (64 byte UDP packets)  3.23 μs
Firewall Throughput (Packets Per Second)  10.5 Mpps
Concurrent Sessions (TCP)  1.5 Million
New Sessions/Second (TCP)  45,000
Firewall Policies  5,000
IPsec VPN Throughput (512 byte) 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels  200
Client-to-Gateway IPsec VPN Tunnels  2,500
SSL-VPN Throughput  950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)  200
SSL Inspection Throughput (IPS, HTTP) 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 700
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 100,000
Application Control Throughput (HTTP 64K) 1.8 Gbps
CAPWAP Throughput (HTTP 64K)  9 Gbps
Virtual Domains (Default / Maximum)  10 / 10
Maximum Number of Switches Supported  16
Maximum Number of FortiAPs (Total / Tunnel Mode)  96 / 48
Maximum Number of FortiTokens  500
High Availability Configurations  Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)  1.6 x 8.5 x 7.0
Height x Width x Length (mm)  40 x 216 x 178
Weight  2.4 lbs (1.1 kg)
Form Factor  Desktop / Wall Mount / Rack Tray
Operating Environment and Certifications
Input Rating Dual power 12Vdc, 3A
Power Required  Powered by 2 External DC Power Adapters, 100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum)  12.6W / 15.4W
Heat Dissipation  52.55 BTU/h
Operating Temperature  32–104°F (0–40°C)
Storage Temperature  -31–158°F (-35–70°C)
Humidity  10–90% non-condensing
Noise Level   Fanless 0 dBA
Operating Altitude  Up to 7,400 ft (2,250 m)
Compliance  FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications  ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Các phụ kiện và Module dùng với FortiGate 80F

Accessories SKU Description
AC power adaptor SP-FG60E-PDC-5 Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
Rack Mount Tray SP-RACKTRAY-02 Rack mount tray for all FortiGate E series and F series desktop models
Wall Mount Kit SP-FG60F-MOUNT-20 Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
Transceivers SKU Description
1 GE SFP RJ45 Transceiver Module FN-TRAN-GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX Transceiver Module FN-TRAN-SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP LX Transceiver Module FN-TRAN-LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-80F-BDL-950-12)
- Hardware: 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports
- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Data sheet Firewall Fortinet FortiGate 80F Series
