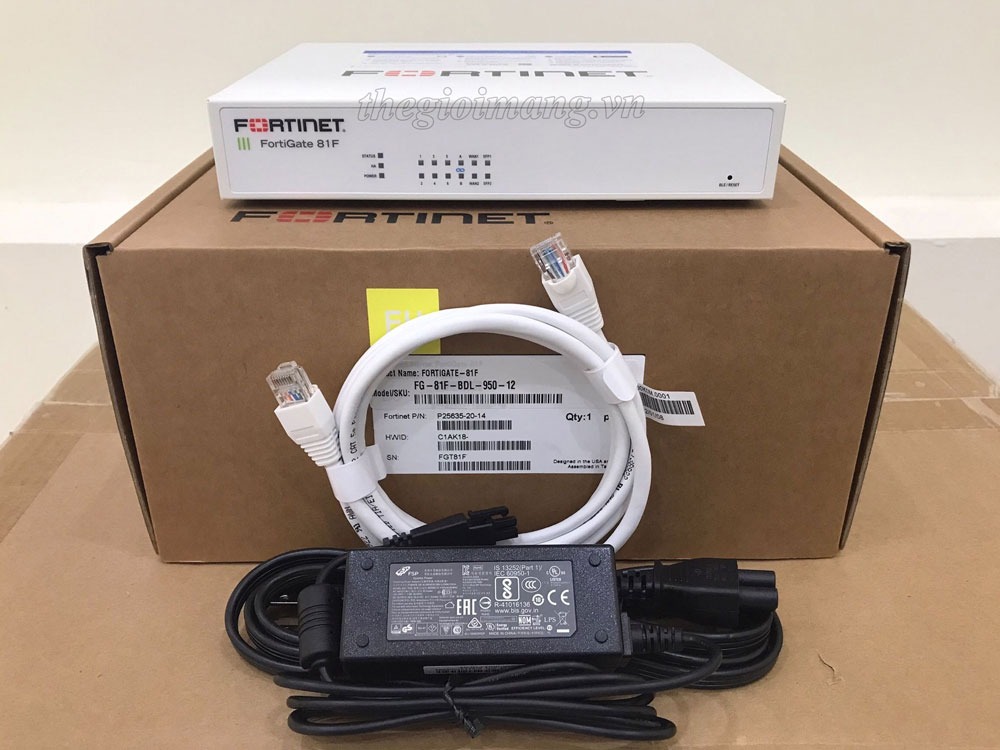

FortiGate 81F UTP 1 Year (FG-81F-BDL-950-12)

FG-81F-BDL-950-12 thiết bị tường lửa Fortinet FortiGate 81F Plus 1 Year 24x7 Forticare and Fortiguard UTP

  • Recommended: for 51-100 User Network
  • Internal Storage: 1x 128 GB SSD
  • Threat Protection Throughput: 900 Mbps
  • Site-to-Site VPN Tunnels: 200
  • Concurrent Sessions: 1,500,000
  • 1 Year Services: 24x7 FortiCare Contract & FortiGuard Unified Threat Protection (UTP)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall Fortinet FortiGate 81F (FG-81F-BDL-950-12)

Mã sản phẩm FG-81F-BDL-950-12
Hardware Specifications
GE RJ45/SFP Shared Media Pairs  2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) -
USB Ports 3.0 1
Console (RJ45)  1
Internal Storage  128GB
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 900 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)  10/10/7 Gbps
Firewall Latency (64 byte UDP packets)  3.23 μs
Firewall Throughput (Packets Per Second)  10.5 Mpps
Concurrent Sessions (TCP)  1.5 Million
New Sessions/Second (TCP)  45,000
Firewall Policies  5,000
IPsec VPN Throughput (512 byte) 1 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels  200
Client-to-Gateway IPsec VPN Tunnels  2,500
SSL-VPN Throughput  950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)  200
SSL Inspection Throughput (IPS, HTTP) 3 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3 700
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 100,000
Application Control Throughput (HTTP 64K) 2 1.8 Gbps
CAPWAP Throughput (HTTP 64K)  9 Gbps
Virtual Domains (Default / Maximum)  10 / 10
Maximum Number of Switches Supported  16
Maximum Number of FortiAPs (Total / Tunnel Mode)  32 / 16
Maximum Number of FortiTokens  500
High Availability Configurations  Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)  1.5 x 8.5 x 6.3
Height x Width x Length (mm)  38.5 x 216 x 160
Weight  1.1 lbs (2.4 kg)
Form Factor  Desktop / Wall Mount / Rack Tray
Operating Environment and Certifications
Input Rating Dual power 12Vdc, 3A
Power Required  Powered by 2 External DC Power Adapters, 100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum)  13.5W / 16.5W
Heat Dissipation  56.30 BTU/h
Operating Temperature  32–104°F (0–40°C)
Storage Temperature  -31–158°F (-35–70°C)
Humidity  10–90% non-condensing
Noise Level    Fanless 0 dBA
Operating Altitude  Up to 7,400 ft (2,250 m)
Compliance  FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications  ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Các phụ kiện và Module dùng với FortiGate 81F

Accessories SKU Description
AC power adaptor SP-FG60E-PDC-5 Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
Rack Mount Tray SP-RACKTRAY-02 Rack mount tray for all FortiGate E series and F series desktop models
Wall Mount Kit SP-FG60F-MOUNT-20 Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
Transceivers SKU Description
1 GE SFP RJ45 Transceiver Module FN-TRAN-GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX Transceiver Module FN-TRAN-SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP LX Transceiver Module FN-TRAN-LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-81F-BDL-950-12)
- Hardware: 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, 128GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 32 / 16;
- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Data sheet Fortinet FortiGate 81F Series
