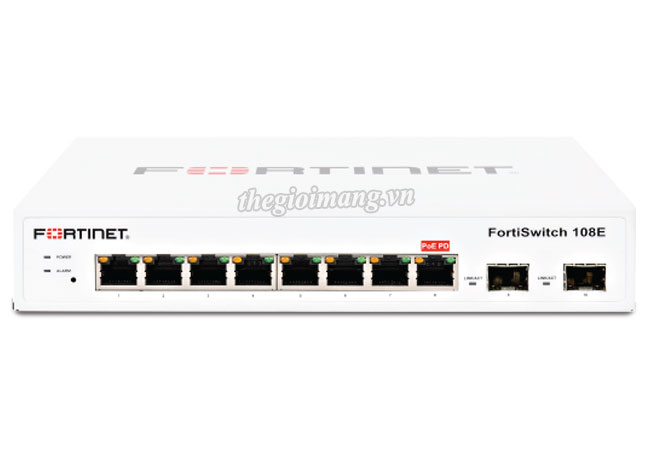

Thiết bị chuyển mạch Fortinet FortiSwitch 108E (FS-108E)
Mã sản phẩm | FS-108E |
Hardware Specifications | |
Total Network Interfaces | 7x GE RJ45, 1x GE/POE-PD RJ45 and 2x GE SFP |
Dedicated Management 10/100 Port | 0 |
RJ-45 Serial Console Port | 1 |
Form Factor | Desktop |
Power over Ethernet (PoE) Ports | 0 |
PoE Power Budget | 0 |
Mean Time Between Failures | > 10 years |
System Specifications | |
Switching Capacity (Duplex) | 20 Gbps |
Packets Per Second (Duplex) | 30 Mpps |
MAC Address Storage | 8 K |
Network Latency | 4µs |
VLANs Supported | 4 K |
Link Aggregation Group Size | 8 |
Total Link Aggregation Groups | 8 |
Packet Buffers | 512 KB |
DRAM | 256 MB DDR3 |
FLASH | 32 MB |
Dimensions | |
Height x Depth x Width (inches) | 1.5 x 6.3 x 8.7 |
Height x Depth x Width (mm) | 38 x 160 x 220 |
Weight | 2.2 lbs (1 kg) |
Environment | |
Power Required | 100–240V AC, 50–60 Hz / PoE-PSE(af) |
Power Supply | AC & PoE-PD Built in |
Redundant Power | - |
Power Consumption (Average / Maximum) | 5.54 W / 6.26 W |
Heat Dissipation | 18.9 BTU/h |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -40–158°F (-40–70°C) |
Humidity | 10–90% non-condensing |
Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Tùy chọn Module quang SFP Fortinet sử dụng cho FortiSwitch 108E (FS-108E)
Product |
SKU |
Description |
1 GE SFP LX transceiver module |
FG-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
1 GE SFP RJ45 transceiver module |
FG-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
1 GE SFP SX transceiver module |
FG-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
1 GE SFP RJ45 transceiver module |
FS-TRAN-GC |
1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots |
1 GE SFP SX transceivers, MMF, -40–85°C operation |
FR-TRAN-SX |
1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots |
1 GE SFP LX transceivers, SMF, -40–85°C operation |
FR-TRAN-LX |
1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots |
1 GE SFP transceivers, 90 km range, -40–85°C operation |
FR-TRAN-ZX |
1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots |
