FS-2048F : Layer 2/3 FortiGate switch controller compatible switch with 48x 25G SFP28 + 8x 100G QSFP28 + 2x 10G SFP+. Dual AC power supplies.

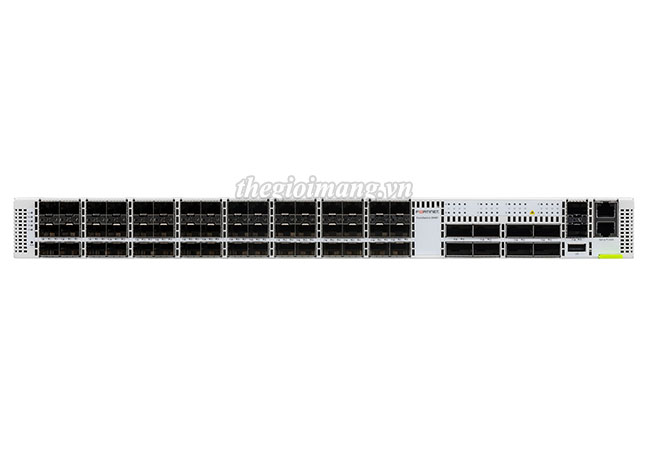

Thiết bị chuyển mạch Fortinet FortiSwitch 2048F (FS-2048F)
| Mã sản phẩm | FS-2048F |
| Hardware Specifications | |
| Total Network Interfaces | 48x 1GE/10GE/25GE SFP28 ports 2x 1GE/10GE SFP+ ports 8x 40GE / 100GE QSFP28 ports |
| 10/100/1000 Service Ports | 1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| System Specifications | |
| Switching Capacity (Duplex) | 4000 Gbps |
| Packets Per Second (Duplex) 54 bytes | 4000 Mpps |
| MAC Address Storage | 96k |
| Network Latency | < 1 μs |
| VLANs Supported | 4k |
| IPv4/IPv6 Routing | Yes |
| Link Aggregation Group Size | Up to 48 |
| Total Link Aggregation Groups | Up to number of ports |
| Queues/Port | 8 |
| Packet Buffers | 32 MB |
| Memory | 8GB DDR4 |
| Flash | 8GB NAND |
| Drive | 32GB SSD |
| Dimensions | |
| Height x Depth x Width (inches) | 1.71 x 18.11 x 17.26 |
| Height x Depth x Width (mm) | 43.5 x 460 x 438.5 |
| Weight | 21.78 lbs (9.88 kg) |
| Environment | |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Consumption (Maximum) | 175,7 W |

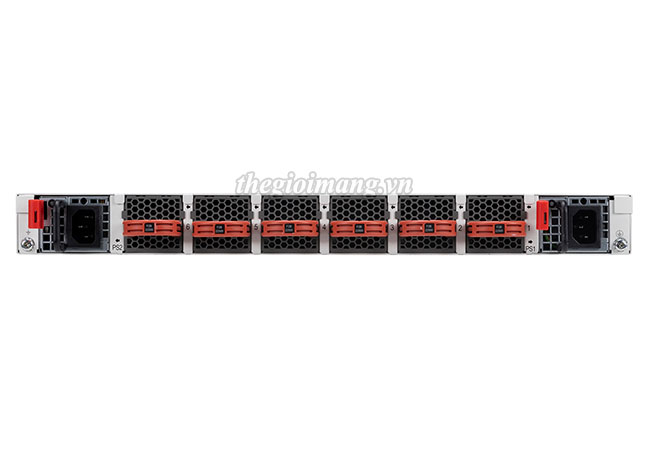

| Power Supply | Dual hot swappable AC |
| Heat Dissipation | 406 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -13–158°F (-25–70°C) |
| Humidity | 10–90% non-condensing |
| Air Flow | Front to back |
| Noise Level | 69.36 dBA |
| Mean Time Between Failures | > 10 years |
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Tùy chọn License và Phụ kiện cho FortiSwitch 2048F
| Products (SKU) | |
| FortiLAN Cloud Management License • FC-10-FSW30-628-02-DD |
FortiSwitch 1000 Series and Above FortiLAN Cloud Management SKU Including Forticare 24x7. Note, FortiCare only applicable when used with FortiLAN Cloud. |
| FortiGate Cloud Management • FC-10-0030E-131-02-DD |
FortiGate Cloud Management, Analysis and 1 Year Log Retention |
| FortiSwitchManager Subscription License • FC1-10-SWMVM-258-01-DD • FC2-10-SWMVM-258-01-DD • FC3-10-SWMVM-258-01-DD |
Subscription license for 10/100/1000 FortiSwitch Units managed by FortiSwitchManager VM. 24x7 FortiCare support (for FSWM VM) included. |
| FortiSwitch Advanced Features License • FS-SW-LIC-2000 |
SW License for FS-2000 Series Switches to activate Advanced Features. |
