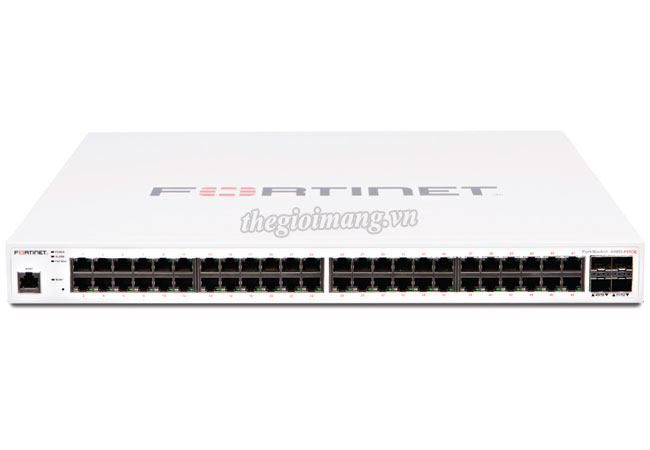

FS-448D-FPOE: Fortinet FortiSwitch 448D-FPOE Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 GE RJ45 + 4x 10 GE SFP+ ports, 48 port PoE with maximum 740 W limit.
Thiết bị chuyển mạch Fortinet FortiSwitch 448D-FPoE (FS-448D-FPoE)
| Mã sản phẩm | FS-448D-FPoE |
| Hardware Specifications | |
| Total Network Interfaces | 48x GE RJ45 and 4x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP |
| Dedicated Management 10/100 Port | 1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 48 (802.3af/at) |
| PoE Power Budget | 740 W |
| Mean Time Between Failures | > 10 years |
| System Specifications | |
| Switching Capacity (Duplex) | 176 Gbps |
| Packets Per Second (Duplex) | 262 Mpps |
| MAC Address Storage | 16 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 1.5 MB |
| DRAM | 1 GB |
| FLASH | 128 MB |
| Dimensions | |
| Height x Depth x Width (inches) | 1.73 x 16.1 x 17.3 |
| Height x Depth x Width (mm) | 44 x 410 x 440 |
| Weight | 15.45 lbs (7.01 kg) |
| Environment | |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Supply | AC Built in |
| Redundant Power | Dual power supplies |
| Power Consumption (Average / Maximum) | 790 W / 792 W |
| Heat Dissipation | 193 BTU/h |
| Operating Temperature | 32–122°F (0–50°C) |
| Storage Temperature | -4–158°F (-20–70°C) |
| Humidity | 10–90% non-condensing |
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Tùy chọn Module quang SFP Fortinet sử dụng cho FortiSwitch 448D-FPoE (FS-448D-FPoE)
|
Product |
SKU |
Description |
|
1 GE SFP LX transceiver module |
FG-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP RJ45 transceiver module |
FG-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP SX transceiver module |
FG-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP RJ45 transceiver module |
FS-TRAN-GC |
1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots |
|
1 GE SFP SX transceivers, MMF, -40–85°C operation |
FR-TRAN-SX |
1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP LX transceivers, SMF, -40–85°C operation |
FR-TRAN-LX |
1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP transceivers, 90 km range, -40–85°C operation |
FR-TRAN-ZX |
1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots |
|
10 GE SFP+ transceiver module, short range |
FG-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
|
10 GE XFP transceiver module, short range |
FG-TRAN-XFPSR |
10 GE XFP transceiver module, short range for all systems with XFP slots |
|
10 GE SFP+ transceiver module, long range |
FG-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
|
10 GE XFP transceiver module, long range |
FG-TRAN-XFPLR |
10 GE XFP transceiver module, long range for all systems with XFP slots |
|
10 GE SFP+ active direct attach cable, 10m / 32.8 ft |
SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
|
10 GE copper SFP+ transceiver module, up to 30m |
FS-TRAN-SFP+GC |
10 GE copper SFP+ RJ45 transceiver, up to 30m |
|
10 GE SFP+ transceiver module, short range |
FS-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for SFP/SFP+ slots |
|
10 GE SFP+ transceivers, extended range |
FS-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for Fortinet systems with SFP+ slots |
|
10 GE SFP+ transceivers, long range multimode |
FS-TRAN-SFP+LRM |
10 GE SFP+ transceiver module, long range multimode for Fortinet systems with SFP+ slots |
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+1 |
10 GE SFP+ passive direct attach cable, 1 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach Cable |
SP-CABLE-FS-SFP+3 |
10 GE SFP+ passive direct attach cable, 3 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+5 |
10 GE SFP+ passive direct attach cable, 5 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+7 |
10 GE SFP+ passive direct attach cable, 7 m for systems with SFP+ and SFP/SFP+ slot |
