FWF-80F-2R-BDL-950-12 thiết bị tường lửa Fortinet FortiWiFi 80F-2R Plus 1 Year 24x7 Forticare and Fortiguard UTP

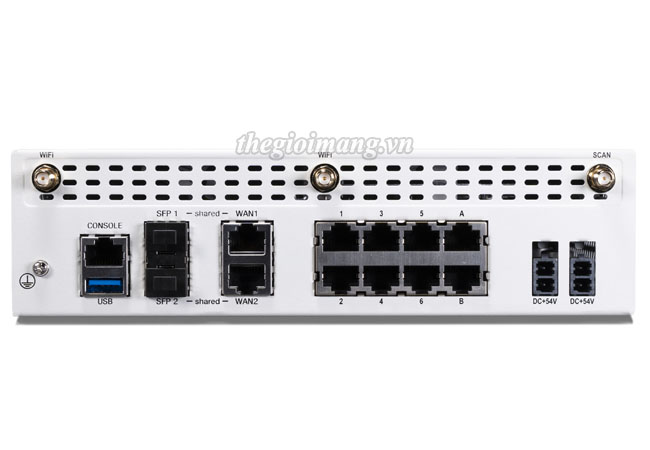

Thiết bị tường lửa Firewall Fortinet FortiWiFi-80F-2R (FWF-80F-2R-BDL-950-12)
| Mã sản phẩm | FWF-80F-2R-BDL-950-12 |
| Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45 PoE/+ Ports | - |
| GE RJ45 PoE/+ FortiLink Ports (Default) | - |
| Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) | - |
| Wireless Interface | Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Radio Specifications | |
| Multiple User (MU) MIMO | 2x2 |
| Maximum Wi-Fi Speeds | 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz |
| Maximum Tx Power | 23 dBm @ 2.4 GHz, 22 dBm @ 5 GHz |
| Antenna Gain | 4.5dBi @ 2.4Ghz, 5.5dBi @ 5GHz |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, HTTP) | 715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 100,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 2.4 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 60 x 216 x 178 |
| Weight | 3.3 lbs (1.5 kg) |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Operating Environment and Certifications | |
| Input Rating | 12V DC, 5A (dual redundancy optional) |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current | 115VAC/0.42A, 230VAC/0.21A |
| Total Available PoE Power Budget | - |
| Power Consumption (Average / Maximum) | 22.9 W / 27.9 W |
| Heat Dissipation | 95.26 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 24.14 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Các phụ kiện và Module dùng với FortiWiFi 80F-2R
| Accessories | SKU | Description |
| AC power adaptor | SP-FWF80F-PDC-5 | Pack of 5 AC power adaptors for FWF-80/81F-2R, power cable SP-FG60CPCOR-XX sold separately |
| Rack Mount Tray | SP-RACKTRAY-02 | Rack mount tray for all FortiGate E series and F series desktop models |
| Wall Mount Kit | SP-FG60F-MOUNT-20 | Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass |
| Transceivers | SKU | Description |
| 1 GE SFP RJ45 Transceiver Module | FN-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots. |
| 1 GE SFP SX Transceiver Module | FN-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| 1 GE SFP LX Transceiver Module | FN-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. |
Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FWF-80F-2R-BDL-950-12)
- Hardware: 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, dual WiFi radio
- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)
