EWP-WA6330-FIT - H3C WA6330 Wi-Fi 6 Indoor Access Point :

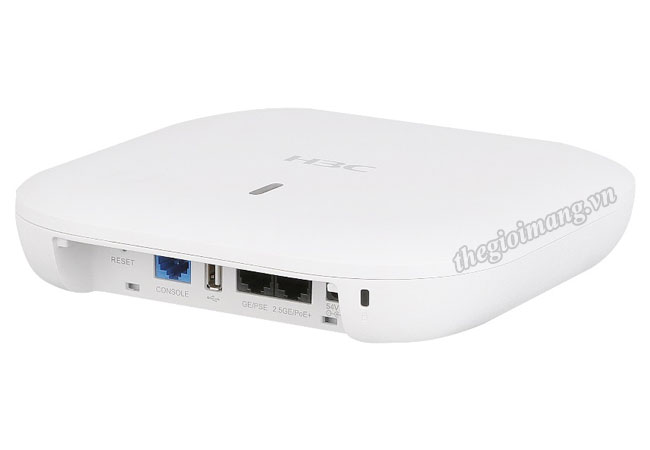

Thiết bị Wi-Fi 6 H3C WA6330 Indoor Access Point (EWP-WA6330-FIT)
| Model | EWP-WA6330-FIT |
| Weight(excluding mounting accessories) | • 0.94Kg |
| Dimensions(excluding mounting and accessories) | • 210mm×210mm×45mm |
| Ethernet ports | • Two (one for 100/1000M/2.5G Rj45, one for 100/1000M Rj45 support IoT) • Support LACP (support between both network ports for redundancy and increased capacity) |
| PoE | • Port 1: 2.5GE:802.3at/802.3af • Port 2: GE:PSE,802.3af |
| Local Power supply | • 54V DC |
| Console port | • One (RJ-45) |
| Built-in antenna | • Built-in omni-directional antenna - Radio 1 : 5dBi antenna gain @ 5G - Radio 2 : 5dBi antenna gain @ 5G - Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G |
| Built-in Bluetooth | • Built-in Bluetooth(Support to switch RFID through software), support iBeacon standard |
| IoT Extension | • Support BLE, RFID, ZigBee, etc. |
| Working frequencies | • 802.11ax/ac wave2/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz • 802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation technology | • OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps • DSSS : DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps (file://dbpsk@1mbps、dqpsk@2mbps、cck@5.5/11Mbps) • MIMO-OFDM (11n) : MCS 0-31 • MIMO-OFDM (11ac) : MCS 0-11 • MIMO-OFDM (11ax) : MCS 0-11 |
| Modulation mode | • 11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps • 11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps • 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM • 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM • 11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM |
| Maximum transmit power | • 20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity | • 1dBm |
| Reset/restoration to factory default | • Supported |
| State LED | • Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/Storage Temperature | • -10ºC～55ºC/-40ºC～70ºC |
| Working Humidity/Storage Humidity | • 5%~95%(non-condensing) |
| Protection class | • IP42 |
| Overall power consumption | • ≤34W（excluding IoT modules） |
| Safety compliance | • GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | • GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification | • FCC Part 15, EN 300 328, EN 301 893 and MIIT SRRC |
| Health | • FCC Bulletin OET-65C、EN 50385、IC Safety Code 6 |
| MTBF | • >250000H |
EWP-WA6330-FIT : H3C WA6330 Internal Antennas 6 Streams Triple Radio 802.11ax/ac wave2/ac/n Access Point, FIT
Data sheet H3C WA6330 New Generation 802.11ax Indoor Series Access Point
