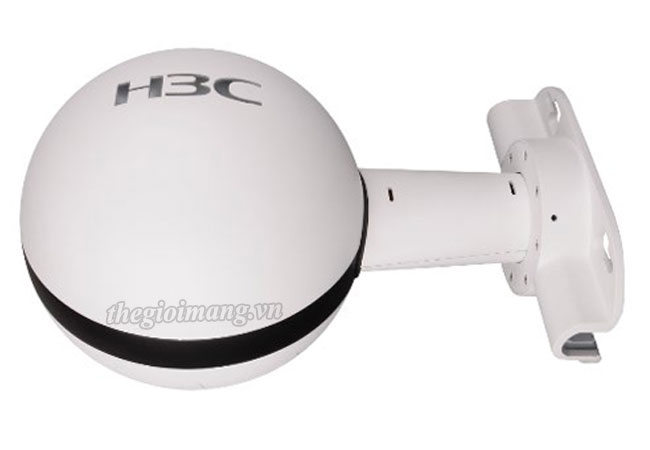

EWP-WA6630X-FIT - H3C WA6630X Wi-Fi 6 Outdoor Access Point :
Thiết bị Wi-Fi 6 H3C WA6630X Outdoor Access Point (EWP-WA6630X-FIT)
| Model | EWP-WA6630X-FIT |
| Weight (excluding mounting accessories) | • 4.0kg |
| Dimensions (H×W×D, excluding mounting accessories) | • 260mm x 260mm x 394mm |
| Fixed port | • 1×100M/1000M/2.5G/5G/10G Ethernet multi-rate ports • 2×100M/1000M Ethernet port, GE*2 support IoT extension, PSE:802.3af • 1×Console port (RJ45) |
| Antenna | • Built-in Omnidirectional - 5dBi antenna gain @2.4GHz - 4dBi antenna gain @5GHz - 4dBi antenna gain @5GHz |
| Operating frequencies | • 802.11ax/ac wave2/ac/n/a: 5.725GHz-5.850GHz; 5.47～5.725GHz; 5.15~5.35GHz • 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM (11n): MCS 0-31 • MIMO-OFDM (11ac): MCS 0-9 • MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | • 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power | • 2.4GHz: 24dBm • 5GHz: 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power | • 1dBm |
| Power Source | • PoE Injector+55V DC Adapter (Optional) • Adapted to 47~57V DC |
| Power consumption | • ≤48.6W（include PoE_OUT） • ≤33.6W（exclude PoE_OUT） |
| Operating temperature/storage temperature | • Operating Tem: -30ºC～55ºC (Recommended); -40 ºC～65ºC • Storage Tem: -40ºC～85ºC |
| Operating humidity/storage humidity | • 0% to 100% (non-condensing) |
| Safety compliance | • IEC 60950-1, EN 60950-1, IEC 60950-22, EN 60950-22 |
| EMC | • EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 |
| Radio frequency certification | • EN 300 328, EN 301 893, FCC Part 15 |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree | • IP68 |
| MTBF | • >250000 hours |
EWP-WA6630X-FIT : H3C WA6630X Internal Antennas 10 Streams Triple Radio 802.11ax/ac wave2/ac/n Access Point, FIT
