H3C EWP-WSG1808X-PWR

EWP-WSG1808X-PWR - H3C WSG1808X-PWR Wireless Controller :

Integrated Services Gateway
WAN: 2 x GE ports
LAN: 7 x GE PoE+ + 1 x SFP+
AP license: 12

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

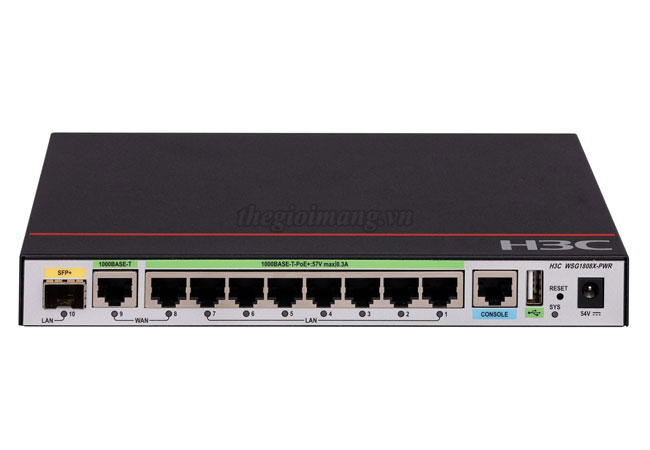

Thiết bị Wireless Controller H3C EWP-WSG1808X-PWR

Model	EWP-WSG1808X-PWR
Hardware Specifications
Dimensions (WxDxH)	• 220 * 145.5 * 27mm
Weight	• 1.1kg
Wireless throughput	• 2Gbps
Port	• WAN：2GE • LAN：7GE PoE plus+ 1SFP+ Notes: All ports are LAN/WAN switchable. WAN ports are the 8th and the 9th port; the 10th port is SFP+ port • 1Console
Power supplies	• Power adapter
Operating and storage temperature	• 0℃~45℃/-40℃~70℃
Operating and storage relative humidity	• 5%~95%
Safety Compliance	• FDA 21 CFR Subchapter J • GB 4943.1 • UL 62368-1 • CAN/CSA C22.2 No 62368-1 • IEC 62368-1 • EN 62368-1 • AS/NZS 62368-1
EMC	• EN 55035:2017+A11:2020 • EN 55032:2015+A11:2020; EN 55032:2015+A1:2020 • EN 55032:2015 • ETSI EN 300 386 V2.1.1(2016-07) • VCCI-CISPR 32:2016 • FCC CFR 47 Part15 B • AS/NZS CISPR32:2015 • EN 61000-3-2:2014 • EN 61000-3-3:2013 • ICES-003 Issue 7 • EN 55035:2017 • ETSI EN 300 386 V2.1.1 (2016-07)
MTBF	• ≥ 192.27yrs
Software specifications
Basic functions
Number of managed APs by default	• 12 ordinary APs or 24 wall-plate APs
Maximum number of managed APs	• 24 (Notes: 1 license per ordinary AP, 0.5 license per wall-plate AP, but 24 APs at most)
Maximum users of authentication	• 1024
802.11MAC
802.11 Protocols	√
The number of SSID of whole machine	• 24
SSID hiding	√
11G protection	√
11n only	√
Use number limit	• Supported: SSID based, per RF based
Keepalive	√
Idle	√
Multi-country code assignment	√
Wireless user isolation	• Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation
20MHz/40MHz auto-switch in 40MHz mode	√
Local forwarding	Local forwarding based on SSID+VLAN
CAPWAP
Automatic AP registration	√
AC discovery (DHCP option43, DNS)	√
IPv6 tunnel	√
Clock synchronization	√
Jumbo frame forwarding	√
Assign basic AP network parameter through AC	• Supported: Static IP, VLAN, connected AC address
L2/L3 connection between AP and AC	√
NAT traversal between AP and AC	√
Roaming
Intra-AC, Inter-AP L2 and L3 roaming	√
Inter-AC, Inter-AP L2 and L3 roaming	√
GW Features
NAT	√
PPPoE	√
DDNS	√
SSL VPN	√
IPSEC VPN	√
RIP	√
GRE	√
Access control
Open system, Shared-Key	√
WEP-64/128, dynamic WEP	√
WPA, WPA2, WPA3	√
TKIP	√
CCMP	√ (11n recommended)
SSH v1.5/v2.0	√
Portal authentication	• Supported: Remote Authentication, external server
Portal page redirection	• Supported: SSID based, AP Portal page push
Portal by-pass Proxy	√
802.1x authentication	• EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
Local authentication	• 802.1X, Portal, MAC authentication
LDAP authentication	• 802.1X and Portal • EAP-GTC and EAP-TLS supported by 802.1X login
AP location-based user access control	√
Guest Access control	√
VIP channel	√
ARP attack detection	• Supported: Wireless SAVI
SSID anti-spoofing	• SSID + user name binding
AAA server selection based on SSID and domain	√
AAA server back up	√
Local AAA server for wireless user	√
TACACS+	√
QoS
Priority mapping	√
L2-L4 packet filtering and traffic classification	√
Rate limit	• Supported with granularity of 8Kbps
802.11e/WMM	√
Access control based on user profile	√
Intelligent bandwidth limit (equal bandwidth share algorithm)	√
Intelligent bandwidth limit (user specific)	√
Intelligent bandwidth guarantee	• Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested
QoS Optimization for SVP phone	√
CAC (Call Admission Control)	• Supported: based on user number/bandwidth
End-to-end QoS	√
AP upload speed limit	√
RF management
Country code lock	√
Static channel and power configuration	√
Auto channel and power configuration	√
Auto transmission rate adjustment	√
Coverage hole detection and correction	√
Load balancing	• Supported: based on traffic, user & frequency (dual-frequency supported)
Intelligent load balancing	√
AP load balancing group	• Supported: auto-discovery and flexible setting
Security
Static blacklist	√
Dynamic blacklist	√
White list	√
Rogue AP detection	• Supported: SSID based, BSSID, device OUI
Rouge AP countermeasure	√
Flooding attack detection	√
Spoof attack detection	√
Weak IV attack detection	√
WIPS/WIDS	• Supported: 7-layer mobile security
Layer 2 protocol
ARP (gratuitous ARP)	√
802.1p	√
802.1q	√ (Maximum VLANs: 4094)
802.1x	√
IP protocol
IPv4 protocol	√
Native IPv6	√
IPv6 SAVI	√
IPv6 Portal	√
Multicast
MLD Snooping	√
IGMP Snooping	√
Multicast group	• 256
Multicast to Unicast (IPv4, IPv6)	• Supported: Set unicast limit based on operating environment
Redundancy
1+1 failover between ACs	√
Intelligent AP sharing among ACs	√
Remote AP	√
*Management and deployment*
Network management	• WEB, SNMP v1/v2/v3, RMON
Network deployment	• WEB, CLI, Telnet, FTP
Green features
Scheduled shutdown of AP RF interface	√
Scheduled shutdown of wireless service	√
Per-packet power adjustment (PPC)	√
WLAN Application
RF Ping	√
Remote probe analysis	√
Packet forwarding fairness adjustment	√
802.11n packet forwarding suppression	√
Access based traffic shaping	√
Co-AP channel sharing	√
Co-AP channel reuse	√
RF interface transmission rate adjustment algorithm	√
Drop wireless packet with weak signal	√
Disable user access with weak signal	√
Disable multicast packet caching	√
Status blink (limited to some AP)	√
