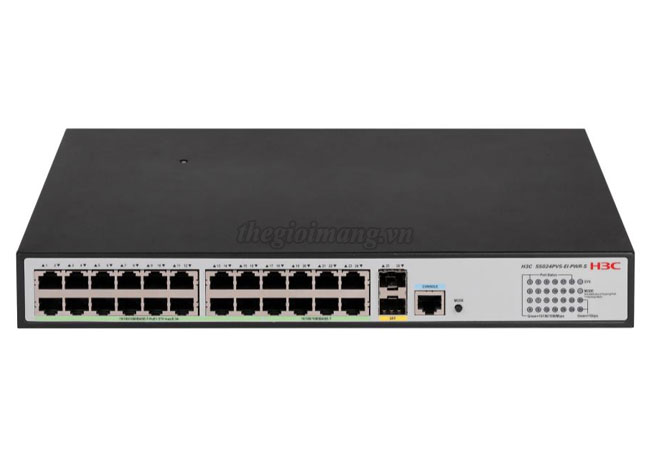

LS-5024PV5-EI-PWR-S-GL - H3C S5000V5-EI Gigabit Managed Switch :
Thiết bị chuyển mạch Switch H3C LS-5024PV5-EI-PWR-S-GL
| Model | LS-5024PV5-EI-PWR-S-GL |
| Switching capacity | • 52Gbps |
| Packet forwarding rate | • 39Mpps |
| Management port | • 1 console port |
| 10/100/1000 Base-T port | • 24 |
| SFP port | • 2 |
| Copper port features | • Half-duplex, full-duplex, auto-negotiation • MDI/MDI-X |
| Ethernet functions | • LLDP • Static MAC configuration • MAC address learning limit • Port mirror and flow mirror • Link aggregation (up to 8 ports per group) • Port isolation • STP/RSTP/MSTP • IEEE 802.3ad (Dynamic link aggregation), static port aggregation • EEE 802.3az |
| VLAN | • 802.1Q ( up to 4K VLAN) • Protocol-based VLAN • IP subnet based VLAN • MAC based VLAN • GUEST VLAN |
| IP routing | • Static routing |
| DHCP | • DHCP Relay • DHCP Client • DHCP Snooping • DHCP Snooping Option82 |
| Broadcast | • IGMP V1/V2/V3 Snooping |
| QoS | • Diff-Serv QoS • WRR/HQ-WRR • 802.1p, DSCP priority mapping • Directional port speed limit |
| ACL | • ACL on layer 2, layer 3 and layer 4 • ACL on IPv4, IPv6 • VLAN ACL |
| IPv6 | • IPv6 static routing, dual-stack • DHCPv6 Client, DHCPv6 Snooping • ND, PMTU • IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution |
| Reliability | • Hot patch, in-service patch upgrade |
| Security | • Hierarchical user management and password protection • SSHv2 • SSL • Specific IP address based FTP logging and password mechanism • Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet • Prevent Dos attack • IP + MAC+PORT+VLAN binding • IEEE 802.1x • SAVI source address validity authentication • Radius, HWTACACS • SNMPv3 • Broadcast suppression • Prevent CPU attack |
| System Management | • Console/AUX Modem/Telnet/SSH2.0/CLI • Loading and upgrading through FTP/TFTP/Xmodem/SFTP • SNMP V1/V2c/V3 • NTP • HTTP/HTTPS • System log • Cluster management • RFC 1213 MIB-2 Stands for Management Information Base |
| Environment temperature | • Operating temperature：-5℃~45℃ • Storage temperature：-40℃~70℃ |
| Environment humidity | • Operating humidity：5%~95% , non-condensing • Storage humidity：5%~95% , non-condensing |
| Environment protection | • China RoHs, EEE |
| Power consumption | • MIN: 13W • MAX: 158W |
| Fan NUM | • Fanless |
| PoE+ | • 125W |
| MTBF(Year) | • 87.06 |
| MTTR(Hour) | • 1 |
| Weight | • ≤ 2.5kg |
| Input voltage range | • AC: 100V～240V AC, 50/60Hz |
| Dimensions (W × D x H) | • 330x230x43.6mm |
LS-5024PV5-EI-PWR-S-GL : H3C S5024PV5-EI-PWR-S L2 Ethernet Switch with 16*10/100/1000BASE-T PoE+ Ports, 8*10/100/1000BASE-T Ports and 2*1000BASE-X Ports,(AC)
