Model	S5130S-52S-PWR-HI
Port Switching capacity	• 176Gbps
Box Switching capacity	• 336Gbps
Forwarding capacity	• 132Mpps
CPU	• 1 Core, 800MHz
Dimensions (W × D ×H)	• 440×460×43.6
Weight	• ≤ 9.5kg
Front panel data ports	• 48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports
Console port	• 1 × RJ-45 Out of Band console port • 1 × Micro-USB(Type B) console port • Only the Micro-USB console port is available when you connect both ports.
Expansion slot	-
Power consumption (full configuration)	• Single AC: Up to 1019W (including 900W PoE) • Dual AC: Up to 1854W （ (including 1680W PoE)
MTBF(Year)	• 61.87
Flash/SDRAM	• 256MB/512MB
Maximum stacking bandwidth	• 80G
Maximum stacking number	• 9
SDN/Open flow	• OpenFlow 1.0 and 1.3 • Multiple controllers (EQUAL, master/slave) Multiple tables flow • sFlow • Group table • Meter
Port aggregation	• GE/10GE port aggregation • Dynamic aggregation • Static aggregation • Cross-device aggregation
Port features	• IEEE802.3x flow control (full duplex) • control based on port rate percentage • PPS/BPS-based storm control
IRF2	• Distributed device management, distributed link aggregation, and distributed resilient routing • Stacking through standard Ethernet interfaces • Local device stacking and remote device stacking
VLAN	• Port-based VLAN (up to 4094 VLANs) • MAC-based VLAN • Protocol-based VLAN • QinQ and selective QinQ • VLAN mapping • Voice VLAN • GVRP • VLAN tagging • Jumbo frame support
ACL	• Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, • Time range-based ACL • VLAN-based ACL • Bidirectional ACL
QoS	• Port rate limit (receiving and transmitting) • Packet redirection • Committed access rate (CAR) Eight output queues on each port • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR • 802.1p DSCP remarking • Class of service (CoS)
DHCP	• DHCP Client • DHCP Snooping • DHCP Snooping option82 • DHCP Relay • DHCP Server • DHCP auto-config
IP routing	• IPV4 routing number 1K • Static routing • RIPv1/v2 and RIPng • OSPFv1/v2 and OSPFv3 • Policy-based routing • BGP (Border gateway routing) • Loopback IP interface • Route maps
MAC address table	• 16K
Multicast	• IGMP Snooping /MLD Snooping • Multicast VLAN
Layer 2 ring network protocol	• STP/RSTP/MSTP/PVST • Smart Link • RRPP • G.8032 Ethernet ring protection switching (ERPS)
OAM	• 802.1ag • 802.3ah • 802.1 AB (LLDP)
Mirroring	• Port mirroring • RSPAN • Traffic mirroring
Security	• Hierarchical user management and password protection • MAC-based and Web-based authentication • 802.1X • Guest VLAN • RADIUS/HWTACACS/TACACS+ • DHCP protection • Source-port filtering • SSH 2.0,SSL VPN • Port isolation • Port security • MAC address learning limit • IP Source guard/ACLs • Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks • STP protection : BPDU and STP root guard • IP/Port/MAC binding • EAD
Management and maintenance	• Loading and upgrading through XModem/FTP/TFTP • Configuration through CLI, Telnet, and console port • SNMPv1/v2/v3 and Web-based NMS • Remote monitoring (RMON ) alarm, event, and history recording • IMC NMS • System log, alarming based on severities, and output of debugging information • NTP • Ping, Tracert • Virtual cable test (VCT) • Device link detection protocol (DLDP) • Loopback-detection
Green power	• EEE (802.3az) • Port auto Power down • Port schedule down
Input voltage	• Non PoE model input voltage: • AC: Rated voltage range: 100V~240V AC, 50/60Hz • DC: Maximum voltage range -48V~-60V DC • PoE model input voltage: 360W AC: 100V~240V, 50Hz~60Hz 720W AC: 100V~240V, 50Hz~60Hz 1110W AC: 115V~240V, 50Hz~60Hz
Operating temperature	• -5℃ ~ 50℃ (normal operating temperature) • -5℃ ~ 45℃ (When using transceiver modules with maximum transmission distance < 80km) • -5℃ ~ 40℃ (When using transceiver modules with maximum transmission distance ≥ 80km) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage temperature	• -40℃～+70℃
Operating & storage humidity (non condensing)	• 5%～95%

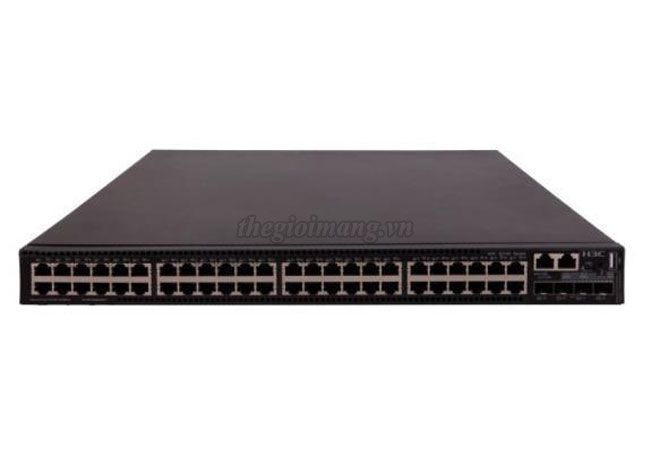

LS-5130S-52S-PWR-HI-GL : H3C S5130S-52S-PWR-HI Ethernet Switch with 48 10/100/1000BASE-T PoE+ Ports and 4 1G/10G BASE-X SFP Plus Ports, dual power supply slots

Data sheet H3C S5130S-HI Series Advanced Gigabit Access Switches
