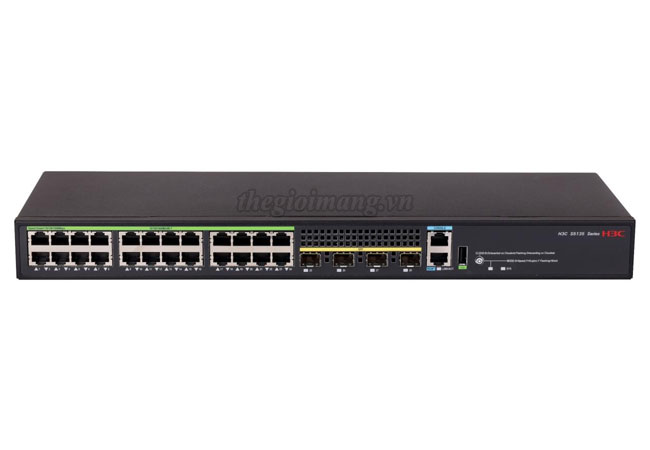

Model	S5135S-24T4S-EI-Q
Hardware Specifications
Port Switching Capacity	• 56Gbps
Forwarding Capacity	• 42Mpps
Box Switching Capacity	• 336Gbps
CPU	• Dual Core, 1.2MHz
Flash	• 512MB
SDRAM	• 1G
Dimensions(W× D×H)	• 440×160×44 mm
Weight	• ≤2.5kg
10/100/1000 Base-T port	• 24
SFP port	• 4
Console Ports	• 1
Management Ethernet Ports	• 1
Maximum Stacking Bandwidth	• 16Gbps
Maximum Stacking Num	• 9
Input Voltage	• AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power Vonsumption	• MIN: AC:6W • MAX: AC:18W
Fan NUM	• Fanless
MTBF(Year)	• 122.1
MTTR(Hour)	• 1
Operating Temperature	• -5℃ ~ 50℃(normal operating temperature) • -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) • -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	• -40℃ ~ 70℃
Operating & Storage Relative Humidity (Noncondensing)	• 5% ~ 95%
Performance Specification
MAC address entries	• 16K
VLAN	• 4096 (VLAN 0 and 4095 are reserved)
Active VLAN	• 4094
VLAN interface	• 32
IPv4 routing entries	• 3000
IPv4 ARP entries	• 2048
IPv4 ACL entries	• 1024
IPv6 unicast routing entries	• 750
IPv6 ACL entries	• 1024
IPv6 ND entries	• 750
Multicast L2 entries	• 999
Jumbo frame length	• 10000
QOS forward queues	• 8
MAX num in one link group	• 8
Link group num	• 124
Multicast Group	• 500
Groups of RMON	• 4
Software Specifications
Port aggregation	• GE port aggregation • Dynamic aggregation • Static aggregation • Cross-device aggregation
Broadcast/Multicast/Unicast storm suppression	• Storm suppression based on port bandwidth percentage • Storm suppression based on PPS • Storm suppression based on BPS • Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
IRF2	• Distributed device management, distributed link aggregation, and distributed resilient routing • Stacking through standard Ethernet interfaces • Local device stacking and remote device stacking
MAC address table	• Static MAC address • Blackhole MAC address
VLAN	• Port-based VLAN • MAC-based VLAN • Protocol-based VLAN • QinQ and selective QinQ • VLAN mapping • Voice VLAN • Private VLAN • Dynamic VLAN • Guest VLAN • GVRP • LLDP/LLDP-MED
DHCP	• DHCP Client • DHCP Snooping • DHCP Snooping option82 • DHCP Relay • DHCP Server • DHCP auto-config
IP routing	• Static routing • RIPv1/v2 and RIPng • OSPFv1/v2 and OSPFv3 • Inter-VLAN routing • Dynamic ARP inspection
Multicast	• IGMP Snooping V2/V3 • MLD Snooping • Multicast VLAN
Layer 2 ring network protocol	• STP/RSTP/MSTP/PVST/PVST+ • BPDU/root/TC-BPDU/PVST BPDU guard • Smart Link • RRPP • G.8032 ERPS (Ethernet Ring Protection Switching)
ACL	• Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses • Time range-based ACL • VLAN-based ACL • Bidirectional ACL
QoS	• Port rate limit (receiving and transmitting) • Packet redirection • Committed access rate (CAR) • Eight output queues on each port • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR • 802.1p DSCP remarking • IPv4 and IPv6 Class of Service (CoS)
Traffic Statistic	• Sflow
Forwarding	• Wire-speed/Line-rate architecture • Hardware-based Forwarding
Mirroring	• Port mirroring N:1 • Traffic Mirroring N:1 • RSPAN
Security	• Hierarchical user management and password protection • User-based authentication • AAA authentication support • RADIUS authentication • HWTACACS • SSH2.0 • SCP • Port isolation • 802.1X authentication, centralized MAC authentication • Port security • CPU protection • IP Source Guard • HTTPs • EAD
Management and maintenance	• Loading and upgrading through XModem/FTP/TFTP • Multiple Images Stored • Zero Touch Provisioning • Configuration through CLI, Telnet, and console port • SNMPv1/v2c/v3 and Web-based NMS • SNMP for IPv6 • Restful • Python • Remote monitoring (RMON ) alarm, event, history, and recording • IMC NMS • System log, alarming based on severities, and output of debugging information • MDI/MDIX (medium-dependent interface/MDI crossover) • NTP • Ping, Tracert • Virtual cable test (VCT) • Device link detection protocol (DLDP) • Loopback-detection
EMC	• FCC Part 15 Subpart B CLASS A • ICES-003 CLASS A • VCCI CLASS A • CISPR 32 CLASS A • EN 55032 CLASS A • CISPR 35 • AS/NZS CISPR 32 • EN 55035 • EN 61000-3-2 • EN 61000-3-3 • ETSI EN 300 386
Safety	• UL 62368-1 • CSA C22.2 No. 62368-1-14 • IEC 62368-1 • EN 62368-1 • EN 60825-1 • AS/NZS 62368-1 • GB 4943.1
RoHS	• EU RoHS2.0 Directive • China RoHS 2.0
