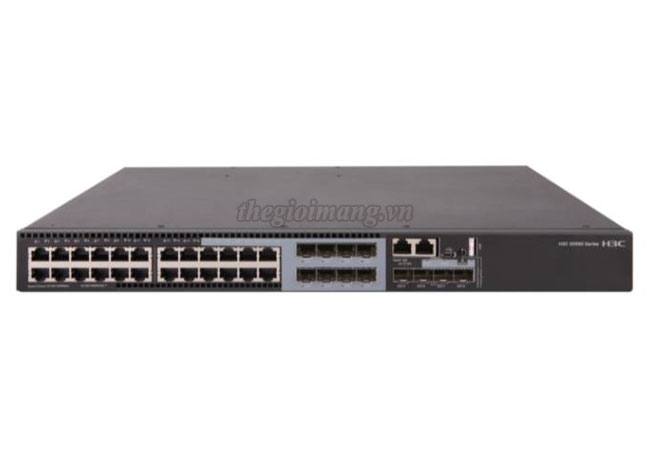

LS-5560S-28P-EI-GL - H3C S5560S-EI Enhanced Gigabit Switch :
Thiết bị chuyển mạch Switch H3C LS-5560S-28P-EI-GL
| Model | S5560S-28P-EI |
| Port Switching capacity | • 56Gbps |
| Box Switching capacity | • 598Gbps |
| Packet forwarding rate | • 42 Mpps |
| CPU | • 1 Core, 800MHz |
| Dimensions (H × W × D) | • 43.6 × 440 × 360 mm |
| Weight | • ≤ 8 kg |
| Flash/SDRAM | • 512MB/512MB |
| Management Ethernet ports | • 1 |
| Console ports | • 1 × RJ-45 console port • 1 × Micro-USB port • Only the Micro-USB port is available if you connect both ports. |
| Service ports | • 24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces) • 4 × GE SFP ports |
| Stacking bandwidth | • 16Gbps |
| Rated input voltage | • AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz • DC: –36 VDC to –72 VDC |
| Min. power consumption | • Single 75 W AC input: 12 W • Dual 75 W AC inputs: 13 W • Single 150 W AC input: 15 W • Dual 150 W AC inputs: 20 W • Single 150 W DC input: 15 W • Dual 150 W DC inputs: 21 W |
| Max. power consumption | • Single 75 W AC input: 29 W • Dual 75 W AC inputs: 32 W • Single 150 W AC input: 32 W • Dual 150 W AC inputs: 39 W • Single 150 W DC input: 35 W • Dual 150 W DC inputs: 44 W |
| MTBF(Year) | • 150.86 |
| MTTR(Hour) | • 1 |
LS-5560S-28P-EI-GL : H3C S5560S-28P-EI Ethernet Switch with 24*10/100/1000BASE-T Ports and 8*100/1000BASE-X SFP Combo Ports and 4*1000BASE-X SFP Ports
