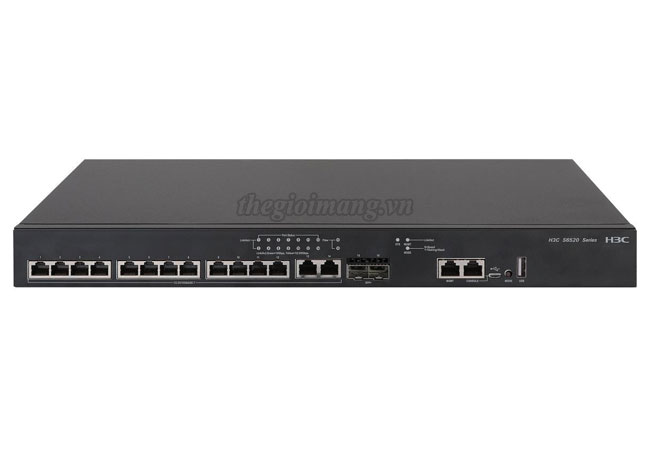

H3C LS-6520X-16XT-SI

LS-6520X-16XT-SI - H3C S6520X-SI 10GE Layer 3 Switch :

14 x 1G/2.5G/5G/10GBase-T Ports
2 x 1G/10GBase-X SFP Plus Ports
Switching capacity: 320Gbps
Forwarding rate: 240Mpps

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị chuyển mạch Switch Layer 3 H3C LS-6520X-16XT-SI

Model	LS-6520X-16XT-SI
Hardware Specifications
Port switching capacity	• 320Gbps
Packet forwarding rate	• 240Mpps
Box switching capacity	• 1.44Tbps
CPU	• Dual-Core, 1.6GHz
Flash/SDRAM	• 1GB/2GB
Buffer	• 3M
Dimensions (W×D×H)	• 440×260×43.6 mm
Weight	• ≤3.4kg
Service ports	• 14× 1G/2.5G/5G/10G Base-T Multi-giga ports+ 2×1/10G SFP Plus
Console ports	• 1
Management Ethernet ports	• 1
USB ports	• 1
Expansion slots	• N/A
Power Supply slots	• N/A
Idle power consumption	• AC: 22.1W
Max. power consumption	• AC: 48.3W
Input voltage range	• AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz • DC: -48V~-60V
Operating temperature	• 0ºC to 45ºC (32°F to 113°F) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage temperature	• -40℃ to 70℃(-40℉ to 158℉)
Operating & storage humidity	• 5% RH to 95% RH, non-condensing
MTBF(Year)	• 58.1
MTTR(Hour)	• 1
Performance Specification
MAC address entries(max)	• 32768
VLAN table	• 4094
VLAN interface	• 1024
IPv4 routing entries(max)	• 16384
IPv4 ARP entries(max)	• 16384
IPv4 ACL entries	• Ingress: 1024 • Egress: 256
IPv4 multicast L2 entries	• 4000
IPv4 multicast L3 entries	• 1500
IPv6 unicast routing entries(max)	• 8192
QOS forward queues	• 8
IPv6 ACL entries	• Ingress: 1024 • Egress: 256
IPv6 ND entries(max)	• 10240
IPv6 multicast L2 entries	• 2000
IPv6 multicast L3 entries	• 500
Jumbo frame length	• 10000
Max Stacking Member	• 9
Max Stacking Bandwidth	• 160Gbps
MAX num in one link group	• 32
Link group num	• 128
Software specifications
Virtualization	• Intelligent Resilient Framework 2 (IRF2) • Distributed device management • Distributed link aggregation • Distributed resilient routing • Stacking through standard Ethernet ports • Local device stacking and remote device stacking • LACP-, BFD-, and ARP-based multi-active detection (MAD)
Jumbo frame	• Supported
MAC address table	• Static MAC address • Blackhole MAC address • MAC learning limit
OpenFlow	• OpenFlow 1.3
VxLAN	• VXLAN L2 switching • VXLAN L3 routing • VXLAN VTEP • IS-IS+ENDP distributed control plane • MP-BGP+EVPN distributed control plane • OpenFlow+Netconf centralized control plane
VLAN	• Port-based VLAN (up to 4094 VLANs) • Default VLAN • Private VLAN • QinQ and flexible QinQ • VLAN mapping • PVST+ and RPVST+
Traffic monitoring	• sFLOW
DHCP/DHCPv6	• DHCP/DHCPv6 client • DHCP/DHCPv6 snooping • DHCP/DHCPv6 relay • DHCP/DHCPv6 server • DHCP snooping Option 82/DHCP relay Option 82
ARP	• Static entry • Gratuitous ARP • Common proxy ARP and local proxy ARP • Dynamic ARP inspection • ARP anti-attack • ARP flood suppression • ARP source suppression • ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries
Routing	• IPv4/IPv6 static routing • Dynamic routing such as RIP v1/2 and RIPng • Policy routing • Equal-cost multi-path routing (ECMP) • VRRP • OSPFv1/v2/v3 • BGP • IS-IS
IPv6	• Neighbor Discovery (ND) • PMTU • ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3 • SSH2 v6 • IPv6 Portal • IPv6 tunnel
Multicast	• IGMP v2/v3 • IGMP Snooping v2/v3 • IGMP Snooping fast-leave • IGMP Snooping group-policy • PIM-SM , PIM-SSM , PIM-DM • PIM snooping • MVRP (GVRP analog) • MFF • Enhanced Layer 3 multicast
MPLS	• Support MPLS • Support MCE • Support MPLS VPN, VPLS
Zero Configuration	• DHCP auto-config • CWMP-TR069
Broadcast/Multicast/Unicast storm suppression	• Storm suppression based on port bandwidth percentage • Storm suppression based on PPS • Storm suppression based on BPS • Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
Loop-free redundant Layer 2 topology	• STP/RSTP/MSTP/ PVST/PVST+ • STP Root Guard • BPDU Guard • BPDU Drop • BPDU Blocking and Root Guard • Link Detection (UDLD) • Digital Diagnostic Monitor (DDM) • G.8032 Ethernet ring protection switching (ERPS)
QoS/ACL	• Rate limit for receiving and transmitting packets • CAR • COS, TOS • Eight output queues per port • Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR • 802.1p priority and DSCP priority • Layer 2 to Layer 4 packet filtering • Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, TCP / UDP Port, protocol, and VLAN • Time range
Mirroring	• Flow mirroring • N:4 port mirroring • Local port mirroring and remote port mirroring • Policy-based Mirroring • Traffic Mirroring
Security	• Hierarchical user management and password protection • MAC-based authentication • 802.1X • Storm constrain • AAA authentication • RADIUS authentication • HWTACACS • SSH2.0 • Port isolation • IP/Port/MAC binding • IP source guard • HTTPs • SSL • User Profile • Public Key Infrastructure (PKI) • CPU protection • Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS) • ND Detection, RA Guard
Loading and upgrading	• Loading and upgrading through XMODEM/FTP/TFTP • Loading and upgrading from USB
Management and maintenance	• Configuration from CLI • Login through Telnet, and the console port • Job scheduler • ISSU • VCT • 802.1ag and 802.3ah • Simple Network Management Protocol (SNMP) • IMC network management system • System log • Alarming based on severity • NTP • Power, fan, and temperature alarming • Debugging information output • Ping and Tracert • RMON • LLDP, LLDP-MED • LACP • Track • Telnet-based remote maintenance
EMC	• FCC Part 15 Subpart B CLASS A • ICES-003 CLASS A • VCCI CLASS A • CISPR 32 CLASS A • EN 55032 CLASS A • AS/NZS CISPR32 CLASS A • CISPR 24 • EN 55024 • EN 61000-3-2 • EN 61000-3-3 • GB/T 9254 • YD/T 993
Safety	• UL 60950-1 • CAN/CSA C22.2 No 60950-1 • IEC 60950-1 • EN 60950-1 • AS/NZS 60950-1 • FDA 21 CFR Subchapter J • GB 4943.1
