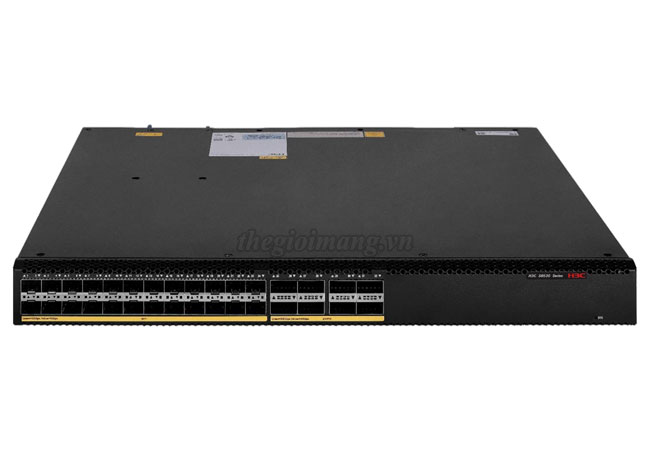

LS-6530X-24X8C - H3C S6530X Aggregation 10GE Switch :
Thiết bị chuyển mạch Switch H3C LS-6530X-24X8C
| Model | LS-6530X-24X8C |
| Hardware Specifications | |
| CPU | • Quad core, 2GHz |
| Flash/SDRAM | • 4GB/4GB |
| Packet Buffer | • 36M |
| Box Switching capacity | • 4.8Tbps |
| Port Switching capacity | • 2.08Tbps |
| Packet forwarding rate | • 1560Mpps |
| Dimensions (H × W × D) | • 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) |
| Weight | • ≤ 7.3 kg |
| Console ports | • 1 |
| Management Ethernet ports | • 1 |
| USB ports | • 1 |
| SFP+ | • 24 |
| QSFP28 | • 8 |
| Power supply slots | • 2 |
| Fan trays | • 5 hot swappable fan trays, invertible airflow |
| Input voltage range | • AC: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max.: 90 VAC to 264 VAC @ 47 Hz to 63 Hz • HVDC: Rated voltage range: 240V DC Max voltage range: 180V～320V DC • DC: Rated voltage range: –48 to–60VDC Max voltage range: –36 to–72VDC |
| Power consumption | • MIN: Single AC: 76W; Dual AC: 83W. • MAX: Single AC: 186W; Dual AC: 191W. |
| Operating temperature | • -5ºC to 45ºC (23°F to 113°F) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | • -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | • 5% RH to 95% RH, non-condensing |
| MTBF(Year) | • 61.4 |
| MTTR(Hour) | • 1 |
| Performance Specification | |
| MAC address entries(max) | • 576K |
| VLAN table (Active VLAN) | • 4094 |
| VLAN interface | • 4094 |
| IPv4 routing entries(max) | • 768K |
| IPv4 ARP entries(max) | • 78K |
| IPv4 ACL entries | • Ingress: 26K • Egress: 2K |
| IPv4 multicast L2 entries | • 8K |
| IPv4 multicast L3 entries | • 8K |
| IPv6 unicast routing entries(max) | • 64K |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 13K • Egress: 1K |
| IPv6 ND entries(max) | • 48K |
| IPv6 multicast L2 entries | • 8K |
| IPv6 multicast L3 entries | • 8K |
| Jumbo frame length | • 13312 |
| Max Stacking Member | • 9 |
| Max Stacking Bandwidth | • 800Gbps |
LS-6530X-24X8C : H3C S6530X-24X8C L3 Ethernet Switch with 24*SFP+ Ports,8*QSFP28 Ports,Without Power Supplies
Data sheet H3C S6530X Series Advanced Aggregation 10GE Switches
