LS-6813-24X6C - H3C S681X L3 Ethernet Switch :

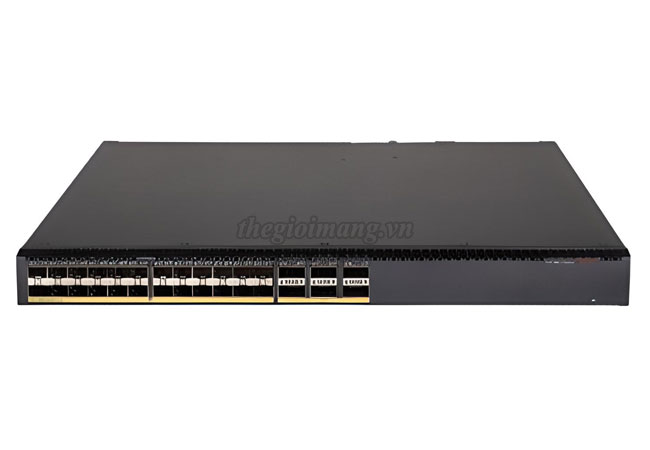

Thiết bị chuyển mạch Switch H3C LS-6813-24X6C
| Model | LS-6813-24X6C |
| Hardware Specification | |
| Dimensions (H × W × D) | • 44 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | • ≤ 6 kg (13.23 lb) |
| Serial console port | • 1 |
| Out-of-band management port | • 1 |
| SFP+ port | • 24 |
| QSFP28 port | • 6 |
| CPU | • 2000MHz@4Core |
| Flash/ SDRAM | • 1GB/4GB |
| Latency | • <1μs |
| Switching capacity | • 1680Gbps |
| Forwarding capacity | • 705Mpps |
| Buffer | • 12M |
| AC-input voltage | • 90v AC to 264v AC |
| DC-input voltage | • -36v DC to -72v DC |
| Power module slot | • 2 |
| Fan tray slot | • 3 Hot-swappable fans, fan speed adjustable and wind invertible |
| Air flow direction | • Front to rear or rear to front |
| Static power consumption | • Single AC：38W • Dual AC：46W |
| Typical power consumption | • Single AC：143W • Dual AC：145W |
| Maximum heat consumption (BTU/hour) | • Single AC：488 • Dual AC：495 |
| MTBF(years) | • 63.4 |
| MTTR(hour) | • 1 |
| Operating temperature | • 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | • 5% to 95% |
| Performance and scalability | |
| Virtualization | |
| IRF2.0 stack | • 9 |
| M-LAG device number | • 2 |
| ED group | • 8 |
| ACL | |
| max number of ingress ACL | • 4K |
| max number of ingress Car | • up to 1K |
| max number of ingress Counter | • up to 1K |
| max number of egress ACL | • 512 |
| max number of egress Car | • up to 512 |
| max number of egress Counter | • up to 512 |
| Forwarding table | |
| Jumbo frame length(byte) | • 10000 |
| Mirroring group | • 7 |
| PBR policy | • 50 |
| PBR node | • 64 |
| max number of MAC per switch | • 256K |
| max number of ARP entries IPv4 | • 128K – 1 |
| max ND table size for IPv6 | • up to 85K |
| max number of unicast routes IPv4 | • 128K |
| max number of unicast routes IPv6 | • 64K |
| IPv4 l2 multicast group | • 4000 |
| IPv4 l3 multicast group | • 4000 |
| IPv4 multicast routing | • 4000 |
| IPv6 l2 multicast group | • 2000 |
| IPv6 l3 multicast group | • 2000 |
| IPv6 multicast routing | • 2000 |
| LAGG group | • 128 |
| LAGG member per group | • 32 |
| ECMP group | • up to 512 |
| ECMP member per group | • 2-128 |
| VRF | • 1023 |
| Interface | |
| Loopback interface number | • 128 |
| L3 sub interface number | • 500 |
| SVI interface number | • 1K |
| VxLAN AC number | • 4K |
| VxLAN VSI number | • 2K |
| VxLAN tunnel number | • 1K |
| VSI interface number | • 512 |
| IPv4 tunnel number | • 480 |
| IPv6 tunnel number | • 480 |
| VLAN number | • 4094 |
| Performance | |
| RIB | • 64K |
| MSTP instance | • 64 |
| PVST instance | • 128 |
| PVST logical port number | • 1000 |
| VRRP VRID | • 255 |
| VRRP group | • 256 |
| NQA group | • 32 |
| Static table | |
| static mac-address | • 1K |
| static multicast mac-address | • 128 |
| static ARP | • 2K |
| static ND | • 2K |
| static IPv4 routing table | • 4K |
| static IPv6 routing table | • 4K |
LS-6813-24X6C : H3C S6813-24X6C L3 Ethernet Switch with 24 SFP Plus Ports and 6 QSFP28 Ports,Without Power Supplies
