Mô tả sản phẩm

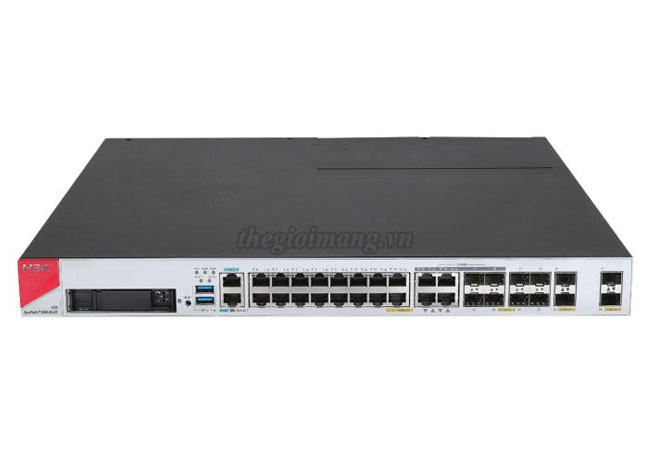

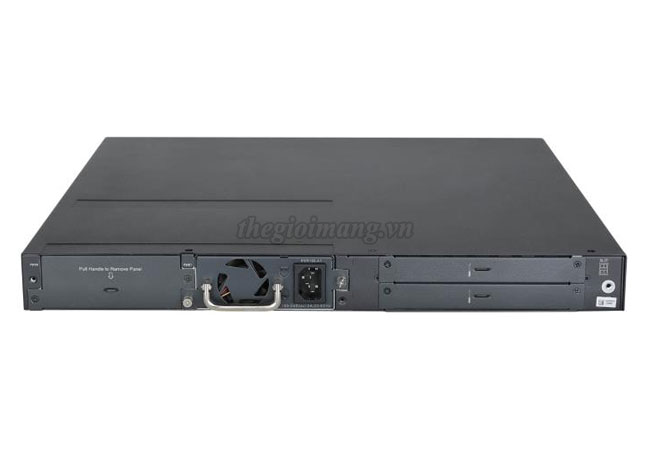

Thiết bị tường lửa Firewall H3C NS-F1000-AI-55

Model	F1000-AI-55
Dimensions (W × D × H)	• 440mm×435mm×44.2mm
USB 3.0	• 2
rack mounted	• Yes
Weight	• 5.4kg
Power Supply	• Dual hot-swappable, AC or DC
Power consumption	• 23W
MTBF(Year)	• 53.38
MTTR(h)	• 1
Ports	• 1 × Console port (CON) • 1 × Management port • 6 × Gigabit Ethernet fiber ports • 16 × Gigabit Ethernet copper ports • 4 × Gigabit Ethernet Combo ports • 2 × 10-Gigabit Ethernet fiber ports
Expansion slots	• 2
Interface modules	• 4-port GE PFC interface module • 4-port GE fiber interface module • 4-port 10-GE fiber interface module
Storage	• 1 × 480G SSD/500G HDD/1TB HDD
Flash	• 4GB
SDRAM	• 4GB/4GB/8GB
Temperature	• Operating: 0°C to 45°C (32°F to 113°F) • Storage: –40°C to +70°C (–40°F to +158°F)
Operation modes	• Route, transparent, and hybrid
AAA	• Portal authentication • RADIUS authentication • HWTACACS authentication • PKI/CA (X.509 format) authentication • Domain authentication • CHAP authentication • PAP authentication
Firewall	• SOP virtual firewall technology, which supports full virtualization of hardware resources, including CPU, memories, and storage • Security zone allocation • Protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood • Basic and advanced ACLs • Time range-based ACL • User-based and application-based access control • ASPF application layer packet filtering • Static and dynamic blacklist function • MAC-IP binding • MAC-based ACL • MAC-Limitation • 802.1Q VLAN transparent transmission • Bandwidth control
Antivirus	• Signature-based virus detection • Manual and automatic upgrade for the signature database • Stream-based processing • Virus detection based on HTTP, FTP, SMTP, and POP3 • Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus • Virus logs and reports
Deep intrusion prevention	• Prevention against common attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, DoS/DDoS, buffer overflow, SQL injection, and IDS/IPS bypass • Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification) • Manual and automatic upgrade for the attack signature database (TFTP and HTTP). • P2P/IM traffic identification and control
Email/webpage/application layer filtering	• Email filtering • SMTP email address filtering • Email subject/content/attachment filtering • Webpage filtering • HTTP URL/content filtering • Java blocking • ActiveX blocking • SQL injection attack prevention
NAT	• Many-to-one NAT, which maps multiple internal addresses to one public address • Many-to-many NAT, which maps multiple internal addresses to multiple public addresses • One-to-one NAT, which maps one internal address to one public address • NAT of both source address and destination address • External hosts access to internal servers • Internal address to public interface address mapping • NAT support for DNS • Setting effective period for NAT • NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP
VPN	• L2TP VPN • IPSec VPN • GRE VPN • SSL VPN
IPSEC VPN	• ESP-DES-CBC/ESP-3DES-CBC/ESP-AES-128-CBC/ESP-AES-192-CBC/ESP-AES-256-CBC/ ESP-AES-128-GCM/ESP-NULL/SM1-cbc-128/SM4-cbc
IPSEC VPN Authentication Algorithm	• MD5/SHA1/SM3
IPv6	• IPv6 status firewall • IPv6 attack protection • IPv6 forwarding • IPv6 protocols such as ICMPv6, PMTU, Ping6, DNS6, TraceRT6, Telnet6, DHCPv6 Client, and DHCPv6 Relay • IPv6 routing: RIPng, OSPFv3, BGP4+, static routing, policy-based routing • IPv6 multicast: PIM-SM, and PIM-DM • IPv6 transition techniques: NAT-PT, IPv6 tunneling, NAT64 (DNS64), and DS-LITE • IPv6 security: NAT-PT, IPv6 tunnel, IPv6 packet filter, RADIUS, IPv6 zone pair policies, IPv6 connection limit
IEEE	• IEEE 802.1X
High availability	• SCF 2:1 virtualization • Active/active and active/standby stateful failover • Configuration synchronization of two firewalls • IKE state synchronization in IPsec VPN • VRRP
Configuration management	• Configuration management at the CLI • Remote management through Web • Device management through H3C IMC SSM • SNMPv3, compatible with SNMPv2 and SNMPv1 • Intelligent security policy
Environmental protection	• EU RoHS compliance
Performance
Firewall Throughput (1518Bytes)	• 6Gbps
Application layer throughput（DPI）	• 3.5Gbps
Application layer throughput（DPI+IPS）	• 3.5Gbps
NGFW throughput（DPI+IPS+AV）	• 2.5Gbps
IPSec tunnel （site-to-site）	• 3000
IPSec throughput	• 310M
SSL VPN users	• 4000
SSL VPN throughput	• 220M
Maximum concurrent sessions	• 5M
Maximum New Connections per second	• 50K
Latency	• <15μs
