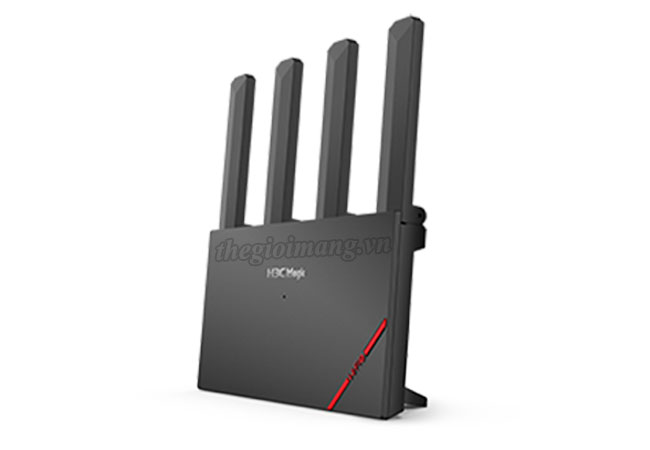

H3C Magic NX30 Gigabit Dual Band Wi-Fi 6 Router :
Thiết bị Router Wi-Fi 6 H3C Magic NX30
| Model | NX30 |
| Hardware | |
| Fixed port | • Four 10/100/1000Base-T Ethernet ports |
| Wireless | • 4 external 5dBi high gain omnidirectional antennas |
| CPU | • Dual-core 1.0 GHz |
| Memory | • 256 MB |
| Indicator | • Front LED: system status indicator |
| Dimensions (W×D×H) | • 210mm x222mm x 64mm |
| Power supply | • 12V⎓1A |
| Cooling method | • Natural cooling |
| Certification | • CE • WEEE • RoHS |
| Wireless | |
| Wireless protocol | • 2.4 GHz: 802.11ax/n/g/b • 5 GHz: 802.11ax/ac/n/a |
| Spatial flow | • 2.4 GHz 2x2 MIMO • 5 GHz 2x2 MIMO |
| Wireless bandwidth | • 2.4G HT20/HT40 • 5G HT20/HT40/HT80/HT160 |
| Wireless rate | • Dual-frequency concurrency 2,976 Mbps • 2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps |
| Wireless roaming | • Support of IEEE 802.11k/v |
| MU-MIMO | • Upstream and downstream MU-MIMO |
| Software | |
| Internet connection | • Routing mode: DHCP/PPPoE/Static IP • Bridge mode: wired relay/wireless relay |
| EasyMesh | • Support |
| IPv6 | • Support |
| Security features | • WPA3 encryption • Anti-Wi-Fi squatting/anti-attack • Firewall, DMZ, DoS attacks |
| Network management | • Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | • Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
| Management method | • Support for H3C Magic APP (iOS, Android), Web |
| Fault diagnosis | • Link detection • Internet diagnosis |
| Operating environment | |
| Operating temperature | • 0°C–40°C |
| Storage humidity | • 10%–90%, RH non-condensing |
