Name: H3C RT-MSR1104S-W-CAT6
Brand: H3C
SKU: RT-MSR1104S-W-CAT6
Rating: 5 (15 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

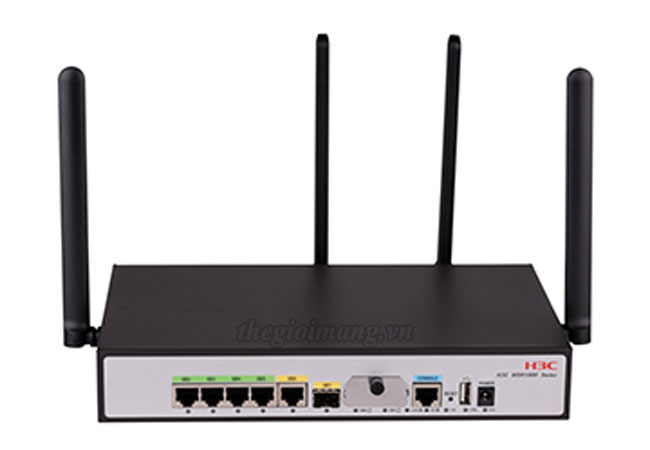

Thiết bị định tuyến Router H3C RT-MSR1104S-W-CAT6

Model	MSR1104S-W-CAT6
Hardware specifications
Forwarding Performance In Service (IMIX)	• 1 Gbps
Memory	• 1 GB
Flash	• 256 MB
Console port	• 1
USB 2.0 port	• 1
WAN Ethernet port	• 1 × GE copper port • 1 × GE fiber port
LAN Ethernet port	• 4 × GE copper ports
5G/4G	• TDD LTE: B38/B40/B41 • FDD LTE: B1/B3/B5/B7/B8/B20/B28/B32 • WCDMA: B1/B3/B5/B8 • CA: B1+B3/B8, B3+B1/B8, B38+B38
5G/4G antenna	• 2
SIM cards	• 2
Wi-Fi	• 802.11ax/n/b/g: 2.4 GHz 22 MIMO 575 Mbps • 802.11ax/ac/a/n: 5G 22 MIMO 2400 Mbps
Wi-Fi antenna	• 2
Dying gasp	• N/A
Max power consumption	• 24 W
Power supply	• External power adapter 100 to 240 V, 50/60 Hz
Dimensions (H × W × D)	• 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in)
Operating temperature	• 0°C to 45°C
Ambient relative temperature	• 5 % to 95%, noncondensing
Software specifications
Layer 2 switching	• Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server
IP services	• TCP, UDP, IP option, IP unnumbered • Policy-based routing, NetStream, sFlow • ECMP • UCMP
IP applications	• Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, UDP Helper, NTP, SNTP
IPv4 routing	• Static routing • Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS • Route iteration • Routing policy • Multicast routing protocols: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	• IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, DS-LITE • IPv6 tunnel: manually configured IPv6 tunnel, automatic IPv6 tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel • Static routing • Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ • IPv6 multicast protocols: MLDv1/v2, PIM-DM, PIM-SM
QoS	• LR, port-based mirroring, priority trust mode on a port, and port priority • Committed access rate (CAR) • FIFO, WFQ, CBQ • Generic Traffic Shaping (GTS) • Traffic classification
5G/4G	• 5G NR, TDD/FDD LTE, WCDMA/HSPA+
Security	• Portal, 802.1X • Local authentication, RBAC authentication, RADIUS authentication, TACACS+ authentication • ASPF, ACL, filter, security zone-based firewall, connection limit, IPS • IKE/IPsec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN • NAT/NAPT, PKI, RSA, URPF • DDoS attack prevention, ARP attack prevention, URL filtering • EAD • DPI • SM2, SM3, SM4 encryption algorithms
SDN	• NETCONF, OpenFlow, telemetry • VXLAN, EVPN • Segment routing • ZTP through USB drive, URL, and DHCP • SRv6: OSPFv3 for SRv6 IS-IS for SRv6 SRv6 policy SRv6 policy-based traffic steering EVPN L3VPN over SRv6 EVPN L3VPN over SRv6 policy SRv6 policy-based traffic statistics SRv6 OAM BFD for SRv6 SRv6 TI-LFA
MPLS	• LDP, Static LSP • L3VPN: Inter-domain MPLS VPN (Option1/2/3), nested MPLS VPN, hierarchy PE (HoPE), CE dual homing, MCE, and multi-role host • L2VPN: Martini, Kompella, CCC and SVC • MPLS TE, RSVP TE
High availability	• VRRP, VRRPv3 • Multi-link load balancing and backup • Network quality analyzer (NQA), supporting collaboration with routing, VRRP, and interface backup
Management and maintenance	• SNMP v1/v2c/v3, TR069, syslog, RMON • Telnet, SSHv1.5/2.0, FTP • EAA • CLI management, file system management, dual image • NQA DHCP test, NQA FTP test, NQA HTTP test, NQA ICMP test, NQA UDP public test, NQA UDP private test, NQA TCP public test, NQA TCP private test, and NQA SNMP test
