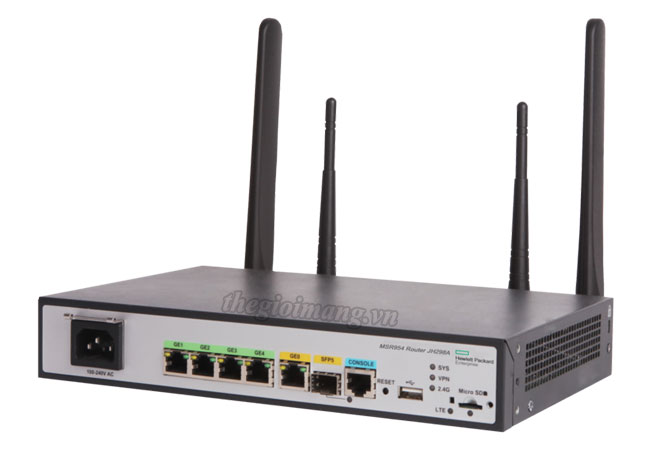

JH298A - HPE MSR954-W 1GbE SFP LTE (AM) 2GbE-WAN 4GbE-LAN Wireless 802.11n CWv7 Router :
Thiết bị định tuyến Router HPE MSR954-W 1GbE SFP LTE (AM) 2GbE-WAN 4GbE-LAN Wireless 802.11n CWv7 (JH298A)
| Model | HPE FlexNetwork MSR954-W 1GbE SFP LTE (AM) 2GbE-WAN 4GbE-LAN Wireless 802.11n CWv7 Router (JH298A) |
| I/O ports and slots | • 1 fixed Gigabit Ethernet SFP port • 1 RJ-45 autosensing 10/100/1000 WAN port • 4 RJ-45 autosensing 10/100/1000 LAN ports |
| Additional ports and slots | • 2 USB 2.0 • 1 RJ-45 console port • 1 SIM slot |
| AP characteristics | |
| Radios (built-in) | • 802.11b/g/n; 3G, 4G LTE |
| AP operation modes | • Autonomous |
| Physical characteristics | |
| Dimensions | • 26.6 x 16.1 x 4.36 cm (1U height) |
| Weight | • 1 kg |
| Memory and processor | • Marvell A370 @ 800 MHz, 1 GB DDR3 SDRAM, 256 MB NAND flash, 64 GB SD Card |
| Performance | |
| Throughput | • up to 300 Kpps (64-byte packets) |
| Routing table size | • 10000 entries (IPv4), 5000 entries (IPv6) |
| Forwarding table size | • 10000 entries (IPv4), 5000 entries (IPv6) |
| Environment | |
| Operating temperature | • 0°C to 45°C |
| Operating relative humidity | • 5% to 92%, noncondensing |
| Altitude | • up to 1.5 km |
| Electrical characteristics | |
| Voltage | • 100 - 264 VAC, rated |
| Maximum power rating | • 22 W |
| Safety | • UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J |
| Emissions | • ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4- 11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B |
| Telecom | • FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 |
| Management | • IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB |
