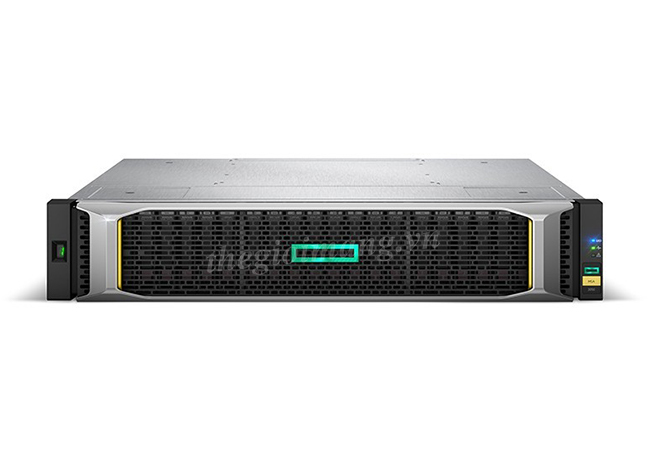

HPE MSA 2052 (Q1J02A) SAN Dual Controller LFF Storage
Thiết bị lưu trữ HPE MSA 2052 (Q1J02A)
| SKU | Q1J02A |
| Array | |
| Access Type | Block |
| Form Factor | 2U, SFF or LFF |
| Number of controllers per array | 2 |
| Number of host ports per array | 8 |
| FC host connectivity | 8/16Gb |
| iSCSI host connectivity | 1Gb or 10Gb |
| SAS host connectivity | 6/12Gb |
| Cache, per array | |
| Max Read cache per array | 8TB |
| Data (read/write) cache + system memory per array | 16TB |
| Pool Capacity (with Large Pool Support) | 562 TB (512 TiB) |
| RAID Levels supported: Virtual mode | RAID 0*, 1, 5, 6, 10 *Read Cache Only |
| Enclosures | |
| Expansion Drive Enclosures | 0-7 enclosures |
| LFF/SFF array/enclosure mixing | Supported |
| Maximum number of drives per array enclosure | 24 SFF/12 LFF |
| Maximum number of drives per drive enclosure | 24 SFF/12 LFF |
| Drive enclosure interface type | 6Gb SAS |
| Drivers | |
| Maximum total HDDs per array | 192 SFF / 96 LFF |
| Maximum total SSDs per array | 192 SFF / 96 LFF |
| Max raw capacity per array enclosure | 76.8 TB SFF / 168TB LFF |
| Max raw capacity per drive enclosure | 76.8 TB SFF / 168TB LFF |
| Max raw capacity per array | 614.4TB SFF / 1344TB LFF |
| Integrated SSDs | 2x800GB Mixed Use SSDs |
| Drive Capacities | |
| SFF SSDs | 400GB, 800GB, 960GB, 1.6TB, 1.92TB, 3.2TB |
| LFF SSDs | 400GB, 800GB, 960GB, 1.92TB |
| SFF HDDs | 15K: 600GB, 900GB 10K: 600GB, 1.2TB, 1.8TB, 2.4TB 7.2K: 2.0TB |
| LFF HDDs | 7.2K: 4TB, 6TB, 8TB, 10TB, 12TB,14TB |
| SEDs | Encryption not supported |
| Software Features | |
| Thin Technologies | Thin Provisioning, Space Reclamation, Thin Rebuild |
| Tiering | Performance Tier, Standard Tier, Archive Tier |
| Replication | Snapshots (512), Volume Copy, Remote Snaps |
| Quality of Service | Virtual Tier Affinity |
| Bundled/Integrated Licenses | Advanced Data Services LTU standard |
| Additional Features | |
| Maximum number of volumes | 512 |
| Maximum number of snapshots | 512 |
| Maximum number of hosts | 512 |
| Maximum number of initiators | 1024 |
| Customer self-installable | Yes |
| Customer self-repairable | Yes |
| Customer self-upgradeable | Yes |
| File Services | Yes HPE Storage File Controller |
| SKU | Q1J02A |
| Description | HPE MSA 2052 SAN Dual Controller LFF Storage |
| Product Model | 2052 |
| Product Type | SAN Storage System |
| Number of Controllers | 2 |
| Controller Type | Serial Attached SCSI (SAS) |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Number of Hard Drives Supported | 12 |
| Number of Solid State Drive Supported | 12 |
| Form Factor | 2U, Rack-mountable |
