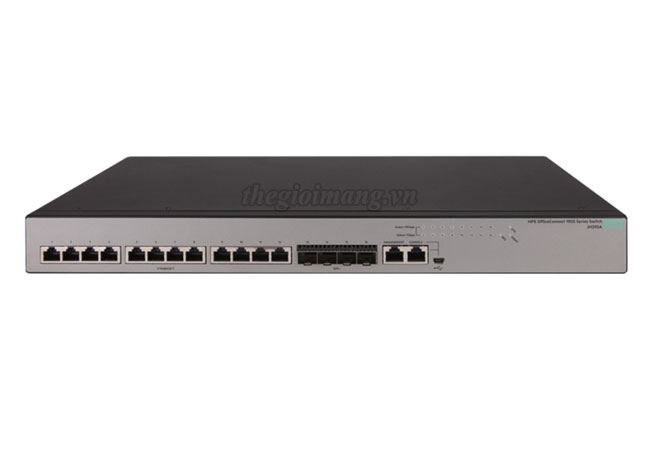

JH295A - HPE OfficeConnect 1950 12XGT 4SFP+ Switch : ● 12 RJ-45 1/10GBASE-T ports ● 4 SFP+ fixed 1000/10000 SFP+ ports ● 1 dual-personality (RJ-45 or Mini USB) console port to access limited CLI port ● 1 RJ-45 out-of-band management port.
Thiết bị chuyển mạch Switch HPE OfficeConnect 1950 12XGT 4SFP+ (JH295A)
| Model | HPE OfficeConnect 1950 12XGT 4SFP+ (JH295A) |
| I/O ports and slots | • 12 RJ-45 1/10GBASE-T ports • 4 SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports and slots | • 1 dual-personality (RJ-45 or Mini USB) console port to access limited CLI port • 1 RJ-45 out-of-band management port |
| Physical characteristics | |
| Dimensions | • 17.32(w) x 6.3(d) x 1.73(h) in (44 x 16 x 4.4 cm) (1U height) |
| Weight | • 8.07 lb (3.66 kg) |
| Memory and processor | • Cortex-A9 @ 1.25 MHz, 512 MB flash; Packet buffer size: 2 MB, 1 GB SDRAM |
| Mounting and enclosure | • Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Performance | |
| 100 Mb Latency | • < 5 µs |
| 1000 Mb Latency | • < 5 µs |
| 10 Gbps Latency | • < 1.5 µs |
| Throughput | • up to 238 Mpps (64-byte packets) |
| Routing/Switching capacity | • 320 Gbps |
| Routing table size | • 512 entries (IPv4), 256 entries (IPv6) |
| MAC address table size | 16384 entries |
| Reliability | |
| MTBF (years) | • 81.8 |
| Environment | |
| Operating temperature | • 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | • 10% to 90%, noncondensing |
| Non-operating/Storage temperature | • -40°F to 158°F (-40°C to 70°C) |
| Non-operating/Storage relative humidity | • 5% to 95%, noncondensing |
| Altitude | • up to 16,404 ft (5 km) |
| Acoustic | • Low-speed fan: 48.1 dB, High-speed fan: 59.8 dB; ISO 7779 Dual speed fan |
JH295A : HPE 1950 12XGT 4SFP+ Switch 12 RJ-45 1/10GBASE-T ports, 4 SFP+ fixed 1000/10000 SFP+ ports
