Huawei AC6805 Wireless Access Controller :
Thiết bị Wireless Access Controller Huawei AC6805
Model | AC6805 |

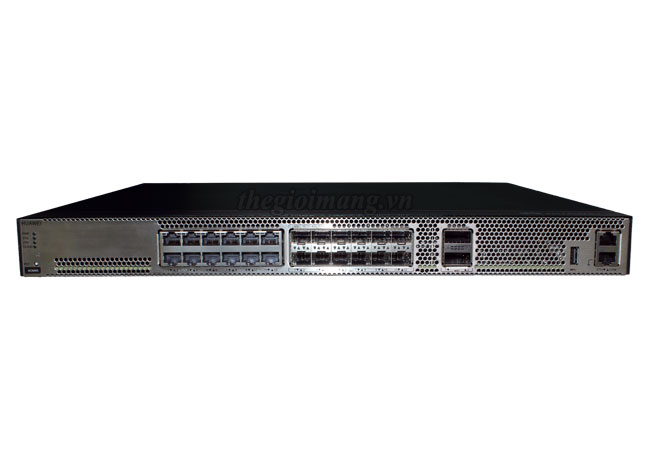

Interface type | • 2 x 40G (QSFP+) + 12 x 10GE (SFP+) + 12 x GE • 1 x ETH Management port • 1 x Management console port (RJ45) • 1 x USB interface NOTE: One 40GE port is mutually exclusive with four 10GE ports. |
Maximum power consumption | 202.5 W |
Weight | 5.83 kg |
Dimensions (H x W x D) | 43.6 mm x 442 mm x 440 mm |
Operating temperature and altitude | • -60 m to +1800 m: 0°C to 45°C • 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
Relative humidity | 5% RH to 95% RH, noncondensing |
Power module | AC and DC power modules, supporting hot swapping, and hot backup NOTE: A maximum of two power modules are supported. |
Performance | |
Number of managed APs | • Central APs: 768 • Common APs and RUs: 6144 NOTE: The RUs managed by the WLAN AC do not occupy the WLAN AC's license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the WLAN AC. |
Number of access users | • 65536 NOTE: The maximum number of access users varies depending on the authentication mode. |
Number of MAC address entries | 102400 |
Forwarding capability | • Direct forwarding: 120Gbps • Tunnel forwarding: 120Gbps |
Number of VLANs | 4096 |
Number of routing entries | • IPv4: 16384 • IPv6: 4096 |
Number of ARP entries | 102400 |
Number of multicast forwarding entries | 2048 |
Number of DHCP IP address pools | 256 IP address pools, each of which contains a maximum of 65536 IP addresses |
Number of local accounts | 6144 |
Number of ACLs | 32768 |
