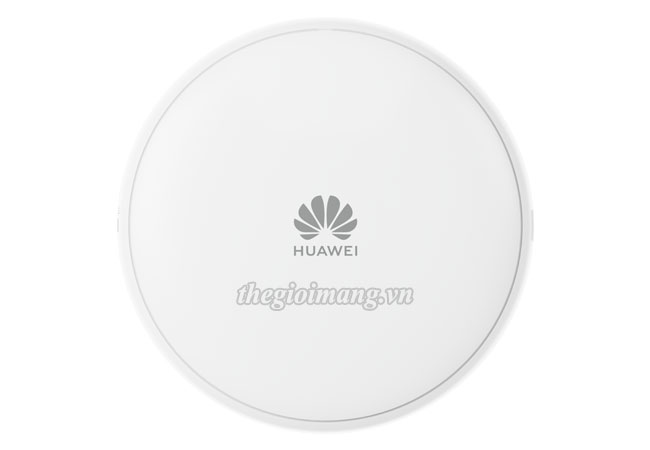

Bộ phát Wi-Fi 7 trong nhà Indoor Huawei AirEngine 6776-57T
Huawei AirEngine 6776-57T là bộ phát Wi-Fi trong nhà thế hệ mới chuẩn Wi-Fi 7 (802.11be). 6776-57T hoạt động trên các băng tần 2,4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) và 6 GHz (4x4 MIMO), hỗ trợ tổng cộng 8 luồng tín hiệu và tốc độ thiết bị có thể lên tới 13.66 Gbps. Hỗ trợ các công nghệ Wi-Fi 7 hoàn toàn mới và được trang bị ăng-ten thông minh tích hợp, nâng cao trải nghiệm mạng không dây của người dùng. Những điểm mạnh này giúp cho AirEngine 6776-57T lý tưởng cho các mô hình văn phòng, trường học, sân vận động.
Thông số kỹ thuật
Model | AirEngine 6776-57T |

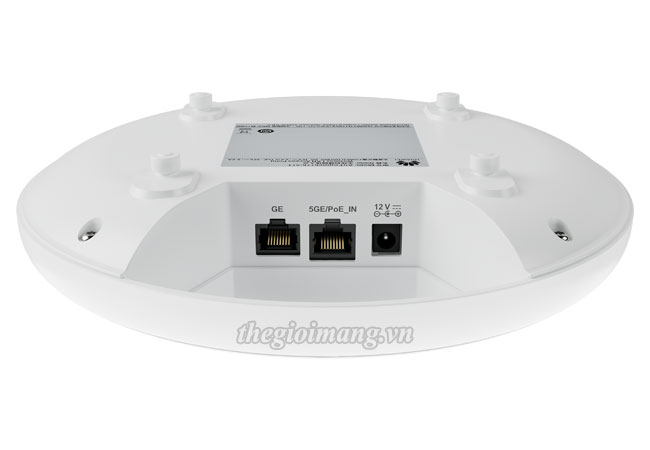

Port type | • 1 x 100M/1GE/2.5GE/5GE electrical port • 1 x 10M/100M/1GE electrical port • 1 x USB port NOTE: The 5GE electrical port supports PoE input. |
Bluetooth | • BLE 5.4 |
LED indicator | • Indicates the power-on, startup, running, alarm, and fault states of the system. |
Dimensions (diameter x height) | • 220 mm x 45 mm |
Power specifications | |
Power input | • DC: 12 V + 10% • PoE power supply: in compliance with 802.3at/af NOTE: When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is unavailable |
Maximum power consumption | • 21.1 W (excluding USB) |
Environmental specifications | |
Operating temperature | • -10°C to +50°C |
Storage temperature | • -40°C to +70°C |
Operating humidity | • 5% to 95% (non-condensing) |
Altitude | • -60 m to +5000 m |
Atmospheric pressure | • 53 kPa to 106 kPa |
Radio specifications | |
Antenna type | • Built-in smart antennas |
Antenna gain | • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi • 6 GHz: 5 dBi |
Maximum number of SSIDs for each radio | • 16 |
Maximum number of users | • 1800 NOTE: The actual number of users varies according to the application environment |
Maximum transmit power | • 2.4 GHz: 23 dBm (combined power) • 5 GHz: 23 dBm (combined power) • 6 GHz: 26 dBm (combined power) |
