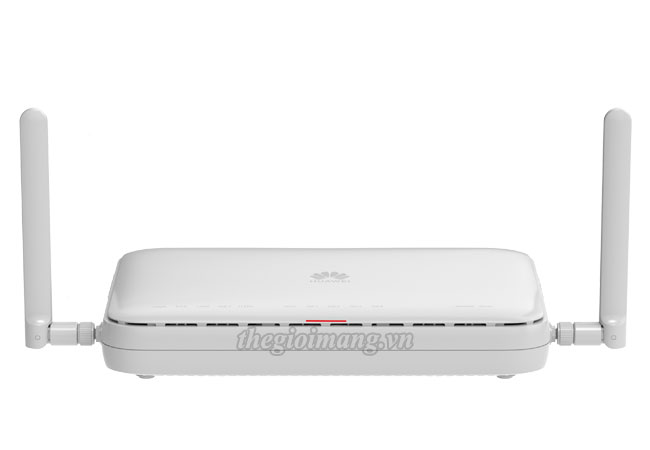

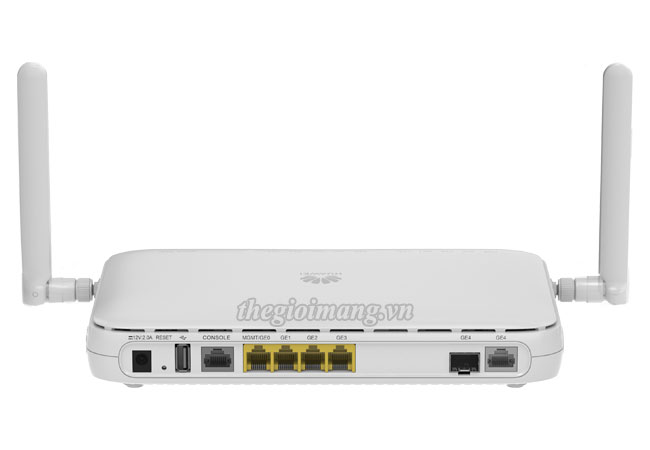

Router Huawei NetEngine AR611-LTE4EA small-sized enterprise branch :
Thiết bị định tuyến Router Huawei NetEngine AR611-LTE4EA
| Model | NetEngine AR611-LTE4EA |
| System Parameters | |
| Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX) | 300Mbps |
| IPsec performance (IMIX) | 200Mbps |
| SD-WAN performance (1400 Bytes) | 250Mbps |
| SD-WAN performance (IMIX) | 80Mbps |
| Fixed WAN ports | 1 * GE combo, 1 * LTE CAT4 |
| Standards compliance and frequency bands supported | • LTE FDD: Band 1/3/5/7/8/20 • LTE TDD: Band 38/40/41 • WCDMA: Band 1/5/8 • GSM: 900/1800(MHz) |
| Fixed LAN ports | 4 * GE RJ45f (can be configured as WAN) |
| Auxiliary or console port | 1 x RJ45 console port |
| USB port | 1*USB |
| Memory | 1GB |
| Flash memory | 1GB |
| Dimensions and Weight | |
| Router dimensions, With no mounting bracket installed (H x W x D) | 38.0 mm x 240.0 mm x 161.5 mm |
| Weight (Excluding packaging materials) | 0.66kg |
| Form Factor/Height | Desktop/Wall-mounted installation |
| Power Specifications, Power Consumption, and Heat Dissipation | |
| Rated input voltage range (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V |
| Maximum input current (AC) | 0.8A |
| Maximum output power (AC) | 24W |
| Maximum power consumption | 12 W |
| Fan module | Natural heat dissipation, without fans |
| Environment Parameters | |
| Operating temperature | 0 ºC to 45 ºC |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | < 5000 m (16404.2 ft.) |
| Storage temperature | –40 ºC to +70 ºC |
| Storage altitude | < 5000 m (16404.2 ft.) |
| Features and Protocols | |
| Basic function | DHCP server/client/relay, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP/RSTP |
| 3G/LTE | FDD LTE, TDD LTE, HSPA+, and WCDMA |
| WLAN (AC) | AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), and WLAN security (WEP, WPA, WPA2, key management) |
| WLAN (AP) | AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n/ac), and WLAN user management (Support in AR611W, AR617VW, AR614VW-LTE, AR617VW-LTE4EA, AR611W-LTE6EA) |
| IPv4 unicast routing | Routing policies, static routes, RIP, OSPF, IS-IS, BGP |
| IPv6 unicast routing | Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Basic IPv6 function | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
| IPv6 tunneling | Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP |
| Multicast | IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
| VPN | IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN, VxLAN |
| QoS | DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, WLAN QoS, FR QoS, Smart Application Control (SAC) |
| Security | ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication, portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, URL filtering |
| Management and maintenance | Upgrade management, device management, web-based network management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, Netstream, IP FPM, TCP FPM, TWAMP Light, IP accounting, NQA |
NetEngine AR611-LTE4EA : 1*GE COMBO WAN, 1*LTE，4*GE LAN, 1*USB
