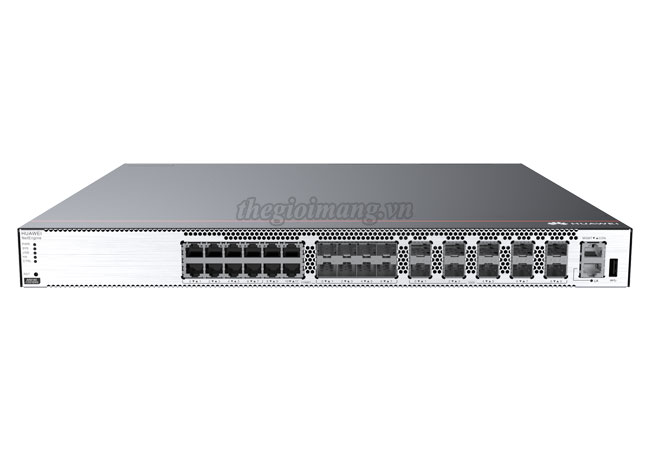

Thiết bị định tuyến Router Huawei NetEngine AR8140-12G10XG
| Model | NetEngine AR8140-12G10XG |
| System parameters | |
| Processor | ARM64 (16-core) |
| SD-WAN service performance (IMIX) | 12Gbps-20Gbps |
| SD-WAN service performance (1400 Bytes) | 25Gbps-36Gbps |
| Fixed WAN ports | 8 x GE combo, 4 x GE electrical, 10 x 10GE optical, ( All WAN ports can be configured as LAN) |
| SIC slots | 4 |
| WSIC slots (default/maximum2) | 0/2 |
| Auxiliary or console port | 1 x RJ45 console port |
| USB port | 1 x USB 3.0 (compatible with USB 2.0) |
| Memory | 16 GB |
| Flash | 4 GB |
| TPM | Not Supported |
| Hot swapping | Supported |
| Dimensions and Weight | |
| Dimensions without mounting brackets (H x W x D) | 44.4 mm x 442.0 mm x 420.0 mm |
| Dimensions with mounting brackets (H x W x D) | 44.4 mm x 442.0 mm x 470.0 mm |
| Packaging dimensions (H x W x D) | 175.0 mm x 550.0 mm x 650.0 mm |
| Weight (unconfigured) | 5.8 kg |
| Rack | IEC |
| Occupied rack space | 1U |
| Power specifications, power consumption, and heat dissipation | |
| Rated input voltage (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz/60 Hz |
| Maximum input voltage (AC) | 90 V to 264 V |
| Maximum input current (AC) | 5.5 A |
| Maximum output power (AC) | 350 W |
| Power supply redundancy | Dual power modules, hot swap |
| Typical power consumption | 168 W |
| Maximum power consumption | 191 W |
| Fan modules | Built-in unpluggable fan modules |
| Airflow | Left to right |
| Noise | 57.6 dB |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | < 5000 m |
| Storage temperature | –40°C to + 70°C |
| Storage altitude | < 5000 m |
NetEngine AR8140-12G10XG : AR8140-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC
