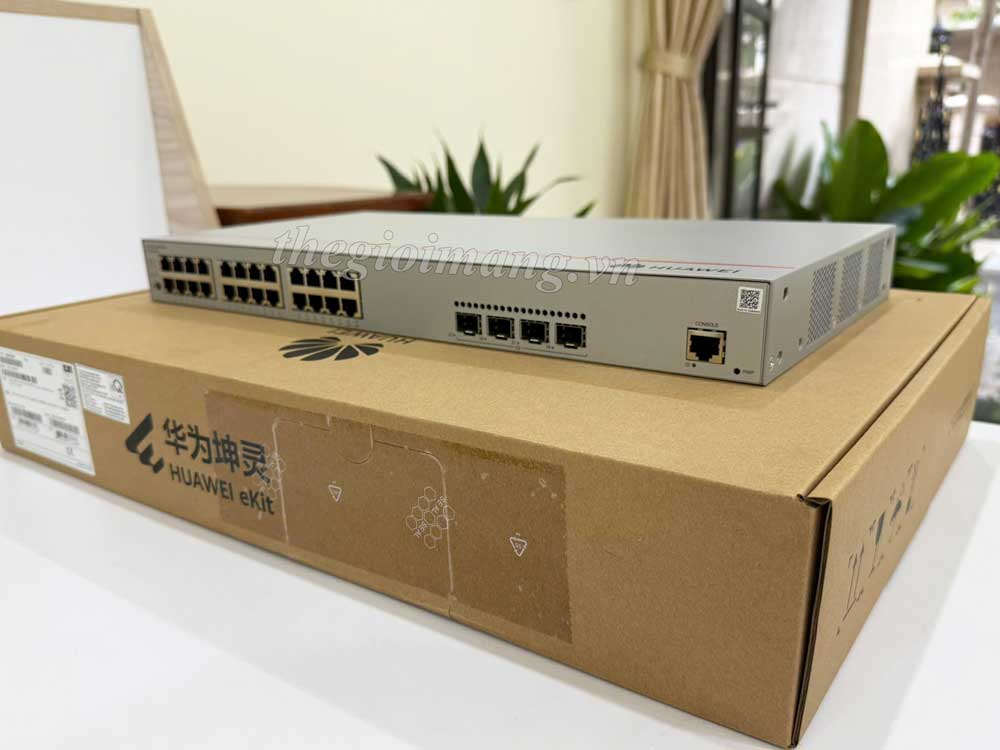

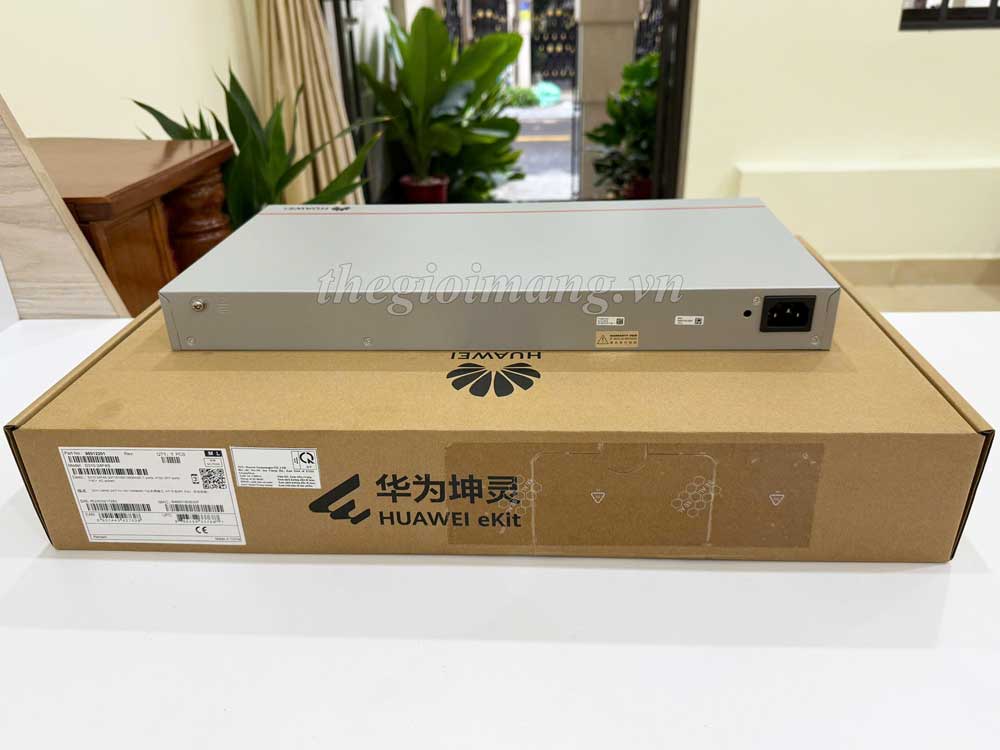

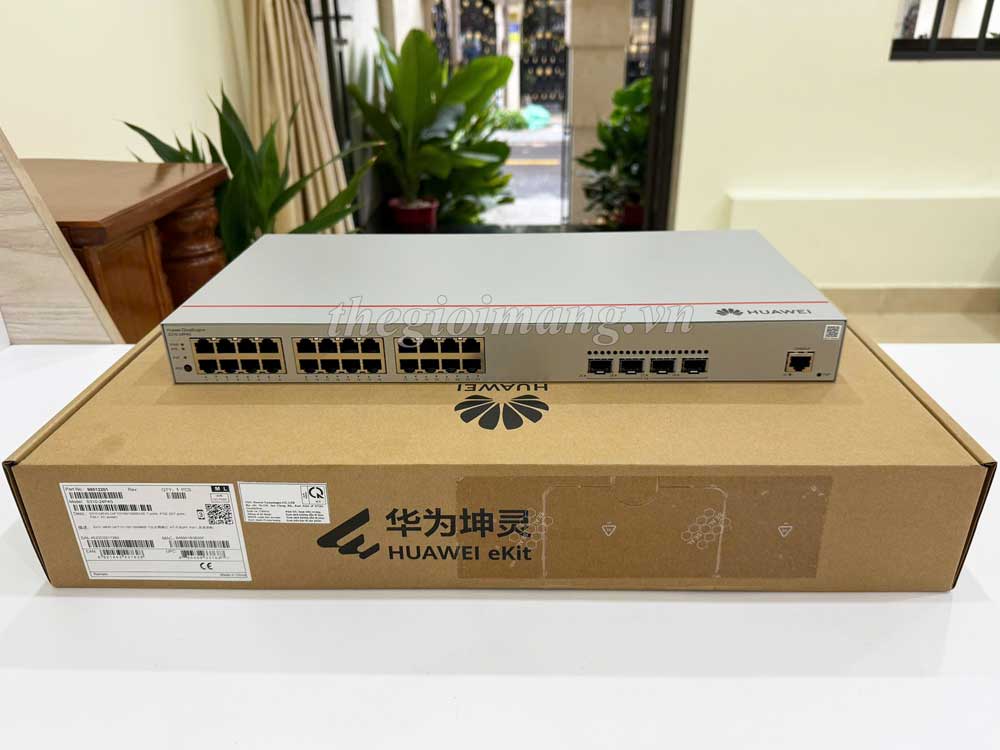

Huawei S310-24T4S

Switch Huawei eKitEngine S310-24T4S Layer 3 24x1GE, 4x1G SFP

  • 24 cổng 10/100/1000Base-T
  • 4 cổng 1G SFP
  • Năng lực chuyển mạch: 56 Gbps
  • Khả năng chuyển tiếp gói: 42 Mpps
  • Nguồn AC tích hợp
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Huawei S310-24T4S là Bộ chuyển mạch dòng Huawei eKitEngine S310 dựa trên phần cứng tiên tiến và phần mềm nền tảng định tuyến đa năng (VRP) của Huawei, S300 hỗ trợ Energy Efficient Ethernet (EEE) và iStack. eKitEngine S310 có thể được sử dụng trong nhiều mô hình mạng doanh nghiệp khác nhau.

Đặc điểm nổi bật của Huawei eKitEngine S310

  • Hỗ trợ Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), và Multiple Spanning Tree Protocol (MSTP), ngoài ra các Switch dòng eKitEngine S310 cũng hỗ trợ Ethernet Ring Protection Switching (ERPS) và tính năng Smart Link của Huawei.
  • Các thiết bị chuyển mạch dòng eKitEngine S310 có thể được quản lý và bảo trì bằng SNMPv1, SNMPv2c, SNMPv3, CLI, web, hoặc SSHv2.0.
  • Hỗ trợ iStack, nhiều Switch có thể được Stack vào một switch ảo.
  • Hỗ trợ các model có PoE với tính năng Perpetual PoE, cho phép cấp nguồn PoE liên tục ngay cả khi Switch khởi động lại.
  • Ứng dụng Huawei eKit cho phép người dùng cấu hình, giám sát và kiểm tra các thiết bị chuyển mạch trên đám mây, giảm việc triển khai tại chỗ và chi phí nhân lực.

Thông số kỹ thuật

Model eKitEngine S310-24T4S
Switching capacity • 56 Gbps
Packet forwarding • 42 Mpps
Fixed port • 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports
Chassis dimensions (H x W x D) • 43.6 mm x 442 mm x 220 mm
Chassis height • 1 U
Weight in full configuration
(including packaging materials)
• 3.44 kg
Power module type • Built-in AC power module
Rated voltage • 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum power consumption • 34.04 W
Noise • Sound power at normal temperature: 47 dB (A)
• Sound power at high temperature: 51 dB (A)
• Sound pressure at normal temperature: 35 dB (A)
Long-term operating temperature • –5°C to +50°C (0 m to 1800 m)
• When the altitude ranges between 1800 m and 5000 m, the operating
temperature reduces by 1°C each time the altitude increases by 220 m.
Storage temperature • –40°C to +70°C
Relative humidity • 5% to 95% (non-condensing)
Power port surge protection • Differential mode: ±6 kV
• Common mode: ±6 kV
Heat dissipation mode • Air cooling, intelligent fan speed adjustment
Service Features
MAC address table • Automatic MAC address learning and aging
• 16K MAC address entries at maximum
• Static, dynamic, and blackhole MAC address entries
• Source MAC address filtering
• Limitation on the number of MAC addresses learned by an interface
VLAN features • 4094 VLANs
• Voice VLAN
• MUX VLAN
• VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
• VLAN stacking
Ethernet switching • Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protective switchover
• G.8032 Ethernet Ring Protection Switching (ERPS)
• STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
• BPDU protection, root protection, and loop protection
• BPDU tunnel
IP routing • Static routing and policy-based routing (PBR)
• 512 FIBv4 entries at maximum
• 512 FIBv6 entries at maximum
