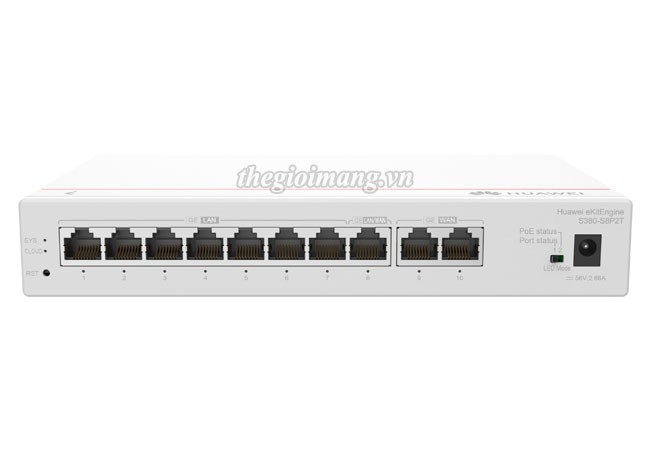

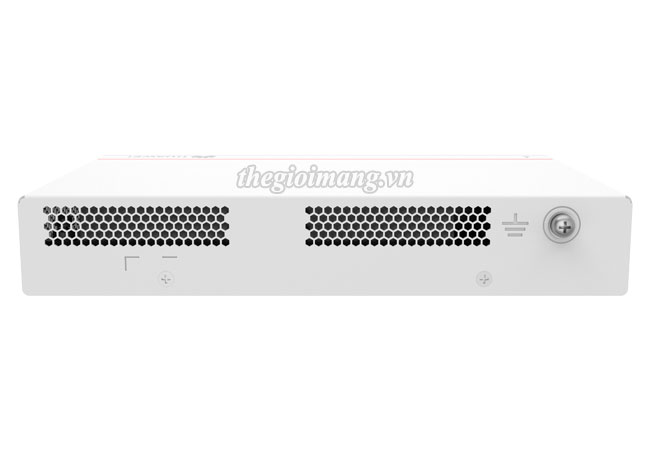

Huawei eKitEngine S380-S8P2T Multi-Service Gateway :
Thiết bị định tuyến Router Huawei eKitEngine S380-S8P2T
| Model | S380-S8P2T |
| Maximum user | • 250 |
| Switching capacity | • 16 Gbit/s |
| Packet forwarding rate | • Upload:500 Kpps, download:420 Kpps |
| Egress bandwidth | • 2 Gbit/s |
| Fixed WAN port | • 2 x 10/100/1000BASE-T ports |
| Fixed LAN port | • 8 x 10/100/1000BASE-T ports |
| MAC address entry | • 2K |
| Number of managed APs | • 64 |
| Dimensions without packaging (H x W x D) | • 35 mm x 210 mm x 130 mm |
| Chassis height | • 1 U |
| Weight without packaging [kg] | • 1.5 kg |
| Power module type | • Power adapter |
| Rated input voltage | • AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range | • AC input: 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| Maximum power consumption | • Without PoE: 21.8 W • With PoE: 145.8 W (PoE: 124 W) |
| Long-term operating temperature [°C] | • 0°C to 40°C at an altitude of 0-1800 m |
| Storage temperature | • –40°C to +70°C |
| Relative humidity | • 5% to 95% (non-condensing) |
| Heat dissipation mode | • Natural heat dissipation |
