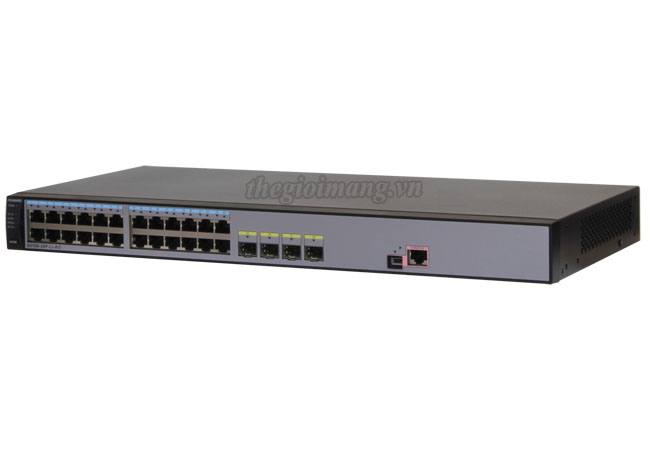

Thiết bị Switch Huawei S5700-28P-LI-AC
|
Product |
S5700-28P-LI-AC |
|
Fixed Ports |
24 x 10/100/1000 Base-T Ethernet ports, 4 x GE SFP ports |
|
Forwarding Performance |
42 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
MAC Address Table |
16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting |
|
VLAN Features |
4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping |
|
Jumbo frame |
10K |
|
IP Routing |
Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng) |
|
IPv6 Features |
Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLD v1/v2 snooping |
|
Multicast |
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics |
|
QoS/ACL |
Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces |
|
Access Security |
DHCP relay, DHCP server, DHCP snooping, and DHCP security |
|
Lightning Protection |
Service interface: 6 kV |
|
Super Virtual Fabric (SVF) |
Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client |
|
Interoperability |
Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP) |
|
Operating Environment |
Long-term operating temperature: 0°C to 50°C Relative humidity: 5% to 95% (non-condensing) |
|
Input Voltage |
AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz, Maximum voltage range: 90V to 264V, 47 Hz/63 Hz |
|

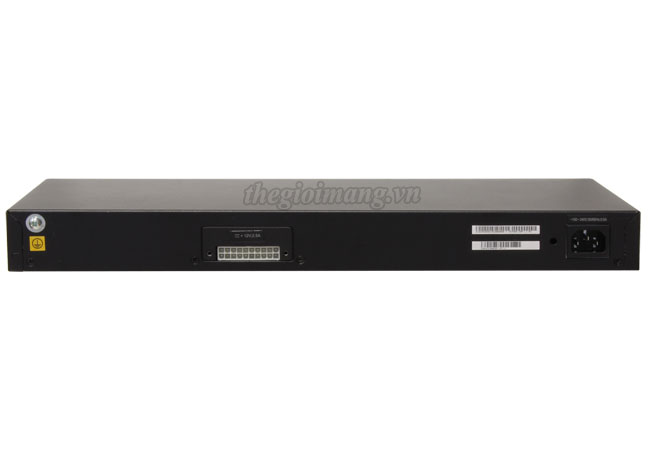

Power Socket Position |
rear power sockets |
|
Battery |
One slot for lead-acid battery charger module (supported by battery LAN switches) |
|
Dimensions (W x D x H) |
442 mm x 220 mm x 43.6 mm |
|
Weight |
4.2 kg |
|
Power Consumption |
< 24W |
