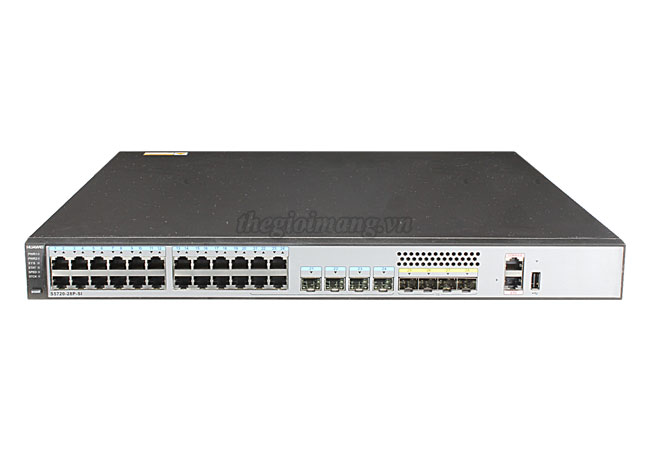

Thiết bị Switch Huawei S5720-28P-SI-AC
| Product Model | S5720-28P-SI-AC |
| Description | 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP Dual pluggable AC or DC power supplies, one AC power supply equipped by default Forwarding performance: 42 Mpps Switching capacity: 336 Gbit/s |
| Dimensions (W x D x H) | 442 mm × 420 mm × 44.4 mm |
| MAC Address Table | 16K IEEE 802.1d compliance 16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| SVF | Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running |
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) |
S5720-28P-SI bundle (24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP, with 60 W AC power supply)
Data sheet Huawei S5720-SI Series Standard Gigabit Ethernet Switches
