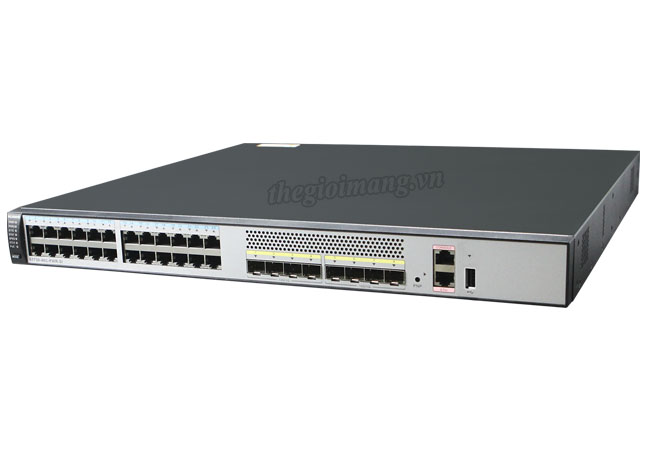

Thiết bị Switch Huawei S5730-48C-PWR-SI-AC
Product |
S5730-48C-PWR-SI-AC |
Ports |
- 24 x Ethernet 10/100/1000 ports - 8 x 10 Gig SFP+ |
Slots |
1 x extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card |
Power Supply |
1 x 500W AC power supply equipped by default |
Forwarding performance |
240 Mpps |
Switching capacity |
680 Gbit/s |
PoE |
Supported |
Memory (RAM) |
1 GB |
Flash |
512 MB |
Service port surge protection |
Common mode: ±7 kV |
Power supply surge protection |
Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
Dimensions (W x D x H) |
442.0 x 420.0 x 44.4 mm |
Weight |
8.3 kg |
Stack ports |
Any 10GE SFP+ or 40GE QSFP+ ports Ports on the 2-port QSFP+ rear stack card |
RTC |
Supported |
RPS |
Not supported |
PoE |
Supported |
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption |
Not providing the PoE function: 83.2 W (without card) 100% PoE loads: 967 W (system power consumption: 227.8 W, PoE: 739.2 W, without card) |
Operating temperature |
0°C to 45°C |
Relative humidity |
5% to 95%, noncondensing |
