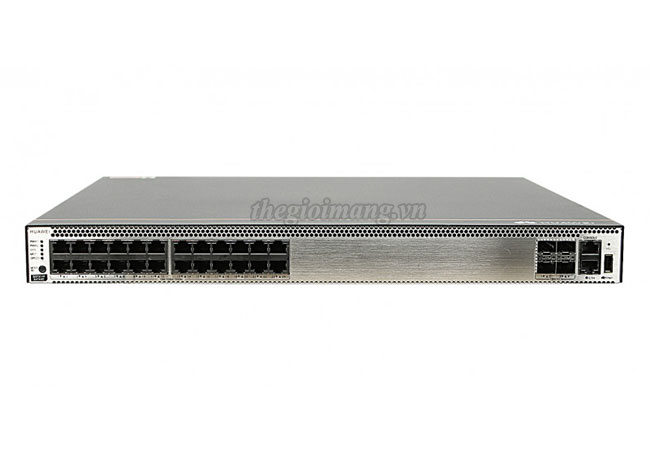

Thiết bị Switch Huawei S5731-H24T4XC
| Product Model | S5731-H24T4XC |
| Description | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports One extended slot 1+1 power backup Switching capacity: 288 Gbps/672 Gbps |
| MAC address table | IEEE 802.1d standards compliance 288K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
| Wireless service | AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
| IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U |
| Chassis weight | 8.4 kg |
| Power supply type | 600 W AC (pluggable) 150 W AC (pluggable) 180 W DC (pluggable) 1000 W DC (pluggable) |
| Rated voltage range | AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (180/1000 W DC): -48 VDC to - 60 V DC |
CloudEngine S5731-H24T4XC (24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, one extended slot, without power module)
Data sheet CloudEngine S5731-H Series Switches
