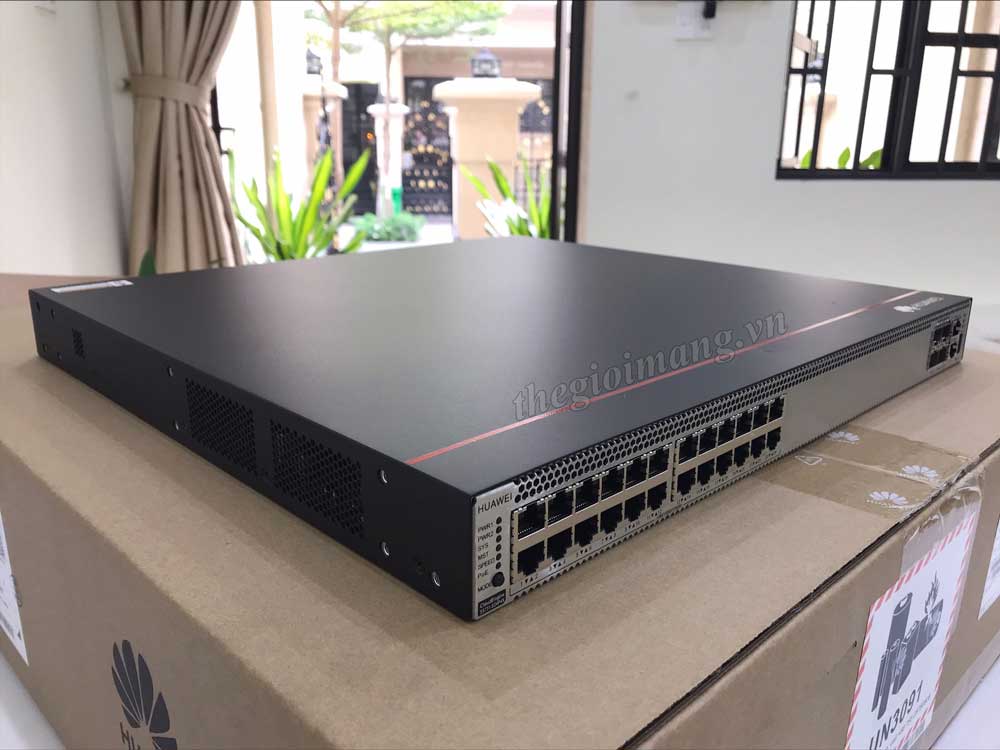

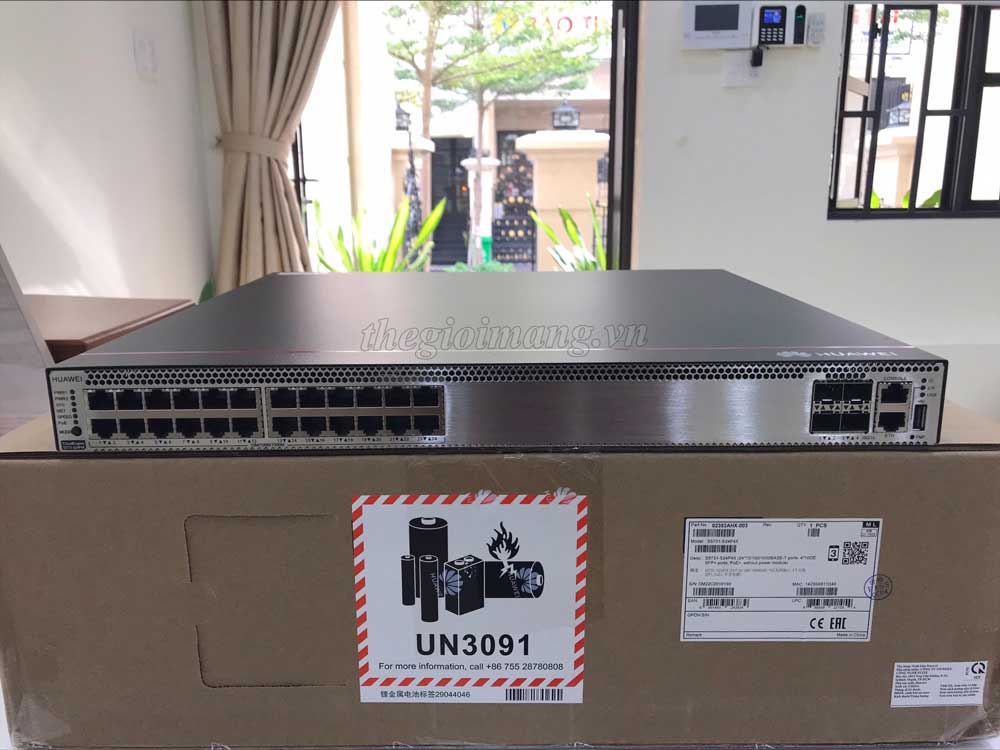

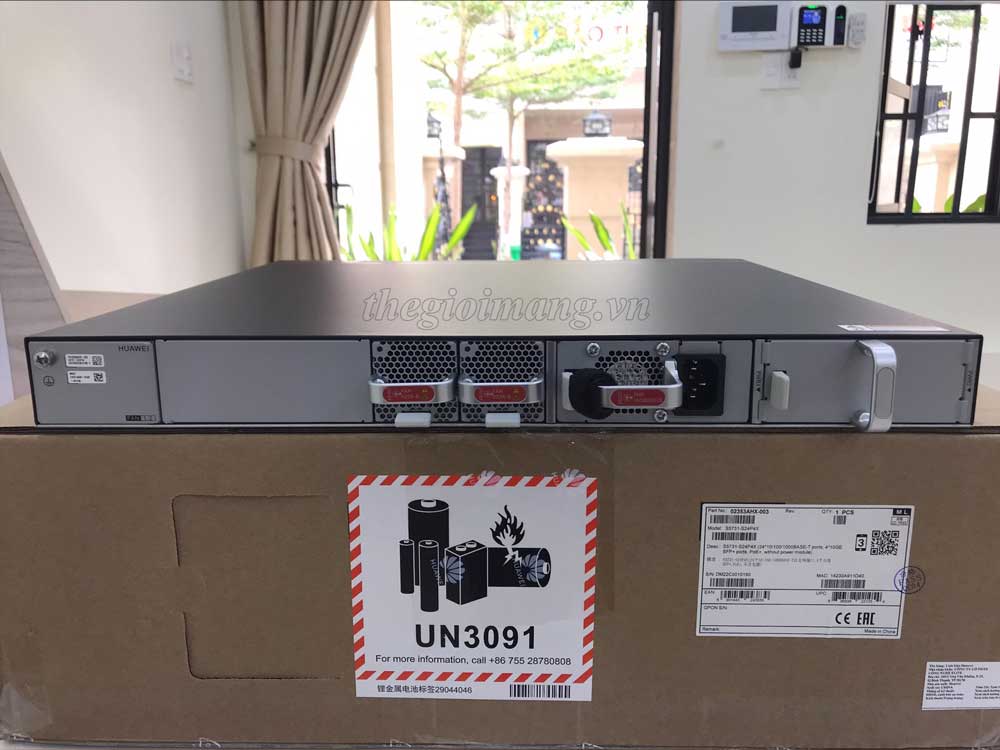

Huawei S5731-S24P4X

Thiết bị chuyển mạch L3 Switch Huawei CloudEngine S5731-S24P4X :

  • 24 x 10/100/1000Base-T Ethernet ports, PoE+
  • 4 x 10GE SFP+ ports
  • 1+1 power backup
  • Forwarding performance: 96 Mpps
  • Switching capacity: 128 Gbps/672 Gbps
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Huawei CloudEngine S5731-S24P4X

Model CloudEngine S5731-S24P4X
Fixed port  24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height  1 U
Chassis weight (including packaging) 8.6 kg
Power supply type  • 1000 W PoE AC (pluggable)
• 1000 W PoE DC (pluggable)
Rated voltage range  • AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
• DC input (1000 W AC PoE): 240 V DC
• DC input (1000 W DC PoE): -48 VDC to -60 V DC
Maximum voltage range • AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
• DC input (1000 W DC PoE): -38.4 V DC to -72V DC
Maximum power consumption • 121 W (without PD)
• 977 W (with PD, PD power consumption of 720 W)
Noise  • Under normal temperature (sound power): 62.3dB (A)
• Under high temperature (sound power): 71.8dB (A)
• Under normal temperature (sound pressure): 52.8dB (A)
Operating temperature  • 0-1800 m altitude: -5°C to +45°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature  -40℃ to +70℃
Relative humidity  5% to 95% (non condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port) • AC power port: ±6 kV in differential mode, ±6 kV in common mode
• DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation  Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

CloudEngine S5731-S24P4X : 24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports,PoE+, without power module

Data sheet Huawei CloudEngine S5731-S Series Switches
