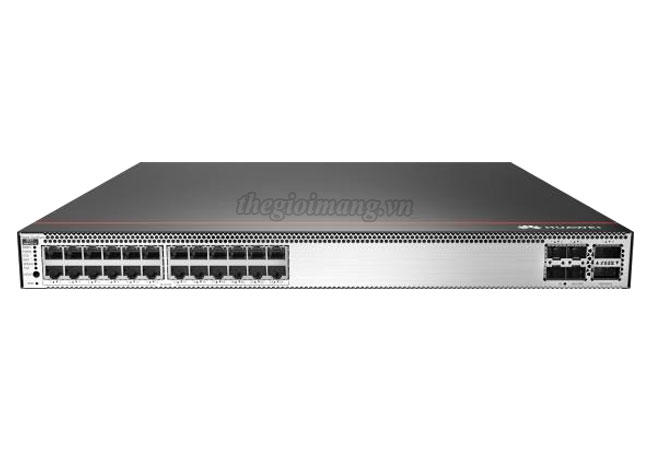

Switch Huawei CloudEngine S5732-H24UM4Y2CZ-TV2 :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5732-H24UM4Y2CZ-TV2
| Model | CloudEngine S5732-H24UM4Y2CZ-TV2 |
| Fixed port | |
| Multi-GE port | 24 |
| 10GE SFP+ port | 4 |
| 25GE SFP28 port | 4 |
| 40GE QSFP+ port | 2 |
| 100GE QSFP28 port | 2 |
| Extended slot | One extended slot, support 8 x 10GE SFP+ cards |
| Management port | |
| ETH port | Supported |
| Console port (RJ45) | Supported |
| USB port | USB 2.0 |
| CPU | |
| Frequency | 1.4 GHz |
| Cores | 4 |
| Storage | |
| Memory (RAM) | 4 GB |
| Flash memory | 2 GB |
| Power supply system | |
| Power supply type | • 600 W PoE AC (pluggable) • 1000 W PoE AC (pluggable) • 1000 W PoE DC (pluggable) |
| Rated voltage range | • AC input (600 W/1000 W PoE AC ): 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input (1000 W PoE DC): -48 VDC to -60 V DC |
| Maximum voltage range | • AC input(600 W/1000 W PoE AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input(1000 W PoE DC): -38.4 V DC to -72 V DC |
| Maximum power consumption(input) | • 241 W (without PD&Card) • 2011 W (with PD, PD power consumption of 1687 W) |
| Power consumption in the case of 30% traffic load | 161W |
| Power consumption in the case of 100% traffic load | 172W |
| Minimum power consumption | 112W |
| Heat dissipation system | |
| Heat dissipation mode | Air-cooled heat dissipation and intelligent fan speed adjustment |
| Number of fan modules | 2 |
| Airflow | Air flows in from the front side and exhausts from the rear panel. |
| Maximum heat dissipation of the device (BTU/hour) | • POE： 6861.73 • non PoE： 822.32 |
| Environment parameters | |
| Long-term operating temperature | • 0-1800 m: 0°C to 45°C • 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5%–95% (non-condensing) |
| Operating altitude | 5000 m |
| Noise under normal temperature (sound power) | • Dual-AC 600 W, 30% load: 49.2 dBA • Dual-AC 1000 W, 30% load: 51.2 dBA • Dual-DC 1000 W, 30% load: 51.2 dBA |
| Noise under high temperature (sound power) | • Dual-AC 600 W, 30% load: 61.4 dBA • Dual-AC 1000 W, 30% load: 63.4 dBA • Dual-DC 1000 W, 30% load: 63.4 dBA |
| Noise under normal temperature (sound pressure) | • Dual-AC 600 W, 30% load: 35.52 dBA • Dual-AC 1000 W, 30% load: 37.52 dBA • Dual-DC 1000 W, 30% load: 37.52 dBA |
| Surge protection specification (service port) | Common mode: ±7 kV |
| Surge protection specification (power port) | • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Reliability | |
| MTBF (year) | 51.4 |
| MTTR (hour) | 2 |
| Availability | > 0.99999 |
| Physical specifications | |
| Dimensions (H x W x D, mm) | 43.6 x 442 x 420 |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.88kg |
S5732-H24UM4Y2CZ-TV2 2.5G Bundle : 24*100M/1G/2.5G Ethernet ports, Optional RTU upgrade to 5/10G, 4*10/25GE SFP28, 2*40/100GE QSFP28 ports, 1*expansion slot, PoE++, HTM, without power module
Data sheet Huawei CloudEngine S5732-H-V2 Series Multi-GE Switches
