Mô tả sản phẩm

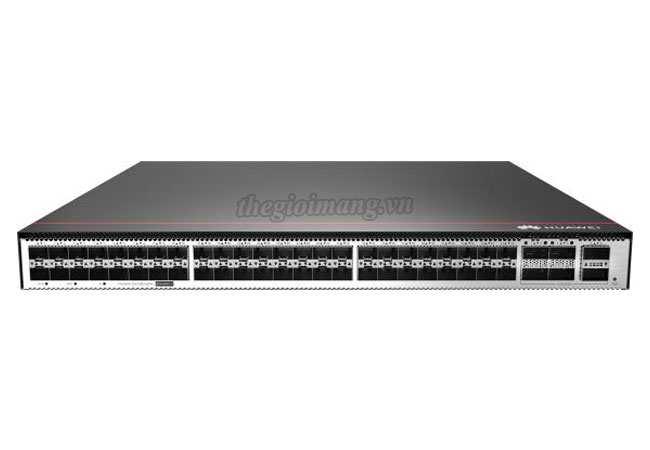

Thiết bị chuyển mạch Switch Huawei CloudEngine S5732-H44S4X6QZ-TV2

Model	CloudEngine S5732-H44S4X6QZ-TV2
Fixed port
GE SFP port	44
10GE SFP+ port	4
40GE QSFP+ port	6
Management port
ETH port	Supported
Console port (RJ45)	Supported
USB port	USB 2.0
CPU
Frequency	1.4 GHz
Cores	4
Storage
Memory (RAM)	4 GB
Flash memory	2 GB
Power supply system
Power supply type	• 600 W AC (pluggable) • 1200 W DC (pluggable)
Rated voltage range	• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1200 W DC): -48 VDC to - 60 V DC
Maximum voltage range	• AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1200 W DC): -38.4 V DC to -72V DC
Maximum power consumption	253 W
Power consumption in the case of 30% traffic load	200 W
Power consumption in the case of 100% traffic load	212 W
Minimum power consumption	151 W
Heat dissipation system
Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules	3
Airflow	Air flows in from the front side and exhausts from the rear panel.
Environment parameters
Long-term operating temperature	• 0-1800 m: -5°C to 45°C • 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Storage temperature	-40°C to +70°C
Relative humidity	5%–95% (non-condensing)
Operating altitude	5000 m
Noise under normal temperature (sound power)	53.4 dB (A)
Noise under high temperature (sound power)	69 dB (A)
Noise under normal temperature (sound pressure)	39.72 dB (A)
Surge protection specification (power port)	• AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode
Reliability
MTBF (year)	48.99
MTTR (hour)	2
Availability	> 0.99999
Physical specifications
Dimensions (H x W x D, mm)	43.6 x 442 x 420
Chassis height	1 U
Chassis weight (including packaging)	7.48 Kg
