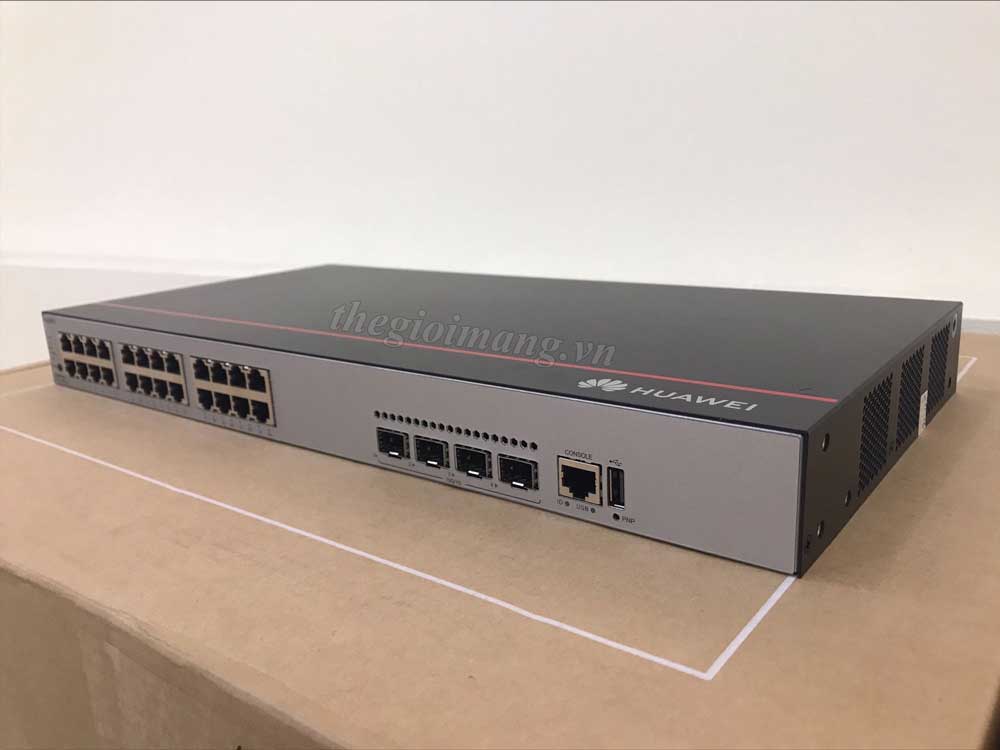

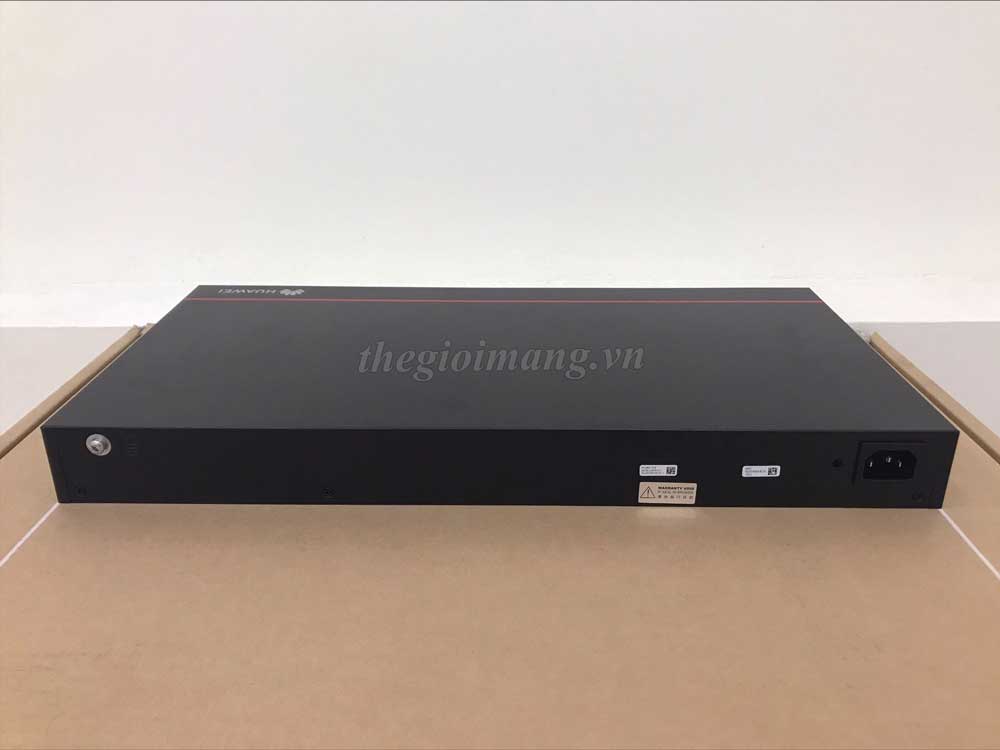

Huawei S5735-L24P4X-A1

Switch Huawei CloudEngine S5735-L24P4X-A1 : ● 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports ● AC power supply ● PoE+ ● Forwarding performance: 96 Mpps ● Switching capacity: 128 Gbps/336 Gbps

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-L24P4X-A1

Model CloudEngine S5735-L24P4X-A1
Fixed port  24 x 10/100/1000Base-T ports(PoE+), 4 x 10 GE SFP+ ports
Dimensions (H x W x D) 43.6 mm x 442 mm x 220 mm
Chassis height  1 U
Chassis weight (including packaging) 3.93 kg
Power supply type  Built-in AC power
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range ● AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
● High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption ● 53.8W(without PD)
● 433.8W(with PD,PD Power consumption of :380W)
Noise  ● Under normal temperature (sound power): 50dB (A)
● Under high temperature (sound power): 73dB (A)
● Under normal temperature (sound pressure): 38.2dB (A)
Long-term operating temperature ● 0-1800 m altitude: - 5°C to +50°C
● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Short-term operating temperature ● 0-1800 m altitude: - 5°C to +55°C
● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity  5% to 95% (non condensing)
Surge protection specification (service port) ±7 kV in common mode
Surge protection specification (power port) ● Differential mode: ± 6 kV
● Common mode: ± 6 kV
Heat dissipation  Air-cooled heat dissipation and intelligent speed adjustment
Physical security  One Kensington lock slot, can be used to lock the device to mounting bracket

S5735-L24P4X-A1 : CloudEngine S5735-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)

Data sheet Huawei CloudEngine S5735-L Series Switches
