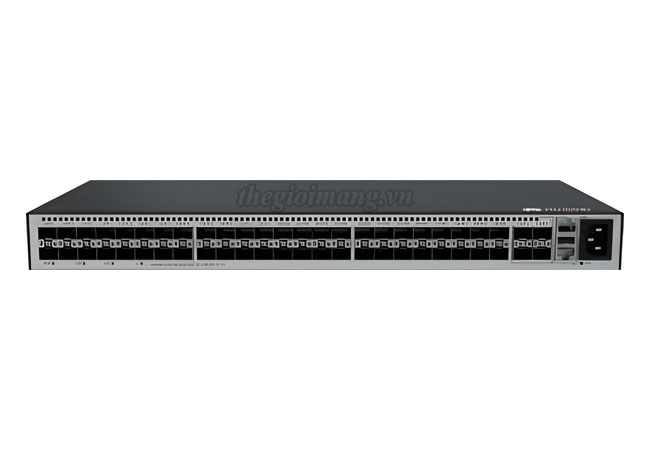

Huawei CloudEngine S5735-L48S4X-A-V2 Optical Switch :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-L48S4X-A-V2
| Model | S5735-L48S4X-A-V2 |
| Physical specifications | |
| Dimensions (H x W x D) | • 43.6 mm x 442 mm x 220 mm |
| Chassis height | • 1 U |
| Chassis weight (including packaging) | • 4.01 kg |
| Fixed port | |
| GE SFP port | • 48 |
| 10GE port | • 4 |
| Management port | |
| Console port (RJ45) | • Supported |
| USB port | • USB 2.0 |
| CPU | |
| Frequency | • 1.1 GHz |
| Core | • 2 |
| Storage | |
| Memory (DRAM) | • 2 GB |
| Flash memory | • 1 GB in total. To view the available flash memory size, run the display |
| Power supply system | |
| Power supply type | • Built-in AC |
| Rated voltage range | • 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current | • 3 A |
| Maximum power consumption of the device | • 72.75 W |
| Power consumption in the case of 30% traffic load | • 64.47 W |
| Power consumption in the case of 100% traffic load | • 65.15 W |
| Power consumption in the case of 0% traffic load | • 55.81 W |
| Heat dissipation system | |
| Heat dissipation mode | • Air-cooled heat dissipation and intelligent speed adjustment |
| Number of fan modules | • 2 |
| Airflow | • Air flows in from the left side and front panel, and exhausts from the right side |
| Maximum heat dissipation of the device (BTU/hour) | • 248.23 |
| Environment parameters | |
| Long-term operating temperature | • 0-1800 m altitude: -5°C to +50°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | • NA |
| Storage temperature | • -40°C to +70°C |
| Relative humidity | • 5%-95%(noncondensing) |
| Operating altitude | • 5000 m |
| Noise under normal temperature (sound power) | • 45.6 dB(A) |
| Noise under high temperature (sound power) | • 58.6 dB(A) |
| Noise under normal temperature (sound pressure) | • 33.6 dB(A) |
| Surge protection specification (RJ45 service port) | • NA |
| Surge protection specification (power port) | • Differential mode: ±6 kV • Common mode: ±6 kV |
| Reliability | |
| MTBF (year) | • 47.14 |
| MTTR (hour) | • 2 |
| Availability | • > 0.99999 |
| Certification | • EMC certification • Safety certification • Manufacturing certification |
CloudEngine S5735-L48S4X-A-V2 : 48*GE SFP ports, 4*10GE SFP+ ports, AC power, front access
Data sheet CloudEngine S5735-L-V2 Series All-Optical Switches
