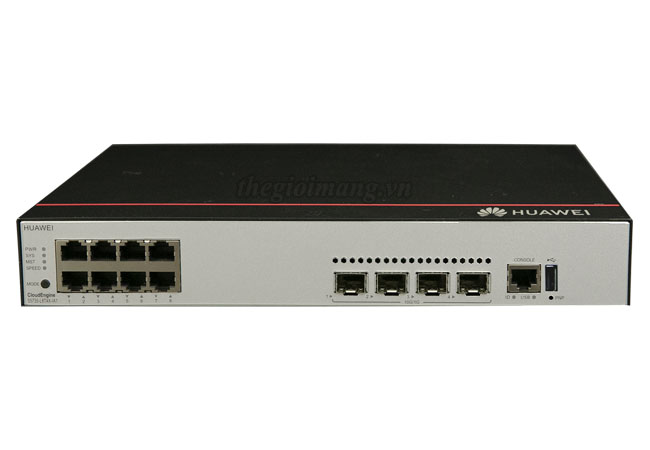

Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-L8P4X-IA1
| Model | CloudEngine S5735-L8P4X-A1 |
| Fixed port | 8 x 10/100/1000Base-T ports(PoE+), 4 x 10 GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 300 mm x 220 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 3.04 kg |
| Power supply type | Built-in AC power |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 45 Hz to 65 Hz |
| Maximum power consumption | ● 33 W (without PD) ● 178 W (with PD, PD power consumption of 124 W) |
| Noise | Under normal temperature (sound power): 42.2dB (A) |
| Long-term operating temperature | -40°C to +65°C NOTE :1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | -40℃～+70℃ NOTE : The device supports short-term operation when the temperature exceeds the normal operating range of 65°C. |
| Storage temperature | -40°C to +75°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (service port) | ±10 kV in common mode |
| Surge protection specification (power port) | ● Differential mode: ± 6 kV ● Common mode: ± 6 kV |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
S5735-L8P4X-IA1 : CloudEngine S5735-L8P4X-IA1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
Data sheet CloudEngine S5735-L-I Series Extended-Temperature Switches
