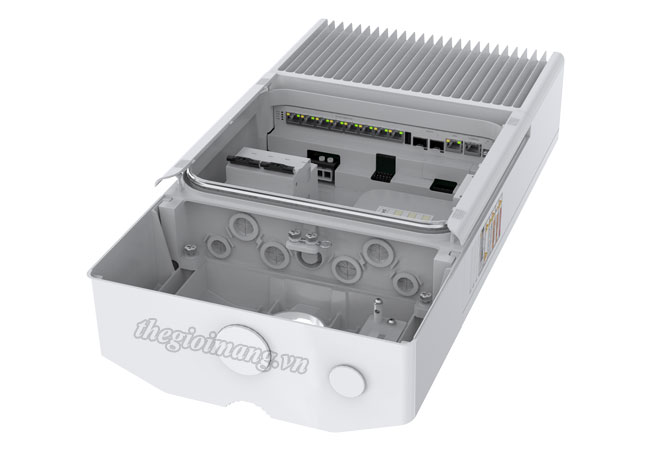

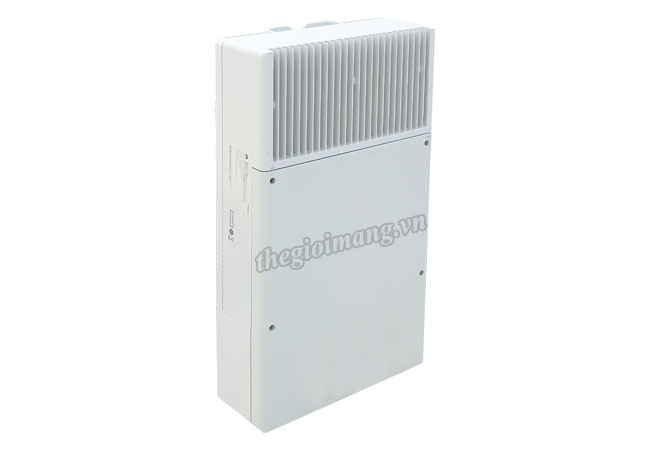

Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-S8P2X-IA200G1
| Model | CloudEngine S5735-S8P2X-IA200G1 |
| Fixed port | 8 x 10/100/1000Base-T ports and 2 x 10G SFP+ ports |
| Management port | Ethernet management port, console port (RJ45), and USB 2.0 port |
| PoE | • 8 PoE+ ports, each providing up to 30 W power • 802.3af/802.3at standards compliance • Maximum total PoE output power: 160 W |
| Dimensions (H x W x D) | 550 mm x 300 mm x 135 mm |
| Net weight | 9.2kg |
| Rated voltage range | 220 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 176 V AC to 264 V AC, 45 Hz to 66 Hz |
| Maximum power consumption (100% throughput) | • No power output: 34 W • 100% power output: 209 W (system power consumption: 49 W; power output: 160 W) |
| Typical power consumption (30% of traffic load, without PoE power output) | 31 W |
| Power output | • Maximum total output power of 12 V DC + 24 V AC + PoE: 160 W • 12 V DC (five outputs): 72 W in total, with a maximum of 72 W for each output • 24 V AC (two outputs): 72 W in total, with a maximum of 72 W for each output • Eight PoE ports provide a maximum of 160 W power • 220 V AC (Optional) |
| Fiber splice tray | Built-in(Optional) |
| Protection rating | IP55 |
| Operating temperature | -40℃ to +75℃ NOTE –25ºC to +75ºC : sunshade needed; 400 LFM air velocity (minimum); GPON optical modules not supported –25ºC to +70ºC : sunshade needed; 200 LFM air velocity (minimum); GPON optical modules supported –30ºC to +60ºC : sunshade needed; 40 LFM air velocity (minimum); GPON optical modules supported –35ºC to +55ºC : sunshade needed; no requirement on the air velocity; GPON optical modules supported –35ºC to +45ºC : 1120 W/m2 solar radiation (maximum); no requirement on the air velocity –40ºC to –35ºC : At least four Ethernet electrical ports must be working. When the altitude is 1800-4000 m , the highest operating temperature reduces by 1°C every time the altitude increases by 220 m. |
| Power supply surge protection | Surge current: • AC input: 20 kA Surge: • AC input: ±6 kV in differential mode; ±6 kV in common mode • 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode • 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode |
| Service port surge protection | ±1.5 kV in differential mode, ±6 kV in common mode |
| Salt spray protection | Supported, allowing the switch to be installed in areas more than 500 meters away from the sea |
| Operating altitude | 0-4000 m |
| Heat dissipation | Natural heat dissipation |
| Installation mode | Wall-mounted or pole-mounted |
CloudEngine S5735-S8P2X-IA200G1 : 8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, PoE+, AC power supply
Data sheet CloudEngine S5735-S-IA Series Video Backhaul Switch
