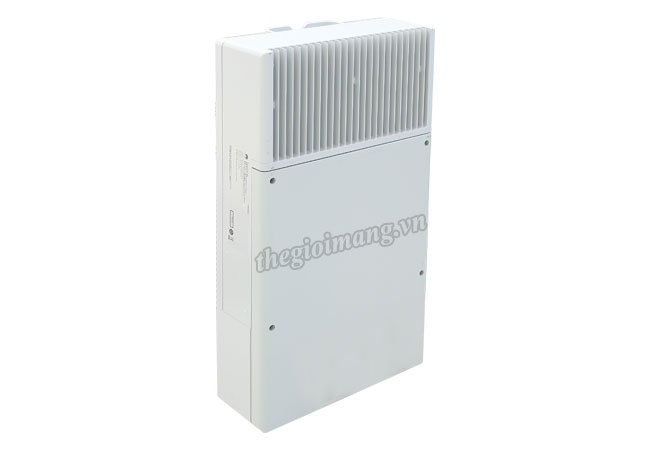

Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-S8P2X-IA200H1
| Model | CloudEngine S5735-S8P2X-IA200H1 |
| Fixed port | 8 x 10/100/1000BASE-T PoE+ ports and 2 x 10GE SFP+ ports |
| Management port | Ethernet management port, console port (RJ45), and USB 2.0 port |
| PoE | • 8 PoE+ ports, each providing up to 30 W power • 802.3af/802.3at standards compliance • Maximum total PoE output power: 200 W |
| Dimensions (H x W x D) | 570mm x 300mm×150mm |
| Net weight | 14.5 kg |
| Mains input | |
| Rated voltage range | 220 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 85 V AC to 290 V AC, 45 Hz to 66 Hz |
| Surge protection | Surge current: • AC input: 20 kA in differential mode; 20 kA in common mode Surge: • AC input: ±6 kV in differential mode; ±6 kV in common mode |
| Solar power input | |
| Solar input voltage | 36 V to 120 V (typical value: 72 V) |
| Solar input power | 0 W to 1400 W |
| Surge protection | Surge current: • 3 kA in differential mode; 5 kA in common mode Surge: • ±2 kV in differential mode; ±4 kV in common mode |
| Input of stored energy | |
| Type of stored energy | Lithium battery |
| Charging current | Maximum: 20 A |
| Charging voltage | 43.2 V to 56.5 V |
| Input power | • 30–58 V: 500 W • 58–72 V: 1400 W • > 72 V: 1000 W |
| Surge protection | Surge current: • 3 kA in differential mode; 5 kA in common mode Surge: • ±2 kV in differential mode; ±4 kV in common mode |
| Power output | |
| Power output mode | • 12 V DC (two outputs) • 24 V AC (two outputs) • 220 V AC (standard configuration) |
| Output power | • Maximum total output power of 12 V DC + 24 V AC + PoE: 200 W • 12 V DC (two outputs): 72 W in total, with a maximum of 72 W for a single output • 24 V AC (two outputs): 100 W in total, with a maximum of 100 W for a single output • Eight PoE ports: a maximum of 200 W output power |
| Surge protection | • 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode • 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode • Service port: ±1.5 kV in differential mode; ±6 kV in common mode |
| Maximum power consumption (100% throughput) | • No power output: 45 W • 100% power output: 269 W (system power consumption: 69 W; power output: 200 W) |
| Typical power consumption (30% of traffic load, without PoE power output) | 38 W |
| Fiber splice tray | Built-in (standard configuration) |
| Protection rating | IP55 |
| Operating temperature | –40°C to +55°C NOTE –35ºC to +55ºC: sun shield needed; no requirement on the air velocity; GPON optical modules supported –35ºC to +45ºC: 1120 W/m2 solar radiation (maximum); no requirement on the air velocity –40ºC to –35ºC: At least four Ethernet electrical ports must be working. When the altitude is 1800–4000 m, the highest operating temperature reduces by 1°C every time the altitude increases by 220 m. |
| Salt spray protection | Supported, allowing the switch to be installed in areas more than 500 meters away from the sea |
| Operating altitude | -150 m to +5000 m |
| Heat dissipation | Natural heat dissipation |
| Installation mode | Wall-mounted or pole-mounted |
CloudEngine S5735-S8P2X-IA200H1 : 8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, PoE+, AC/PV/battery power supply
Data sheet CloudEngine S5735-S-IA Series Video Backhaul Switch
