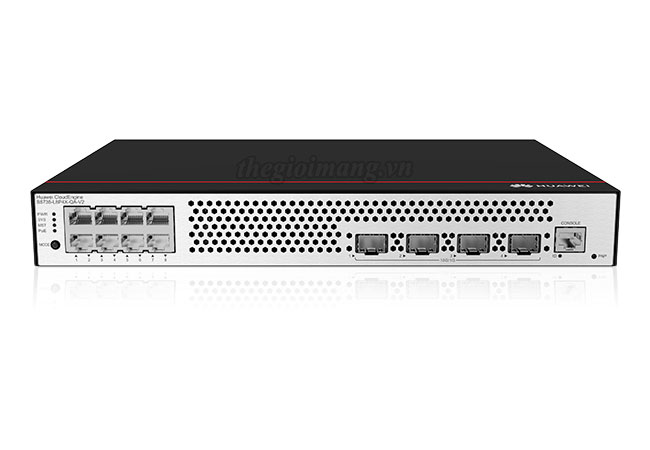

Huawei CloudEngine S5735I-L8P4X-A-V2 Extend-Temperature Switch :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735I-L8P4X-A-V2
| Model | CloudEngine S5735I-L8P4X-A-V2 |
| Fixed port | • 8 x 10/100/1000BASE-T ports (PoE+), 4 x 10GE SFP+ ports |
| MAC Features | • MAC address auto-learning and aging • Static, dynamic, and blackhole MAC address entries • Packet filtering based on source MAC addresses • Interface-based MAC address learning limiting |
| VLAN Features | • 4094 VLANs • Voice VLAN • MUX VLAN • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| IP Routing | • Static route, RIPv1/v2, RIPng, OSPF, OSPFv3 |
| Dimensions (H x W x D) | • 43.6mm x 320mm × 210mm |
| Chassis height | • 1 U |
| Chassis weight (including packaging) | • 3.06 kg |
| Power supply type | • Built-in AC power |
| Rated input voltage | • 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum power consumption | • 29.78 W (without PD) • 169.97 W (with PD, PD power consumption of 125 W) |
| Noise | • Under normal temperature (sound power): 37.9dB (A) • Under high temperature (sound power): 66.2dB (A) • Under normal temperature (sound pressure): 38.0dB (A) |
| Long-term operating temperature | • –40°C to +65°C at an altitude of 0–1800 m, mapping industrial optical modules |
| Storage temperature | • -40°C to +70°C |
| Relative humidity | • 5% to 95% (non-condensing) |
| Surge protection specification (service port) | • ±7 kV in common mode |
| Surge protection specification (power port) | • Differential mode: ± 6 kV • Common mode: ± 6 kV |
| Heat dissipation | • Air cooling for heat dissipation, intelligent fan speed adjustment |
CloudEngine S5735I-L8P4X-A-V2 : 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power.
Data sheet Huawei CloudEngine S5735I-L-V2 Series Extend-Temperature Switches
