Mô tả sản phẩm

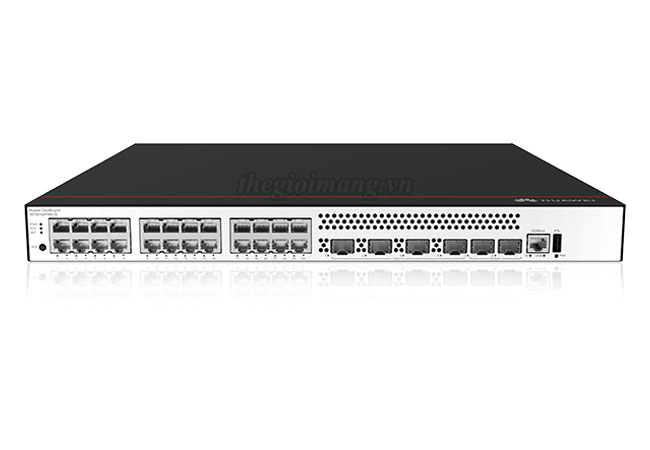

Thiết bị chuyển mạch Switch Huawei CloudEngine S5735I-S24T4XE-V2

Model	CloudEngine S5735I-S24T4XE-V2
Fixed port	24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 stack ports
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm
Weight (with packaging)	11.34 kg
Power supply type	• 180W AC • 1200W DC
Rated voltage range	• AC input: 100 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input: -48 V DC to -60 V DC
Maximum voltage range	• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	• 53 W (2 180W AC) • 87 W (2 1200W DC)
Operating temperature	–40°C to +65°C (-40°F to 149°F) at an altitude of 0–1800 m (0–5906 ft.), mapping industrial optical modules
Storage temperature	-40°C to +75°C
Power supply surge protection	• AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode
Service port surge protection	±7 kV in common mode
Noise under normal temperature (27°C, sound power)	• Under normal temperature (sound power): 51.5 dB(A) • Under high temperature (sound power): 55.5 dB(A) • Under normal temperature (sound pressure): 39.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Heat dissipation	Air-cooled heat dissipation and intelligent speed adjustment
