Switch Huawei CloudEngine S5736-S24UM4XC : ● 24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10GE SFP+ ports ● One extended slot ● PoE++ ● 1+1 power backup ● Forwarding performance: 480 Mpps ● Switching capacity*: 880 Gbps/2.72 Tbps

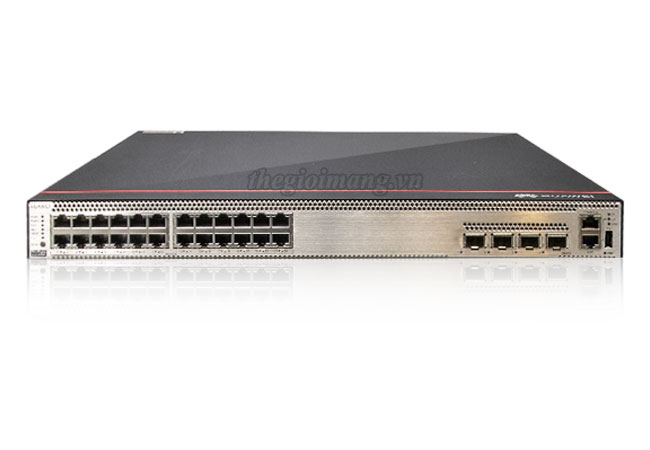

Thiết bị Switch Huawei S5736-S24UM4XC
| Model | CloudEngine S5736-S24UM4XC |
| Fixed port | 24×100M/1G/2.5G/5G/10GBase-T Ethernet ports, 4 x 10GE SFP+ ports |
| Extended slot | One extended slot, support 2*25GE SFP28 or 8 x 10GE SFP+, 4 x 40GE QSFP+ cards |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1U |
| Chassis weight (full configuration weight) | 9.7 kg |
| Power supply type | 1000 W PoE AC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input (1000 W AC PoE): 240 V DC |
| Maximum voltage range | AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
| Maximum power consumption | 176W (without PD) 1967W (with PD, PD power consumption of 1791 W) |
| Noise | Under normal temperature (sound power): 70.1dB(A) Under high temperature (sound power): 82.6dB(A) Under normal temperature (sound pressure): 58.1dB(A) |
| Operating temperature | 0-1800 m altitude: -5°C to 45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C～70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (power port) | Differential mode: ±6 kV Common mode: ±6 kV |
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
S5736-S24UM4XC Base(24*100M/1G Ethernet ports,Optional RTU upgrade to 2.5/5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module)
Data sheet Huawei CloudEngine S5736-S Series Multi-GE Switches
