Huawei CloudEngine S5755-H24UN4Y2CZ High-Quality 2.5GE Switch :

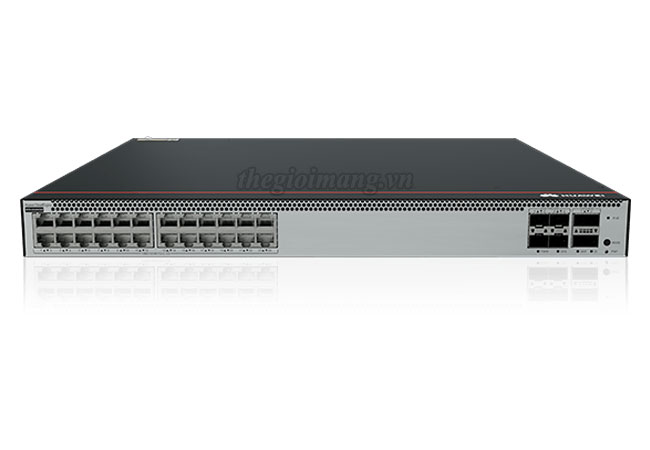

Thiết bị chuyển mạch Switch Huawei CloudEngine S5755-H24UN4Y2CZ
| Model | CloudEngine S5755-H24UN4Y2CZ |
| Fixed port | • 24 × 100M/1/2.5G Base-T Ethernet ports, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports |
| Extended slot | • One extended slot |
| Dimensions (H x W x D) | • 43.6 mm x 442 mm x 420 mm |
| Chassis height | • 1U |
| Chassis weight (full configuration weight) | • 9.74kg |
| Power supply type | • 600 W PoE AC (pluggable) • 1000 W PoE AC (pluggable) • 1000 W PoE DC (pluggable) |
| Rated voltage range | • AC input : 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input : -48 VDC to -60 V DC |
| Maximum voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (input) | • 173 W (without PD&Card); • 2333 W (with PD, PD powerconsumption of 2160 W) |
| Operating temperature | • 0-1800 m altitude: -5°C to 45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | • -40°C～70°C |
| Relative humidity | • 5% to 95% (non-condensing) |
| Surge protection specification (power port) | • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | • Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
S5755-H24UN4Y2CZ : 24*100M/1/2.5G Ethernet ports, 4*25G SFP28 ports, 2*100G QSFP28 ports, 1*expansion slot, PoE++, without power module
Data sheet Huawei CloudEngine S5755-H Series High-Quality 2.5GE Switches
