Mô tả sản phẩm

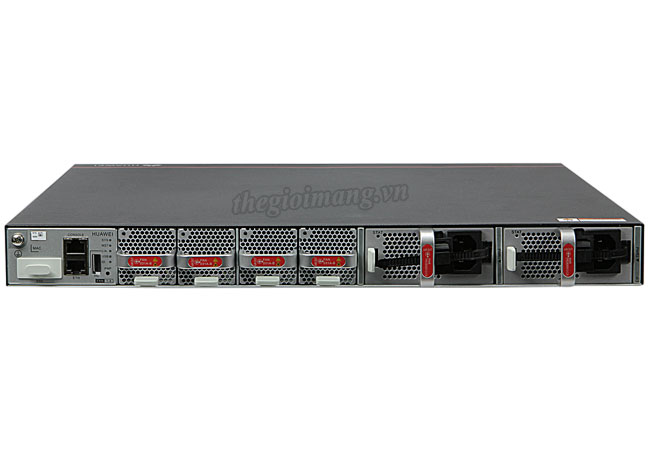

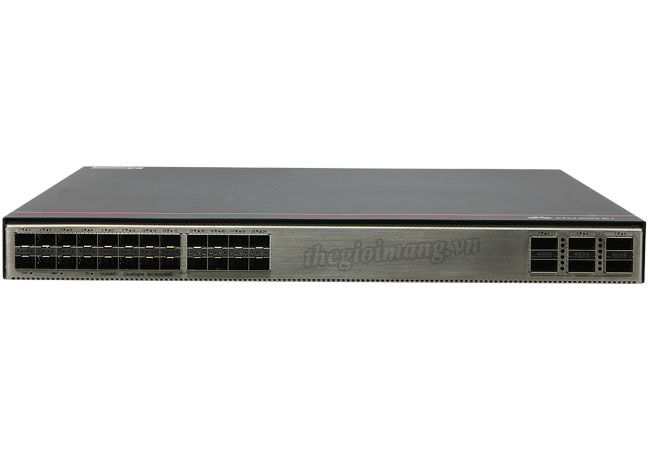

Thiết bị Switch Huawei S6730-H24X6C

Product	CloudEngine S6730-H24X6C
Switching Capacity	1.68Tbps/2.4Tbps
Fixed Ports	- 24 × 10 Gig SFP+ ports - 6 x 40/100 Gig QSFP28 ports
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF)	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP)
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Input voltage	AC Power Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 290V AC; 45–65 Hz
Maximum power consumption	231W
Operating temperature	0–1800 m altitude: -5°C to 45°C 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Surge protection specification	AC power interface: differential mode: ±6kV: common mode: ±6kV
Power supply type	600W AC Power
Fans	4, Fan modules are pluggable
L-100GEUPG-S67H	CloudEngine S6730-H Series, 40GE to 100GE Electronic RTU License，Per Device
